VBsemi ElecDatasheet (PDF)

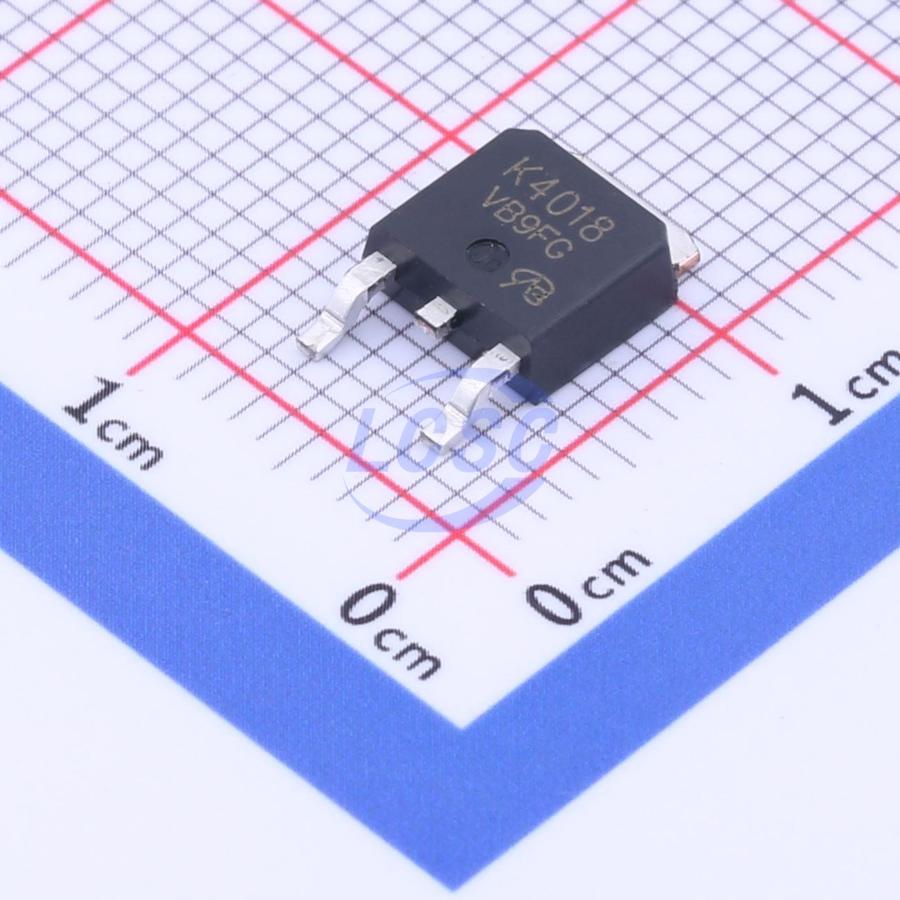

K4018-VB
N-Channel 100V 25A 83W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 25A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- K4018-VB
- Store part #
- C2680739
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C2680739
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.42 | ₹92.42 |
| 10+ | ₹75.20 | ₹752.00 |
| 30+ | ₹66.39 | ₹1,991.70 |
| 100+ | ₹57.78 | ₹5,778.00 |
| 500+ | ₹52.73 | ₹26,365.00 |
| 1,000+ | ₹50.00 | ₹50,000.00 |
1 × ₹92.42
₹92.42
excl. GST
₹109.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
K4018-VB
₹92.42 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 25A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 83W
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 55mΩ@10V;57mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 21nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.898 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- 100% tested for unclamped inductive switching (UIS)
- RoHS compliant
