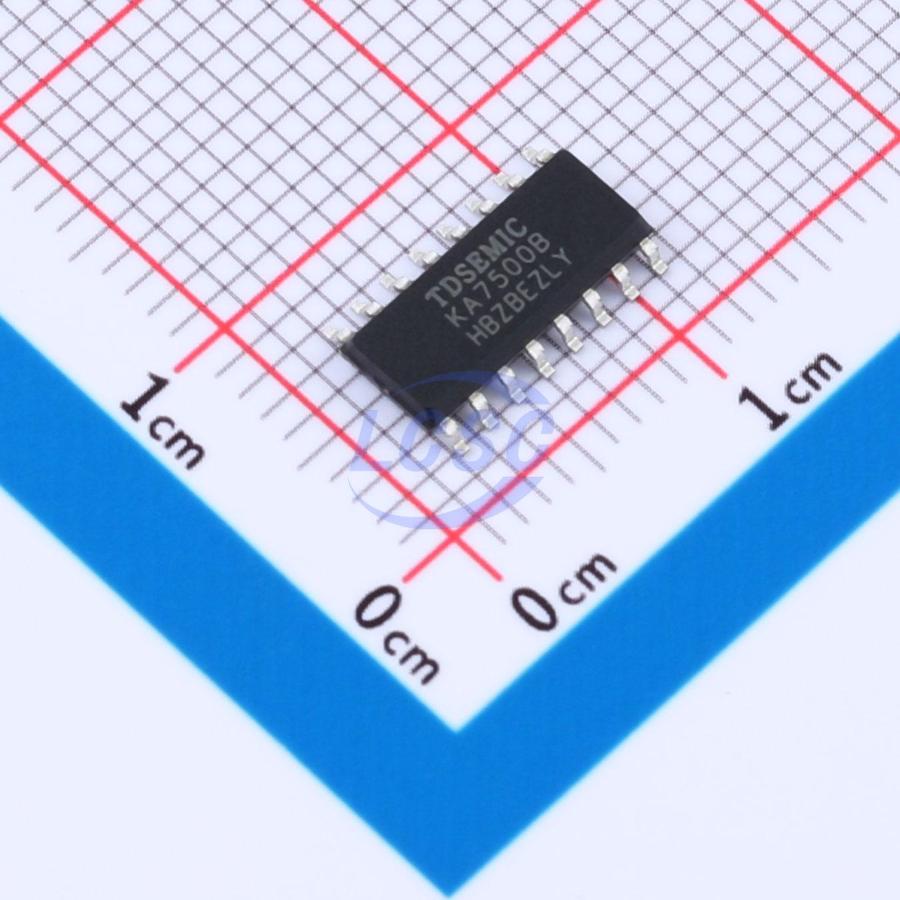

TDSEMIC

KA7500B-TD

1kHz~300kHz 4.75V~5.25V 200mA SOP-16 Voltage Regulators - DC DC Switching Regulators

SOP-16RoHSActive

Manufacturer: TDSEMIC
Manufacturer part #: KA7500B-TD
Store part #: C53202422
Package / case: SOP-16
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,495 in stock

#C53202422

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹18.61	₹93.05
50+	₹14.75	₹737.50
150+	₹12.83	₹1,924.50
500+	₹11.38	₹5,690.00
2,500+	₹10.23	₹25,575.00
4,000+	₹9.64	₹38,560.00

Quantity (min 5, multiples of 5)

5 × ₹18.61

₹93.05

excl. GST

₹109.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

KA7500B-TD

₹93.05 for 5 + GST

Specifications

Operating Temperature: -25℃~+85℃
Number of Outputs: 2
Frequency - Switching: 1kHz~300kHz
Features: Frequency synchronization
Topology: Push-Pull;Half-Bridge
Operating Voltage: 7V~40V
Switch tube (built-in/external): External
Output Voltage: 4.75V~5.25V
Output Current: 200mA
Quiescent Current: 8mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.283 g

Overview

The KA7500B-TD integrates all the functions required to build a PWM switching circuit. Primarily designed for switching power supply control or DC-DC converters, it provides system engineers with the flexibility to customize the control circuit for their specific applications.
