XBLWDatasheet (PDF)

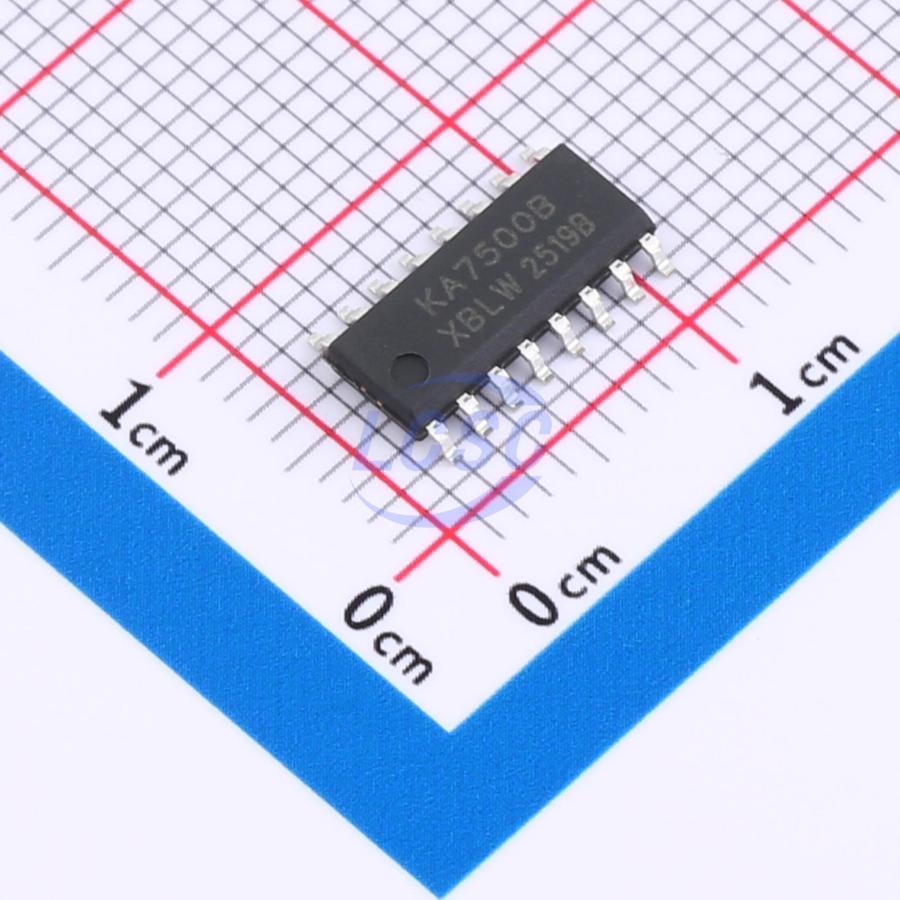

KA7500BDTR(XBLW)
Switching Regulator IC Adjustable 30V 2 Output 200mA SOP-16
SOP-16ROHS CompliantActive
IC REG ADJ 200mA SOP-16
- Manufacturer
- XBLW
- Manufacturer part #
- KA7500BDTR(XBLW)
- Store part #
- C48971045
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,150 in stock
#C48971045
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.01 | ₹85.05 |
| 50+ | ₹13.52 | ₹676.00 |
| 150+ | ₹11.77 | ₹1,765.50 |
| 500+ | ₹10.45 | ₹5,225.00 |
| 2,500+ | ₹9.41 | ₹23,525.00 |
| 5,000+ | ₹8.88 | ₹44,400.00 |
5 × ₹17.01
₹85.05
excl. GST
₹100.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
KA7500BDTR(XBLW)
₹85.05 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Number of Outputs
- 2
- Frequency - Switching
- 1kHz~200kHz
- Features
- Built-in LDO regulator
- Output Type
- Adjustable
- Topology
- Push-Pull
- Operating Voltage
- 7V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 30V
- Output Current
- 200mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.296 g
Overview
This device is used in control circuits for PWM switching regulators, incorporating a 5V reference voltage circuit, two error amplifiers, a flip-flop, an output control circuit, a PWM comparator, a dead-time comparator, and an oscillator. The device operates at switching frequencies ranging from 1kHz to 200kHz.
Key features
- Complete PWM power control circuit
- On-chip oscillator supports master or slave operating mode
- Dual error amplifiers
- Internal voltage regulator provides stable 5V reference supply
- Uncommitted output capable of sinking or sourcing 200mA
- Adjustable dead time provides control over full range
- Output control selectable for single-ended or push-pull operation
