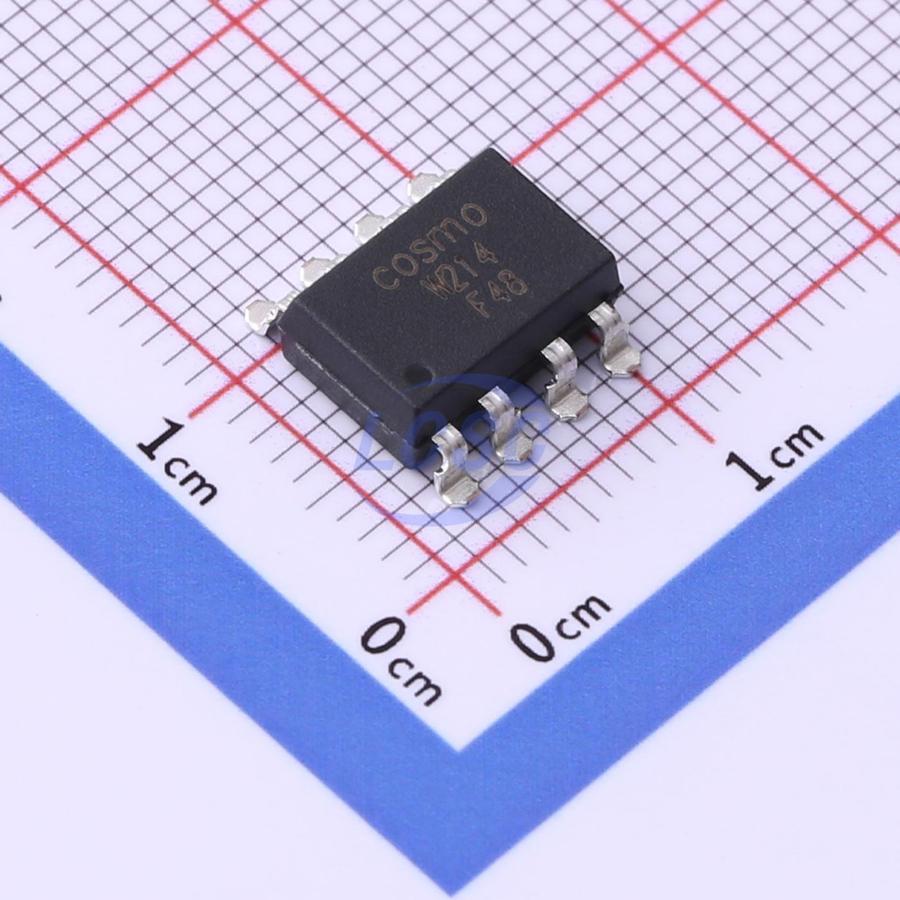

Cosmo

KAQW214A TL

LED Driver IC 2 Output 130mA SMD-8P,9.7x6.5mm

SMD-8P,9.7x6.5mmROHS CompliantActive

IC LED DRIVER 130mA SMD-8P,9.7x6.5mm

Manufacturer: Cosmo
Manufacturer part #: KAQW214A TL
Store part #: C2999772
Package / case: SMD-8P,9.7x6.5mm
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,317 in stock

#C2999772

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
1+	₹241.77	₹241.77
10+	₹206.76	₹2,067.60
30+	₹184.81	₹5,544.30
100+	₹143.49	₹14,349.00
500+	₹133.28	₹66,640.00
1,000+	₹128.93	₹1,28,930.00

Quantity (min 1)

1 × ₹241.77

₹241.77

excl. GST

₹285.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

KAQW214A TL

₹241.77 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating temperature: -40℃~+85℃
Number of Channels: 2
Output Current: 130mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.82 g

Overview

The KAQW214 series contains two normally open switches that can be used as two independent SPST relays or as one DPST relay. The relay is constructed using a GaAlAs LED for actuation control and an integrated monolithic dies for the switch output. The die, fabricated in a high-voltage dielectrically isolated technology, is comprised of a photodiode array, switch control circuitry and MOSFET switches.

Applications

Telecommunications (PC, electronic notepad)
Modem
Telephone equipment
Security equipment
Sensors
Measuring and testing equipment
Factory automation equipment
High speed inspection machines

Key features

Normally open, double pole single throw
Control 400V AC or DC voltage
Switch 130mA loads
Controls low-level analog signals
High sensitivity, low ON resistance
Low-level off-state leakage current
High isolation voltage 5KV (DIP / SMD)
Pb free and RoHS compliant
MSL class 1
Agency Approvals： UL Approved (No. E108430): UL508, C-UL Approved (No. E108430), FIMKO Approved: EN60950
