KECDatasheet (PDF)

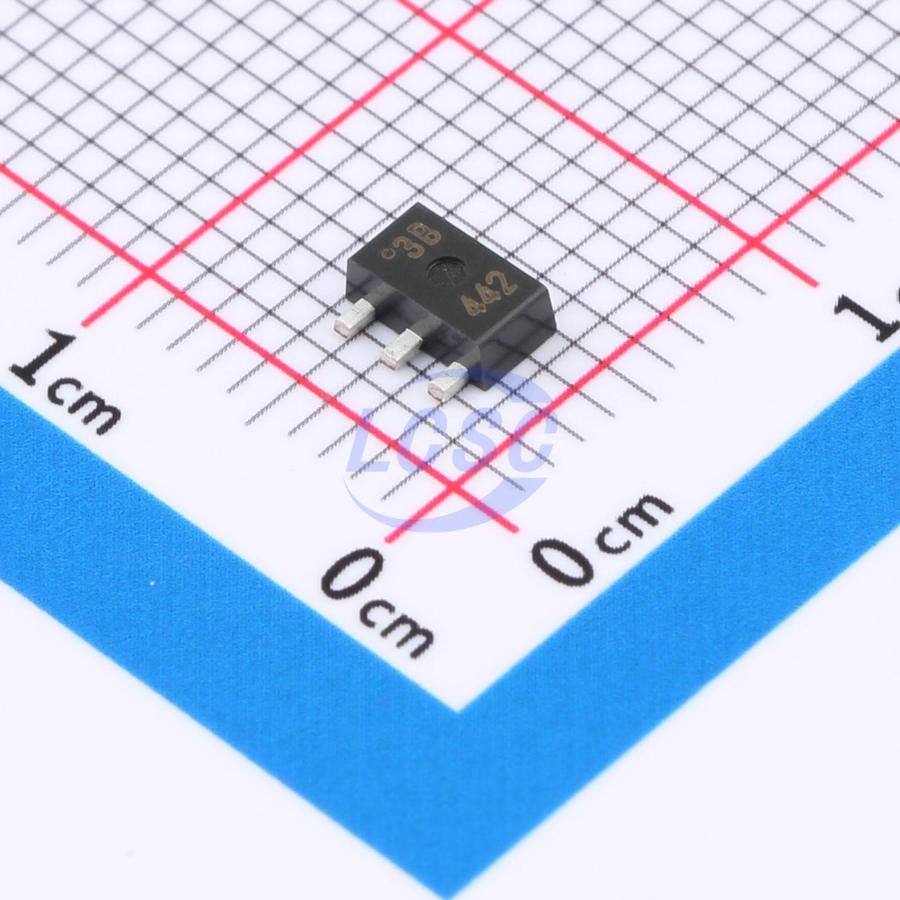

KIA431AF-RTF/PC
2.5V~36V ±1% 37V 100mA Adjustable SOT-89-3 Voltage Reference RoHS
SOT-89-3ROHS CompliantActive
Three-terminal programmable shunt voltage regulator diode
- Manufacturer
- KEC
- Manufacturer part #
- KIA431AF-RTF/PC
- Store part #
- C465009
- Package / case
- SOT-89-3
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,010 in stock
#C465009
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.53 | ₹127.65 |
| 50+ | ₹20.22 | ₹1,011.00 |
| 150+ | ₹17.94 | ₹2,691.00 |
| 1,000+ | ₹13.51 | ₹13,510.00 |
| 2,000+ | ₹12.25 | ₹24,500.00 |
| 5,000+ | ₹11.50 | ₹57,500.00 |
5 × ₹25.53
₹127.65
excl. GST
₹150.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
KIA431AF-RTF/PC
₹127.65 for 5 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Quiescent Current
- 1.8uA
- Tolerance
- ±1%
- Voltage - Supply
- 37V
- Minimum Cathode Current for Regulation
- 500uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+85℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.086 g
Overview
The KIA431 Series integrated circuits are three-terminal programmable shunt regulator diodes. These monolithic IC voltage reference operate as a low temperature coefficient zener which is programmable from Vref to 36 volts with two external resistors. These devices exhibit a wide operating current range of 1.0 to 100mA with a typical dynamic impedance of 0.22Ω. The characteristics of these references make them excellent replacements for zener diodes in many applications such as digital voltmeters, power supplies, and op amp circuitry. The 2.5 volt reference makes it convenient to obtain a stable reference from 5.0 volt logic supplies, and since the KIA431 Series operates as a shunt regulator, it can be used as either a positive or negative voltage reference.
Applications
- digital voltmeters
- power supplies
- op amp circuitry
Key features
- Low Dynamic Output Impedance: 0.22Ω (Typ.)
- Sink Current Capability of 1.0 to 100mA
- Equivalent Full-Range Temperature Coefficient of 50ppm/°C (Typ.)
- Temperature Compensated for Operation Over Full Rated Operating Temperature Range
- Low Output Noise Voltage
- Suffix U: Qualified to AEC-Q100
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL431U#C2828475CBI · SOT-89-3 | CBI | SOT-89-3 | 750 | ₹5.56 · 750 in stock | View |
 | KIA431AF-TP#C49190786TECH PUBLIC · SOT-89 | TECH PUBLIC | SOT-89 | 125 | ₹13.61 · 125 in stock | View |
