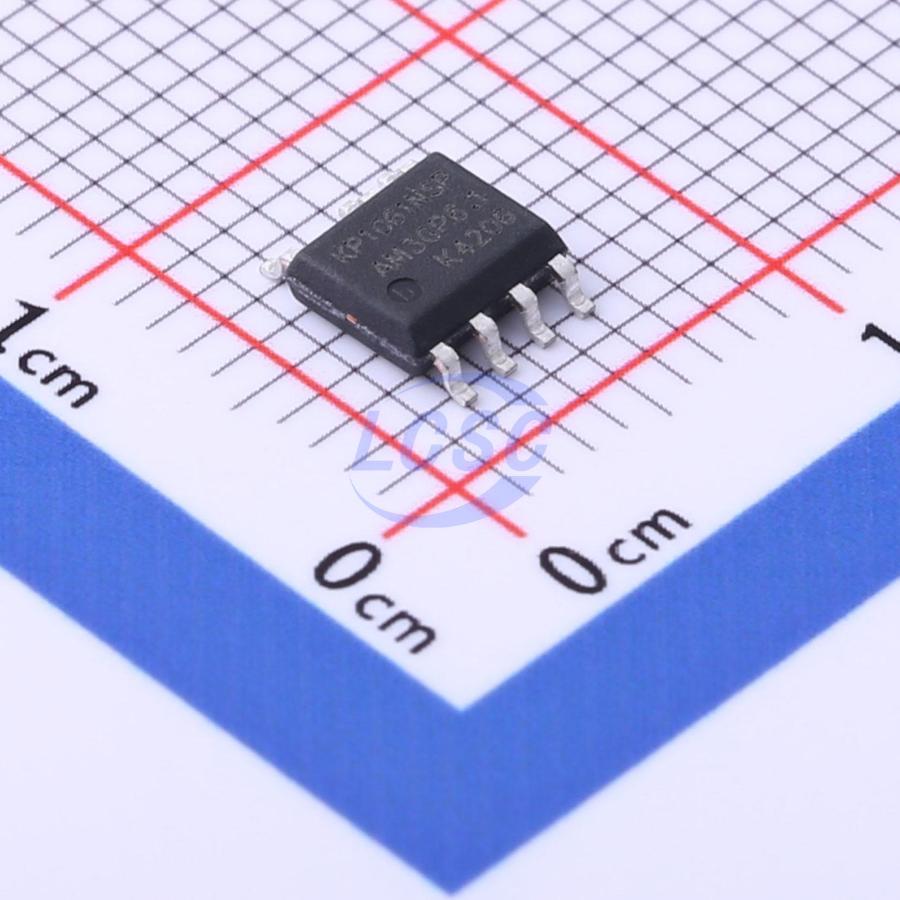

KP1061NSPA
100kHz 10V~13V SOP-7 PFC (Power Factor Correction)
Non-isolated, step-down active power factor correction LED power switch
- Manufacturer
- Kiwi Instruments
- Manufacturer part #
- KP1061NSPA
- Store part #
- C2692507
- Package / case
- SOP-7
- Category
- PFC (Power Factor Correction)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,425 in stock
#C2692507
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.46 | ₹57.30 |
| 50+ | ₹10.09 | ₹504.50 |
| 150+ | ₹9.42 | ₹1,413.00 |
| 500+ | ₹8.92 | ₹4,460.00 |
| 2,500+ | ₹7.66 | ₹19,150.00 |
| 4,000+ | ₹7.45 | ₹29,800.00 |
5 × ₹11.46
₹57.30
excl. GST
₹67.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
KP1061NSPA
₹57.30 for 5 + GST
Specifications
- Features
- Overvoltage protection;Over temperature protection;Under-voltage lockout
- Frequency - Switching
- 100kHz
- Type
- PFCController
- Operating Temperature
- -40℃~+125℃
- Voltage - Supply
- 10V~13V
- Working Mode
- QR
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.256 g
Overview
KP106XN is a highly integrated constant-current LED power switch. The chip employs a quasi-resonant operating mode combined with active power factor correction control technology to achieve high power factor, low harmonic distortion, and high efficiency. KP106XN integrates a high-voltage 650V power MOSFET along with high-voltage startup and power supply circuitry, simplifying system design and reducing production costs. The chip also features optimized surge immunity, capable of withstanding a 2.5KV surge rating at optimal cost. By sampling the inductor current over a full cycle, the chip delivers ultra-high-precision constant-current output with excellent line voltage and load regulation performance. KP106XN incorporates comprehensive protection features to ensure safe and reliable system operation, including: VDD under-voltage lockout (UVLO), cycle-by-cycle current limiting (OCP), over-temperature protection (OTP), output over-voltage protection (OVP), and LED open-circuit and short-circuit protection.
Applications
- LED bulb
- Downlight
- LED T5/T8 tube
Key features
- Quasi-resonant mode high-efficiency operation
- ±1% constant current accuracy
- Ultra-low operating current
- Excellent line and load regulation
- Internal protection features:
- Leading Edge Blanking (LEB)
- Over Temperature Protection (OTP)
- SOP-7 and DIP-7 package types
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | KP15114HSPA#C2692454Kiwi Instruments · SOP-7 | Kiwi Instruments | SOP-7 | 37 | ₹52.10 · 37 in stock | View |
 | KP15114SPA#C2692453Kiwi Instruments · SOP-7 | Kiwi Instruments | SOP-7 | On request | Price on request | Quote |
