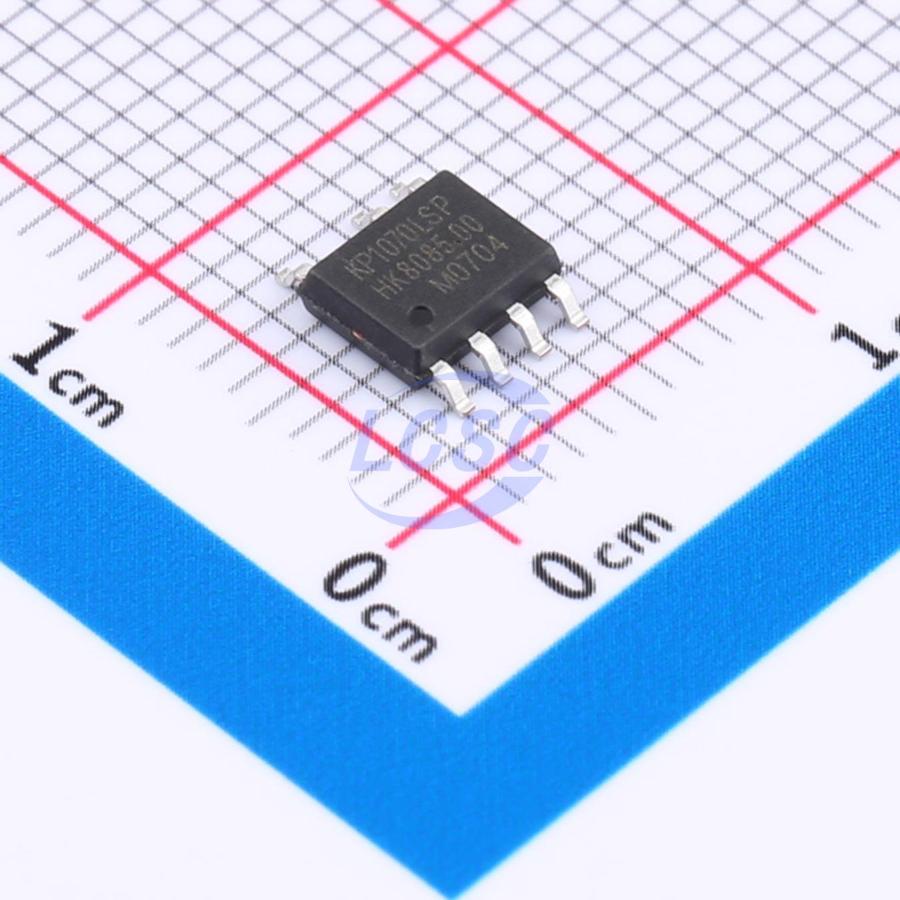

KP1070LSPA

The KP107XL series are highly integrated constant-current LED power switches. The chips employ a quasi-resonant operating mode, eliminating the need for an auxiliary winding for demagnetization detection. An integrated high-voltage 500V power MOSFET and high-voltage self-supply circuit simplify system design and reduce production costs. The chips incorporate high-precision inductor current sampling technology to achieve highly accurate constant-current output, with excellent line voltage regulation and load regulation performance. The KP107XL integrates comprehensive protection features to ensure safe and reliable system operation, including: VDD undervoltage lockout (UVLO), cycle-by-cycle current limiting (OCP), overtemperature protection (OTP), output overvoltage protection (OVP), CS sense resistor short-circuit protection, and LED open-circuit and short-circuit protection.

Applications

• High-power LED lighting

Key features

• Integrated 500V high-voltage MOSFET
• Integrated high-voltage self-supply circuit
• No VDD capacitor design
• ±5% constant current accuracy
• Quasi-resonant mode high-efficiency operation
• Ultra-low operating current
• Excellent line voltage and load regulation
• Built-in protection features: output OVP, cycle-by-cycle OCP, LEB, LED open and short-circuit protection, OTP
• Available in SOP-7 and DIP-7 packages
