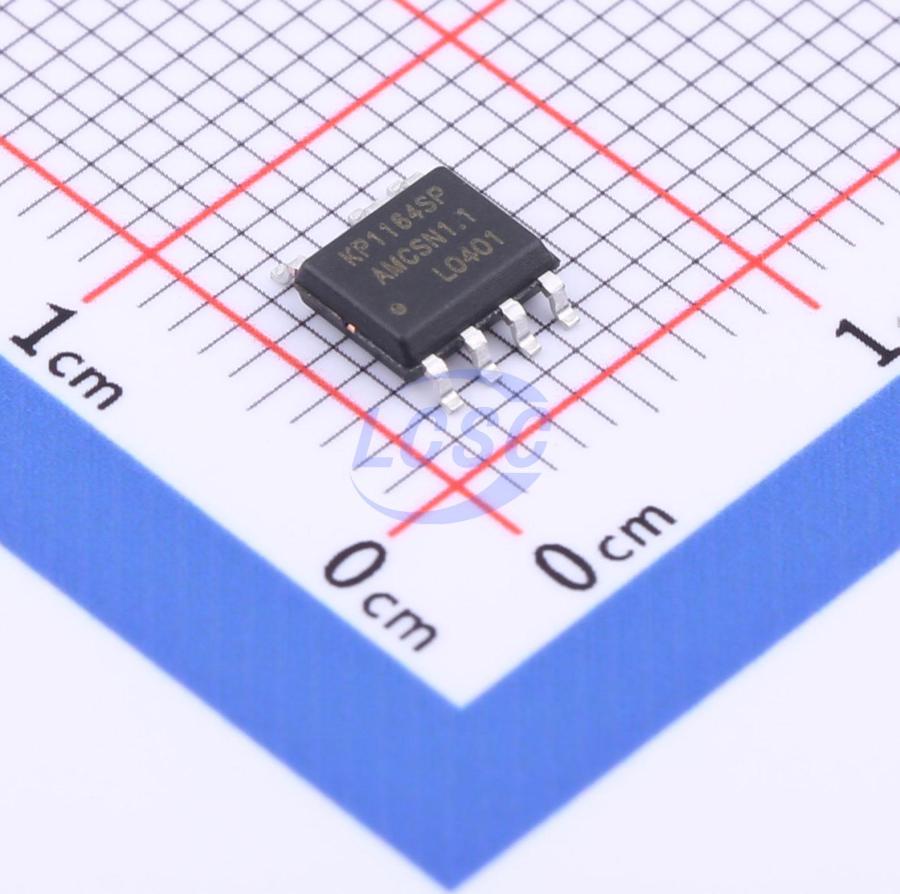

KP1164SPA

The KP116X series are highly integrated constant-current LED power switches operating in quasi-resonant mode, incorporating active power factor correction control technology to meet requirements for high power factor, low harmonic distortion, and high efficiency. The KP116X integrates a 650V high-voltage power MOSFET along with high-voltage startup and high-voltage supply circuits, simplifying system design and reducing production costs. By performing full-cycle sampling of the inductor current during the freewheeling period, the device achieves ultra-high precision constant-current output with excellent line voltage and load regulation performance. The KP116X incorporates comprehensive protection features to ensure safe and reliable system operation, including: VDD undervoltage lockout (UVLO), cycle-by-cycle overcurrent protection (OCP), overtemperature protection (OTP), output overvoltage protection (OVP), and LED open-circuit and short-circuit protection.

Applications

• T5/T8 LED tubes
• High PF LED bulbs

Key features

• Patented active PFC technology, full-voltage power factor >0.95, THD <15%
• Integrated high-voltage startup and supply circuit
• Integrated 650V high-voltage MOSFET
• Quasi-resonant mode high-efficiency operation
• ±5% constant current accuracy
• Ultra-low operating current
• Excellent line voltage and load regulation
• Built-in protection features:
• Output overvoltage protection (OVP)
• Cycle-by-cycle current limiting (OCP)
• Leading edge blanking (LEB)
• Over-temperature protection (OTP)
• Package type SOP-7
