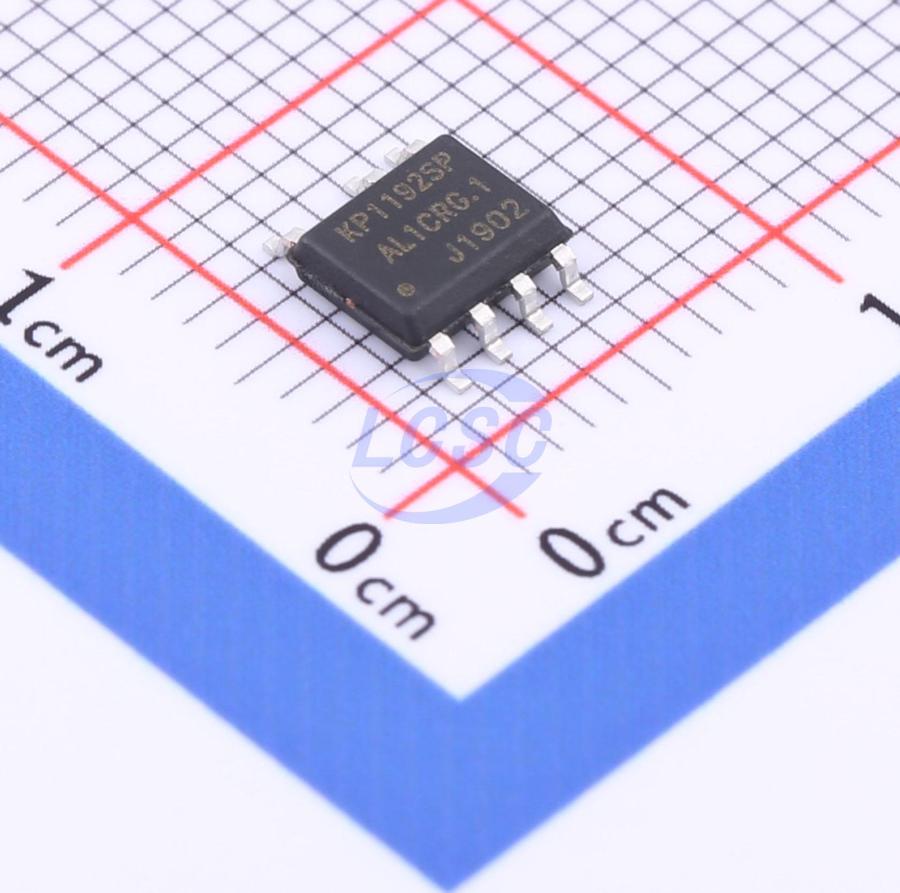

KP1192SPA

The KP119X series are highly integrated primary-side controlled, constant-current mode LED power switches. Operating in discontinuous conduction mode (DCM), they are designed for isolated flyback LED constant-current power supplies. The KP119X integrates an internal 650V power MOSFET and a high-voltage self-supply circuit, utilizing a patented demagnetization detection technique that eliminates the need for an auxiliary winding for demagnetization sensing and power supply, thereby simplifying system design and reducing production costs. The chip incorporates a high-precision inductor current sampling circuit, enabling high-accuracy constant-current output with excellent line voltage and load regulation. The KP119X integrates comprehensive protection features to ensure safe and reliable system operation, including: VDD under-voltage lockout (UVLO), cycle-by-cycle current limiting (OCP), over-temperature protection (OTP), output over-voltage protection (OVP), and LED open-circuit and short-circuit protection.

Applications

• LED downlight
• LED ceiling light
• LED panel light
• Other high-power LED lighting

Key features

• Integrated 650V high-voltage MOSFET
• Integrated high-voltage self-supply circuit
• No VDD capacitor design
• Primary-side feedback constant current control
• ±5% constant current accuracy
• Ultra-low operating current
• Excellent line voltage and load regulation
• Output overvoltage protection (OVP)
• Cycle-by-cycle current limiting (OCP)
• Leading-edge blanking (LEB)
• LED open and short-circuit protection
• Over-temperature protection (OTP)
• Package types: SOP-7, DIP-7
