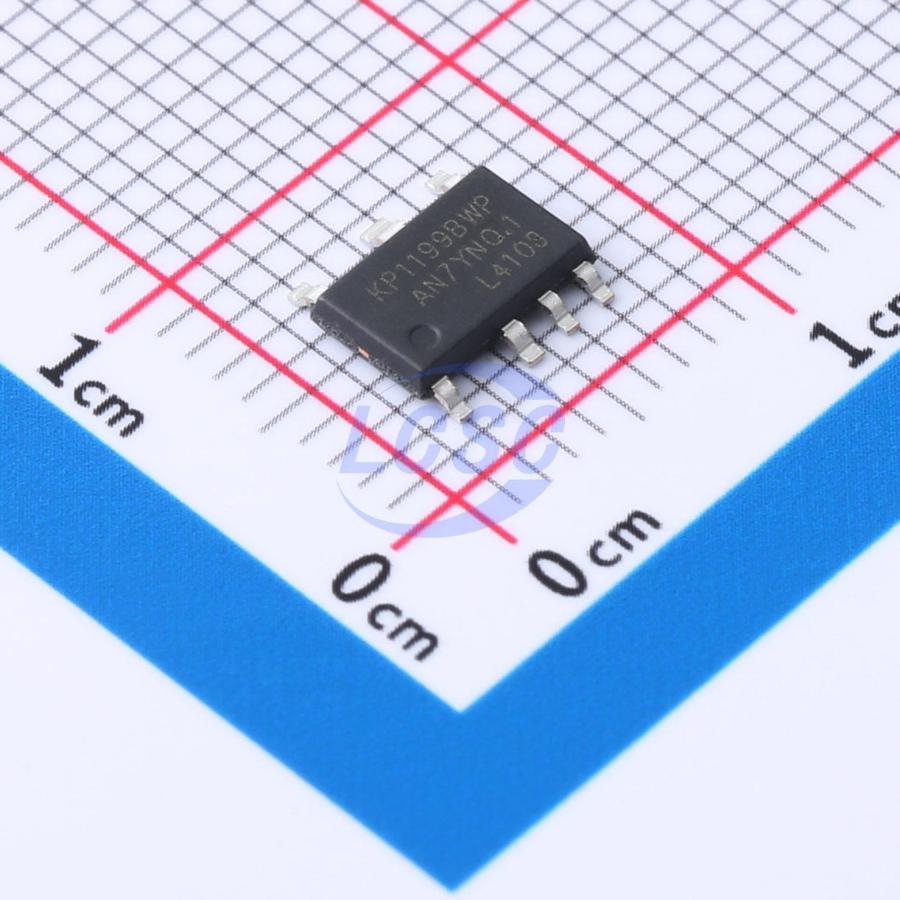

KP1199BWPA

This series of devices are highly integrated primary-side controlled, constant-current mode LED power switches operating in discontinuous conduction mode (DCM), designed for isolated flyback LED constant-current power supplies. They integrate a power MOSFET, rectifier bridge, and high-voltage self-supply circuit internally, and employ a patented demagnetization detection technology that eliminates the need for an auxiliary winding for demagnetization detection and power supply, thereby simplifying system design and reducing production cost. The devices integrate a high-precision inductor current sampling circuit to achieve high-accuracy constant-current output with excellent line voltage and load regulation. In addition, this series incorporates comprehensive protection features to ensure safe and reliable system operation, including undervoltage protection, cycle-by-cycle current limiting, over-temperature protection, output overvoltage protection, and LED open-circuit and short-circuit protection.

Applications

• LED downlight
• LED ceiling light
• LED panel light
• High-power LED lighting

Key features

• Integrated 650V high-voltage MOSFET
• Integrated 800V rectifier bridge
• Integrated high-voltage self-supply circuit
• No VDD capacitor design
• Primary-side feedback constant current control
• ±5% constant current accuracy
• Ultra-low operating current
• Excellent line voltage and load regulation
• Built-in protection features: output OVP, cycle-by-cycle current limiting, leading-edge blanking, LED open/short circuit protection, OTP
• Package type: ASOP-7
