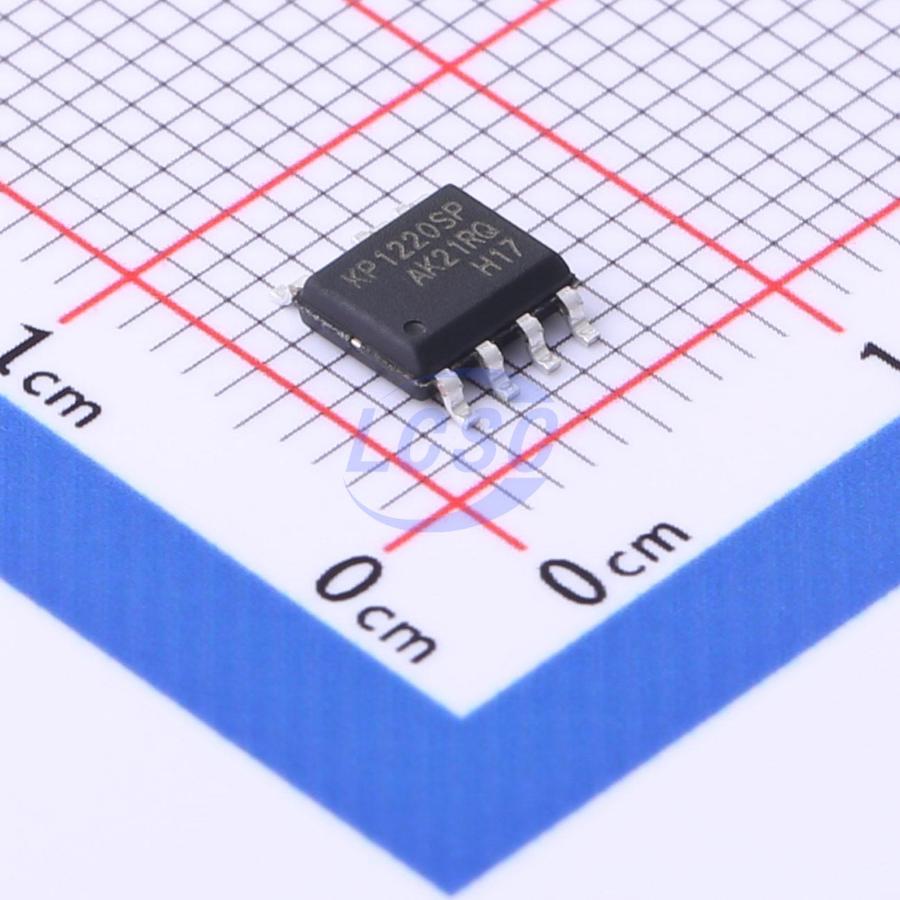

KP1220SPA

The KP122X series are highly integrated constant-current LED power switches. The chips employ a quasi-resonant operating mode combined with active power factor correction control technology to meet requirements for high power factor, low harmonic distortion, and high efficiency. The KP122X integrates demagnetization signal detection technology internally, along with a high-voltage MOSFET and power supply circuit, eliminating the need for an auxiliary winding for demagnetization detection and power supply, thereby simplifying system design and reducing production costs. The chip integrates high-precision inductor current sampling technology and a high-precision current comparator reference threshold voltage, along with line voltage compensation technology, delivering excellent constant-current output characteristics. The KP122X also incorporates proprietary dimming technology, enabling superior TRIAC dimming performance. The KP122X integrates comprehensive protection features to ensure safe and reliable system operation, including: VDD undervoltage lockout (UVLO), cycle-by-cycle current limiting (OCP), overtemperature protection (OTP), output overvoltage protection (OVP), and LED open-circuit and short-circuit protection.

Applications

• Thyristor dimming LED lighting

Key features

• Low-cost TRIAC dimming support with single-winding inductor
• Active PFC technology with power factor >0.9, ±s% constant current accuracy
• Startup time <200 ms
• Integrated high-voltage MOSFET and power supply circuit
• Patented output OVP technology, quasi-resonant mode high-efficiency operation
• Ultra-low operating current, excellent line voltage and load regulation
• Internal protection features: cycle-by-cycle OCP, LED open-circuit and short-circuit protection, LEB, OTP
• Package type: SOP-7
