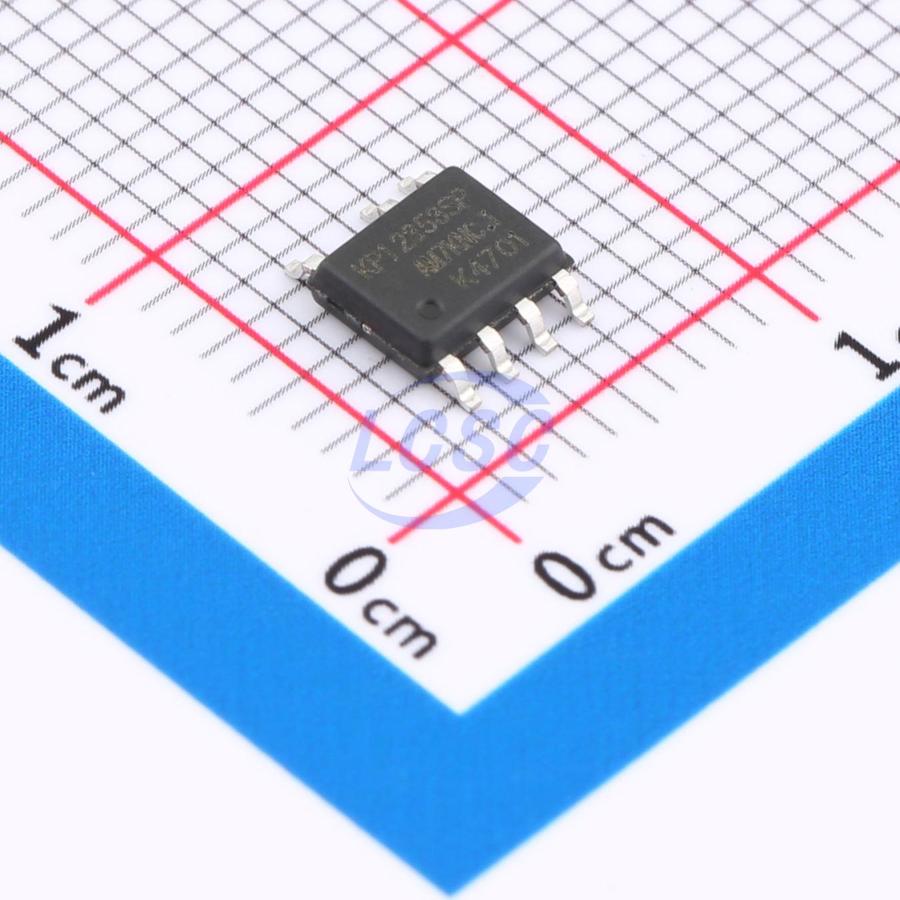

KP12353SPA

KP1235X is a highly integrated boost-type LED constant-current power switch. The chip adopts a quasi-resonant operating mode combined with active power factor correction control technology to meet the requirements of high power factor, ultra-low harmonic distortion, and high efficiency. The KP1235X integrates demagnetization signal detection technology internally, along with high-voltage startup and power supply circuits, eliminating the need for auxiliary windings for demagnetization detection and power supply, thereby simplifying system design and reducing production costs. The chip integrates high-precision inductor current sampling technology and a high-precision output current reference voltage, along with line voltage compensation technology, delivering excellent constant-current output characteristics. The KP1235X incorporates comprehensive protection features to ensure safe and reliable system operation, including: VDD under-voltage lockout (UVLO), cycle-by-cycle current limiting (OCP), over-temperature protection (OTP), output over-voltage protection (OVP), and more.

Applications

• High-power LED lighting

Key features

• Single-stage active PFC without auxiliary winding
• Full-voltage power factor >0.95, THD<10%
• System startup time <200ms
• ±s% constant current accuracy
• Integrated high-voltage startup and supply circuit
• Integrated 500V high-voltage MOSFET
• Quasi-resonant mode high-efficiency operation
• Ultra-low operating current
• Excellent line voltage and load regulation
• Internal protection features:
• Output overvoltage protection (OVP)
• Cycle-by-cycle current limiting (OCP)
• Leading-edge blanking (LEB)
• Overtemperature protection (OTP)
• Package type: SOP-7
