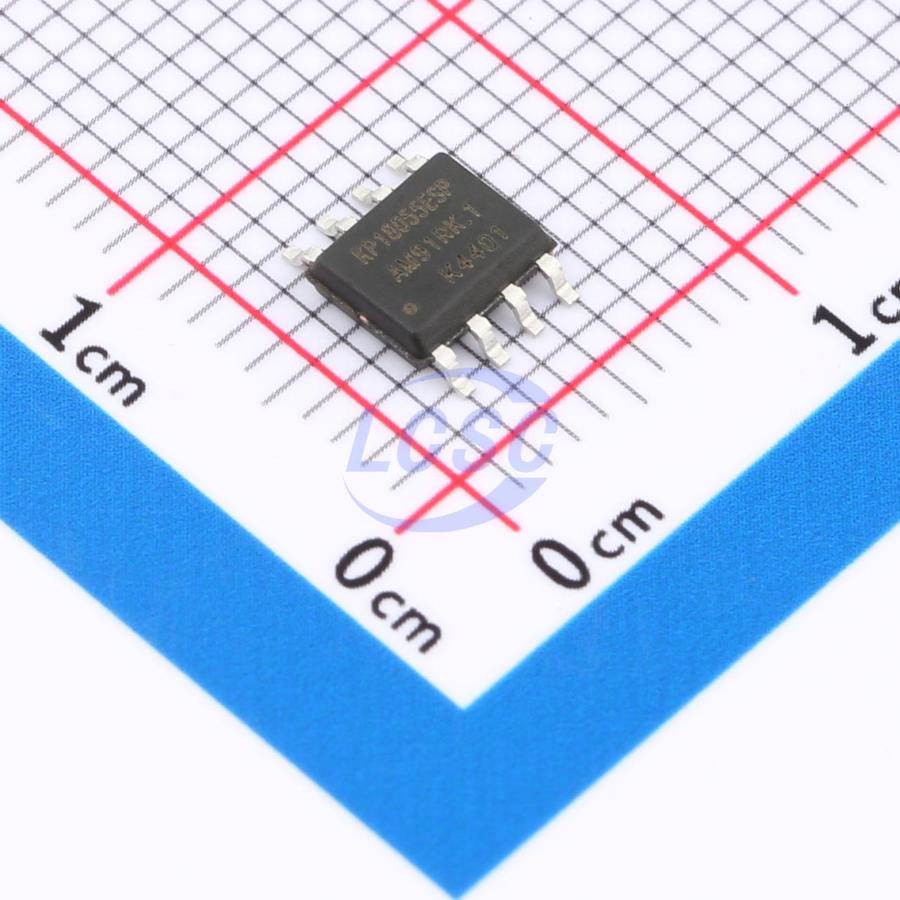

KP18055ESPA

KP18055ESP is a dual-channel LED linear constant-current driver IC. Using linear constant-current technology, it requires no magnetic components in the peripheral circuit, significantly reducing system cost. KP18055ESP supports PWM dimming with deep dimming depth and high dimming accuracy, achieving flicker-free performance throughout the entire dimming range. KP18055ESP integrates an OTP function that automatically reduces the output current when the chip temperature is too high, ensuring system safety and reliability.

Applications

• Smart LED filament bulbs
• Smart LED globe bulbs, etc.

Key features

• PWM dimming support, dimming depth 1%~100%
• Standby power consumption <20mW@220Vac
• Flicker-free throughout full dimming range
• Simple circuit, low-cost power system
• Output current accuracy ±3%
• Constant output current <120mA
• Built-in 500V MOSFET
• No VDD capacitor design
• High efficiency, excellent line regulation
• Low PF, flicker-free applications
• EMI-free application solutions
• Built-in over-temperature protection (OTP)
• Package type: ESOP-8
