Kiwi Instruments

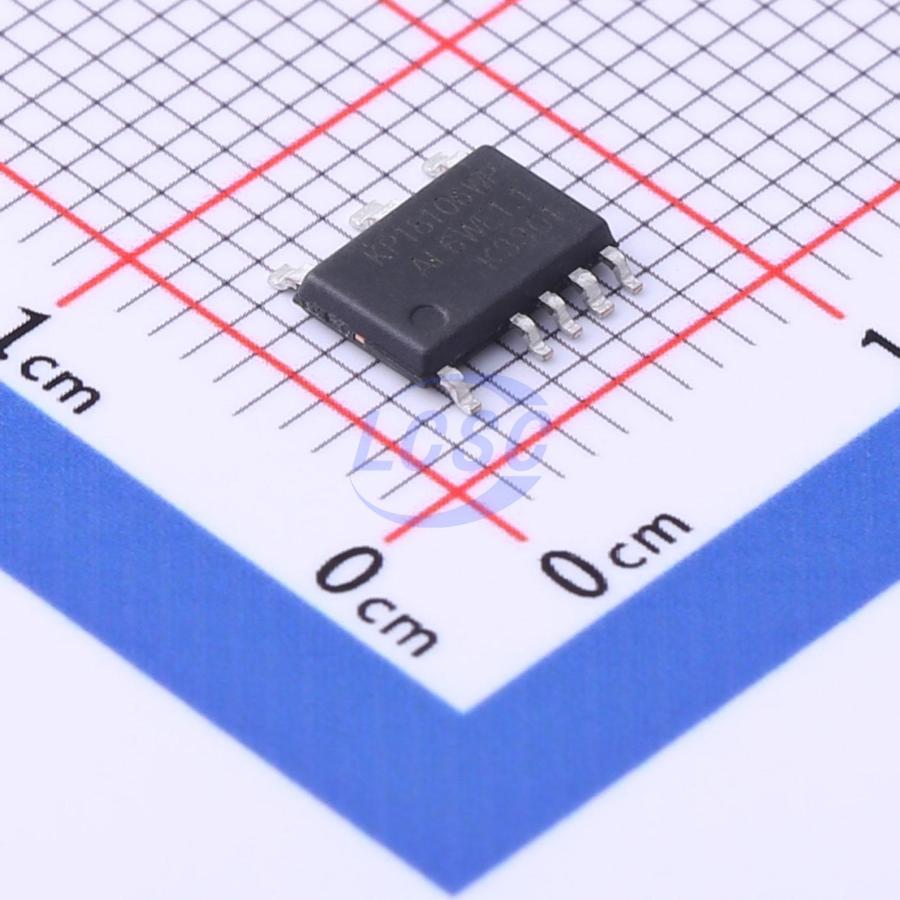

KP18106WPA

LED Driver IC 1 Output 60mA HSOP-8-EP-4.1mm

HSOP-8-EP-4.1mmRoHSSold out at source

High PF, Flicker-Free LED Linear Constant-Current Driver

Manufacturer: Kiwi Instruments
Manufacturer part #: KP18106WPA
Store part #: C2692496
Package / case: HSOP-8-EP-4.1mm
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,400 in stock

#C2692496

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹11.36	₹56.80
50+	₹9.00	₹450.00
150+	₹7.82	₹1,173.00
500+	₹6.93	₹3,465.00
2,500+	₹5.78	₹14,450.00
5,000+	₹5.42	₹27,100.00

Quantity (min 5, multiples of 5)

5 × ₹11.36

₹56.80

excl. GST

₹67.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

KP18106WPA

₹56.80 for 5 + GST

Specifications

Features: Over-Temperature Protection (OTP)
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+150℃
Number of Channels: 1
Type: AC-DC
Output Current: 60mA
Constant Current Accuracy: 4%

Packaging & compliance

RoHS: RoHS
Lifecycle: Sold out at source
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.249 g

Overview

KP18106WPA is a high PF, high-efficiency linear constant-current LED driver IC. It employs linear constant-current technology to precisely set the LED string current via an external resistor. The IC meets the IEC-61000-3-2:2018 specification requirements. The system offers excellent line regulation, requires minimal peripheral components with no magnetic elements, meets EMI requirements, and achieves compact size and long lifespan, significantly reducing system cost. The KP18106WPA integrates an OTP function — when the die temperature is too high, the system reduces the output current to ensure safe and reliable operation.
