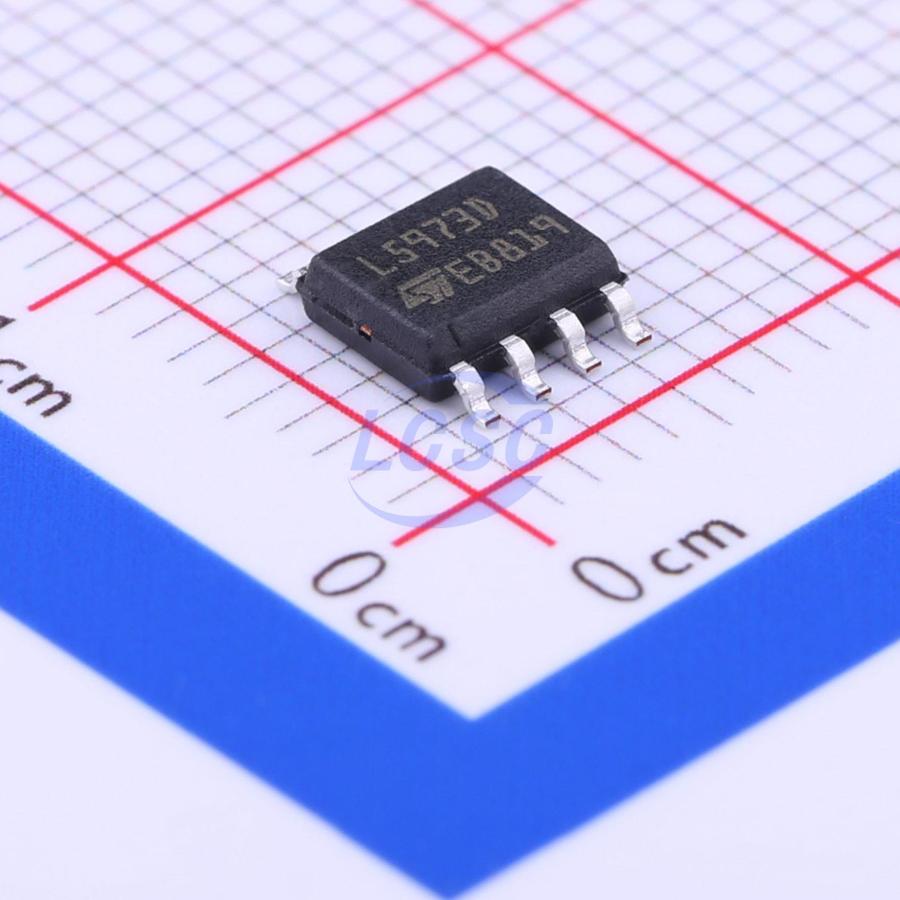

L5973D013TR

The L5973D is a step down monolithic power switching regulator with a minimum switch current limit of 2.5 A so it is able to deliver more than 2 A DC current to the load depending on the application conditions. The output voltage can be set from 1.235 V to 35 V. The high current level is also achieved thanks to an SO8 package with exposed frame, that allows to reduce the Rth(j-amb) down to approximately 40 °C/W. The device uses an internal P-channel D-MOS transistor (with a typical Rdson of 250 mΩ) as switching element to minimize the size of the external components. An internal oscillator fixes the switching frequency at 250 kHz. Having a minimum input voltage of 4 V only, it is particularly suitable for 5 V bus, available in all computer related applications. Pulse by pulse current limit with the internal frequency modulation offers an effective constant current short circuit protection.

Applications

• Consumer: STB, DVD, TV, VCR, car radio, LCD monitors
• Networking: XDSL, modems, DC-DC modules
• Computer: printers, audio/graphic cards, optical storage, hard disk drive
• Industrial: changers, car battery, DC-DC converters

Key features

• 2.5 A internal switch
• Operating input voltage from 4 V to 36 V
• 3.3 V/(±2%) reference voltage
• Output voltage adjustable from 1.235 V to 35 V
• Low dropout operation: 100% duty cycle
• 250 kHz internally fixed frequency
• Voltage feedforward
• Zero load current operation
• Internal current limiting
• Inhibit for zero current consumption
• Synchronization
• Protection against feedback disconnection
• Thermal shutdown
