HXY MOSFETDatasheet (PDF)

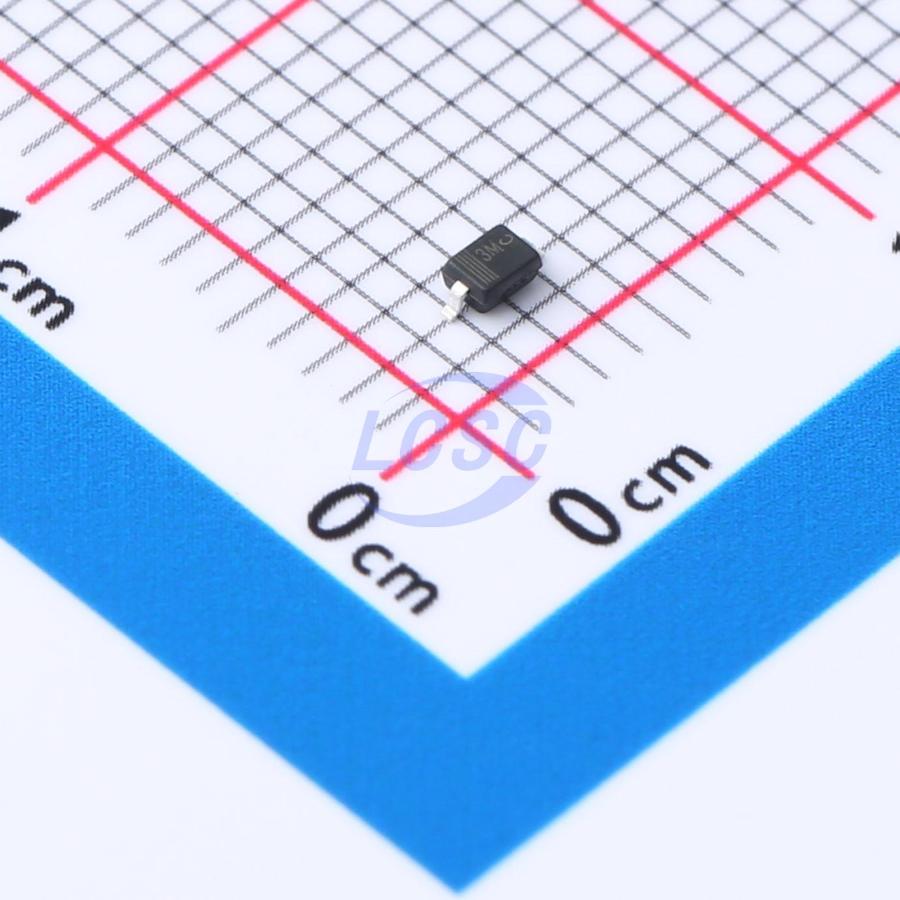

LESD3Z5.0CMT1G-HXY
9VC Clamp 11A@8/20us Ipp ESD DIODE SOD-323
SOD-323RoHSActive
ESD DIODE 5VWM 9VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- LESD3Z5.0CMT1G-HXY
- Store part #
- C19627023
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,150 in stock
#C19627023
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.49 | ₹124.50 |
| 500+ | ₹1.93 | ₹965.00 |
| 3,000+ | ₹1.63 | ₹4,890.00 |
| 6,000+ | ₹1.44 | ₹8,640.00 |
| 24,000+ | ₹1.30 | ₹31,200.00 |
| 51,000+ | ₹1.20 | ₹61,200.00 |
50 × ₹2.49
₹124.50
excl. GST
₹146.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LESD3Z5.0CMT1G-HXY
₹124.50 for 50 + GST
Specifications
- Clamping Voltage
- 9V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 11A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 5.6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.032 g
