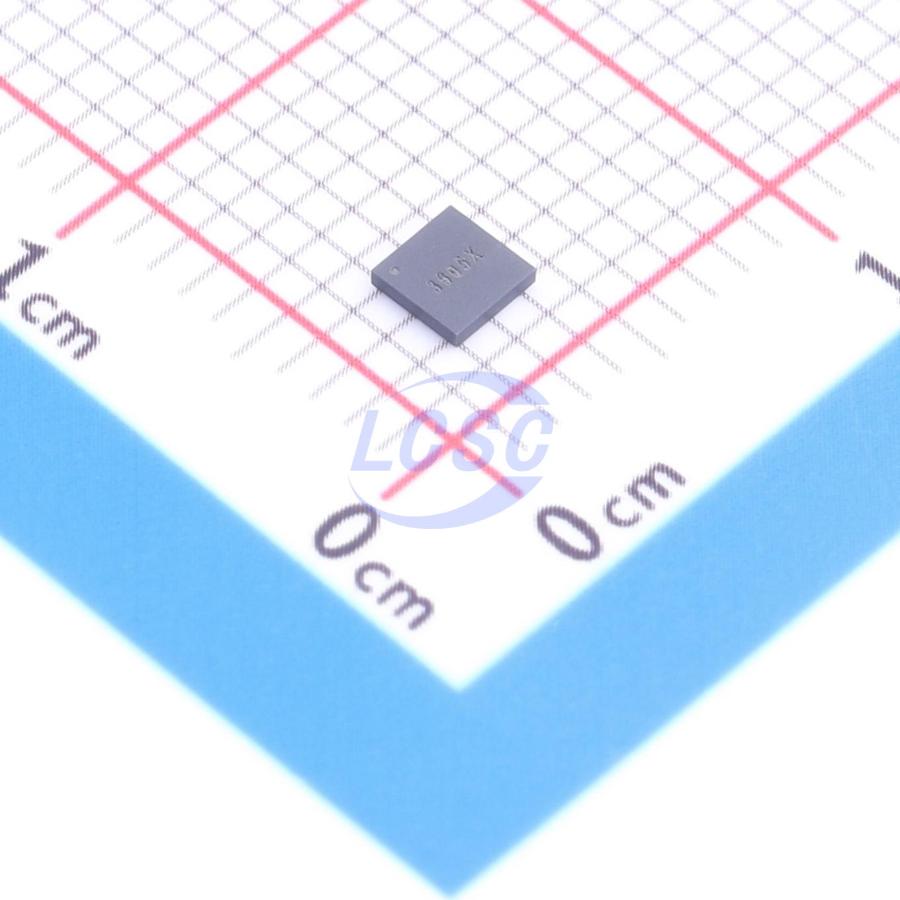

Legend-Si

LGS3633X

Step-down type 800kHz~2MHz Adjustable 3A QFN-18(2.5x2.5) Voltage Regulators - DC DC Switching Regulators

QFN-18(2.5x2.5)RoHSActive

Manufacturer: Legend-Si
Manufacturer part #: LGS3633X
Store part #: C54780282
Package / case: QFN-18(2.5x2.5)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,997 in stock

#C54780282

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
1+	₹299.84	₹299.84
10+	₹254.76	₹2,547.60
30+	₹226.55	₹6,796.50
100+	₹197.70	₹19,770.00
500+	₹184.65	₹92,325.00
1,000+	₹179.09	₹1,79,090.00

Quantity (min 1)

1 × ₹299.84

₹299.84

excl. GST

₹353.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LGS3633X

₹299.84 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Number of Outputs: 1
Function: Step-down type
Frequency - Switching: 800kHz~2MHz
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4V~20V
Switch tube (built-in/external): Built-in
Output Current: 3A
Quiescent Current: 600uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.043 g
