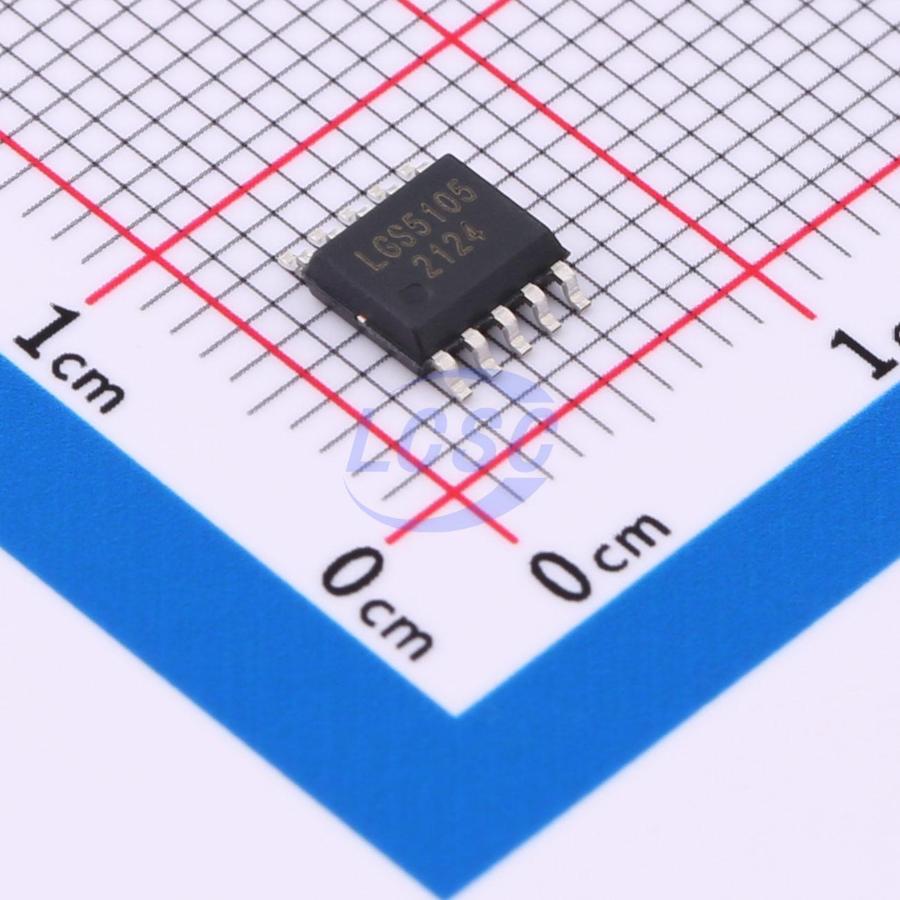

LGS5105
Buck Switching Regulator IC Adjustable 2 Output 500mA ESSOP-10
ESSOP-10ROHS CompliantActive
60V Synchronous Buck Converter with High-Voltage LDO
- Manufacturer
- Legend-Si
- Manufacturer part #
- LGS5105
- Store part #
- C20618075
- Package / case
- ESSOP-10
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,980 in stock
#C20618075
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.36 | ₹136.80 |
| 50+ | ₹21.62 | ₹1,081.00 |
| 150+ | ₹19.16 | ₹2,874.00 |
| 500+ | ₹16.09 | ₹8,045.00 |
| 2,500+ | ₹14.09 | ₹35,225.00 |
| 4,000+ | ₹13.27 | ₹53,080.00 |
5 × ₹27.36
₹136.80
excl. GST
₹161.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LGS5105
₹136.80 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Number of Outputs
- 2
- Frequency - Switching
- 1MHz
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection;Built-in LDO regulator;Operating status indication
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 14V~60V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 500mA
- Quiescent Current
- 360uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.181 g
Overview
The LGS5105 integrates a high-voltage LDO and a high-efficiency synchronous buck module. Both outputs support comprehensive and reliable global thermal protection and short-circuit protection. The LGS5105 buck converter operates at a fixed switching frequency of 1MHz with synchronous rectification, supports input voltages up to 60V, features an output voltage adjustable via external resistor divider, and delivers a maximum output current of 500mA. The LGS5105 also provides a 3.3V LDO output with a maximum load current of 25mA, which can serve as a power supply for external control circuits. The LGS5105 integrates an adaptive feedback loop design that automatically detects the impedance to ground at the feedback pin to adaptively operate in either voltage feedback mode or current feedback mode, enabling both constant voltage output and constant current output operation.
Key features
- Junction temperature range: -40°C to +125°C
- All ports feature ±2000V (HBM) ESD protection
- ESSOP10 package
