Legend-Si

LGS63032B6

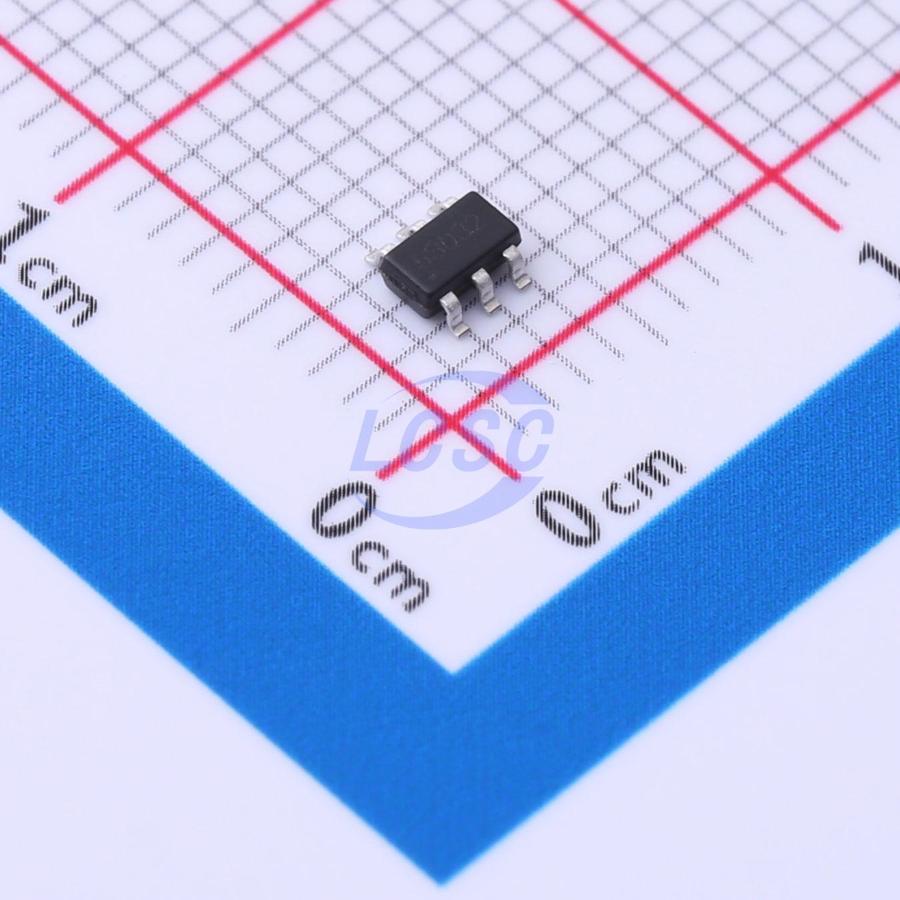

LED Driver IC 1 Output DC-DC Boost PWM Dimming 2A SOT-23-6

SOT-23-6ROHS CompliantActive

60V/2A step-up LED constant current driver

Manufacturer: Legend-Si
Manufacturer part #: LGS63032B6
Store part #: C5123977
Package / case: SOT-23-6
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,050 in stock

#C5123977

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹35.96	₹179.80
50+	₹29.17	₹1,458.50
150+	₹26.25	₹3,937.50
500+	₹22.62	₹11,310.00
3,000+	₹17.49	₹52,470.00
6,000+	₹16.52	₹99,120.00

Quantity (min 5, multiples of 5)

5 × ₹35.96

₹179.80

excl. GST

₹212.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LGS63032B6

₹179.80 for 5 + GST

Specifications

Output Voltage: 3V~60V
Frequency - Switching: 1.2MHz
Features: Built-in soft-start;Over Voltage Protection;Over-Temperature Protection (OTP);Remove stroboscopic effect
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+125℃
Topology: Boost
Number of Channels: 1
Type: DC-DC
Output Current: 2A
Constant Current Accuracy: 3%
Voltage - Input(DC): 3V~60V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

The LGS6303X is a boost DC-DC LED driver IC with an integrated power switch, featuring a wide input voltage range of 3V to 60V. Its integrated soft-start function minimizes the need for additional inrush suppression components, making it ideal for LED driving across a wide input supply range. Output current is adjustable via an external resistor. The IC integrates a 350mΩ power switch capable of 2A peak input current, with excellent load and line transient response. The SKIP control mode combines low quiescent current with high switching frequency to achieve high efficiency across a wide load current range. Additional features include soft-start, adjustable output overvoltage protection, thermal shutdown, UVLO, and cycle-by-cycle peak current limiting protection. The LGS6303X supports high-accuracy digital and analog dimming by selecting different values of the sense resistor RSET. Specifically, LGS63030 supports DC dimming via analog input (0.6V~1.2V), while LGS63032 supports PWM dimming via digital input (100Hz~100kHz), with no flicker at high-frequency PWM input, a dimming ratio of up to 25000:1 at 100Hz PWM frequency, and dimming depth down to 0.1%. The IC is available in a compact 6-pin SOT23-6 package and an 8-pin ESOP8 package with enhanced thermal dissipation.

Applications

Boost-type automotive lighting
Smart dimming LED lights
MR16 LED

Key features

Wide input/output voltage range: 3.0V~60V
PWM dimming and analog dimming support
Integrated 350mΩ low-side MOSFET
Up to 94% boost efficiency
Cycle-by-cycle peak current limiting protection
SKIP mode for ultra-high light-load efficiency
Available in ultra-compact SOT23-6 and thermally enhanced ESOP8 packages
Integrated soft-start circuit to prevent current overshoot
Thermal shutdown protection
Input undervoltage protection
Adjustable output overvoltage protection
Internal loop compensation for reduced solution size, cost, and design complexity
±2000V (HBM) ESD protection on all pins
Junction temperature range: -40℃ to +125℃
