Legend-Si

LGS6305

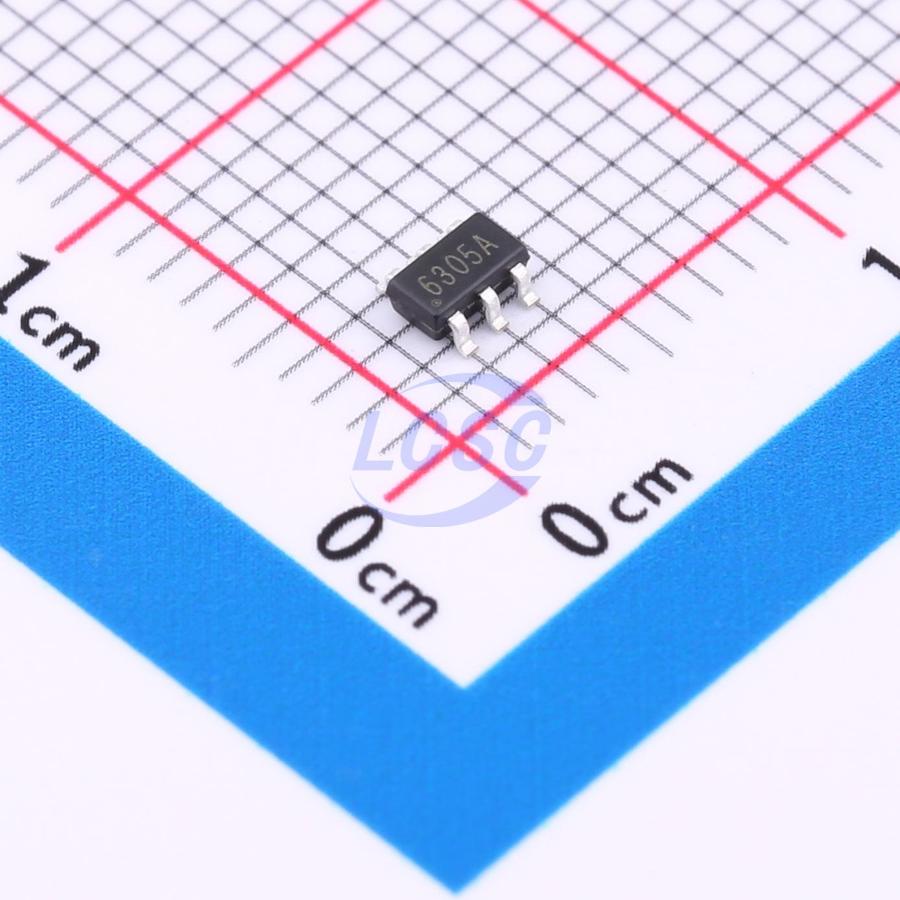

LED Driver IC 1 Output Buck PWM Dimming 250mA SOT-23-6

SOT-23-6ROHS CompliantActive

60V/250mA LED constant current driver with high-voltage LDO

Manufacturer: Legend-Si
Manufacturer part #: LGS6305
Store part #: C20618073
Package / case: SOT-23-6
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,180 in stock

#C20618073

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹13.56	₹67.80
50+	₹11.89	₹594.50
150+	₹11.06	₹1,659.00
500+	₹10.43	₹5,215.00
3,000+	₹9.38	₹28,140.00
6,000+	₹9.13	₹54,780.00

Quantity (min 5, multiples of 5)

5 × ₹13.56

₹67.80

excl. GST

₹80.00 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LGS6305

₹67.80 for 5 + GST

Specifications

Output Voltage: 12V~36V
Features: Over Voltage Protection;Short Circuit Protection;Over-Temperature Protection (OTP)
Frequency - Switching: 500kHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+125℃
Topology: Buck
Number of Channels: 1
Type: DC-DC
Output Current: 250mA
Voltage - Input(DC): 12V~60V
Constant Current Accuracy: 5%

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.025 g

Overview

This product is designed for industrial-grade power applications, with an operating junction temperature range of -40°C to +125°C. It integrates a 60V, 250mA asynchronous high-side switch constant-current LED driver operating in LED driver constant-current mode, with 5% accuracy and peak efficiency up to 92%, supporting an input/output voltage range of 12V to 60V. The device supports PWM dimming mode and features thermal shutdown, input undervoltage lockout, overcurrent protection, and short-circuit protection. In addition, it integrates a wide-input-range 60V LDO with quiescent current as low as 7mA, featuring overcurrent protection and thermal shutdown, with a fixed 5V output.

Applications

Smart Dimming LED Lamp
Wide-Range LED Driver

Key features

Junction temperature range: -40°C to +125°C
Integrated 60V, 250mA asynchronous high-side constant-current LED driver
Constant-current LED driving mode with 5% accuracy
Peak efficiency up to 92%
Input/output voltage range: 12V to 60V
PWM dimming mode support
Thermal shutdown, input UVLO, overcurrent protection, and short-circuit protection
Integrated wide-range 60V input LDO with minimum 7mA quiescent current, overcurrent and thermal shutdown protection, fixed 5V output
