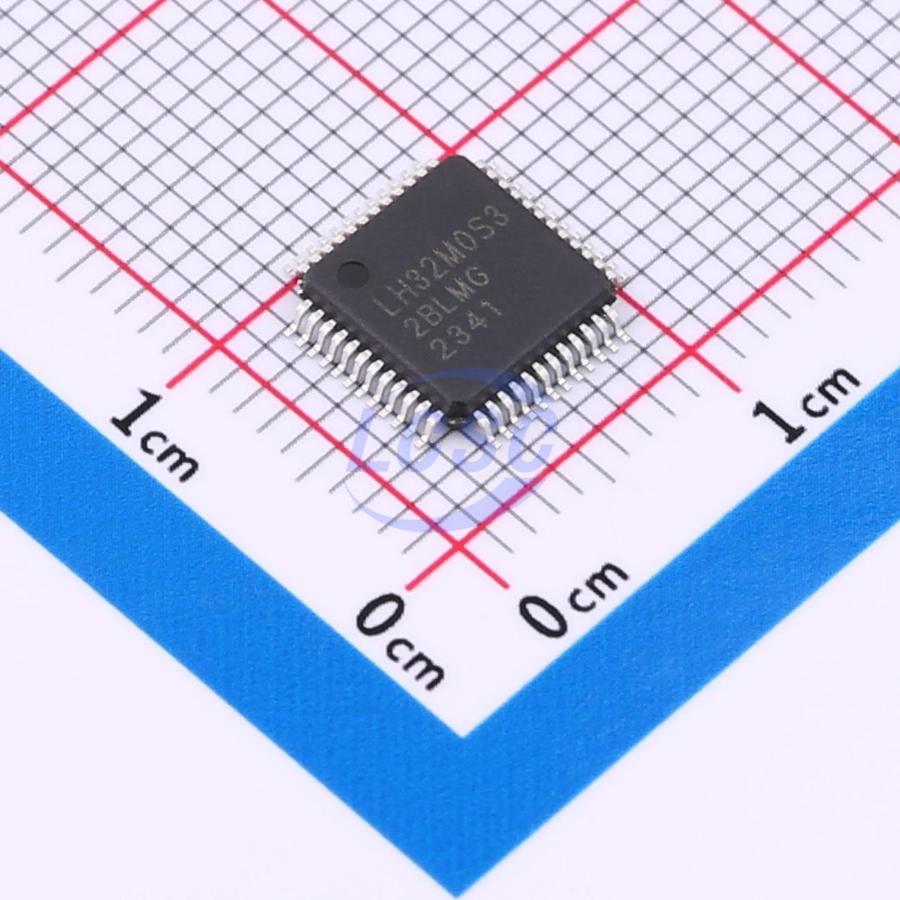

LH32M0S32BLMG

The LH32M0S3 series microcontrollers feature a high-performance 32-bit ARM® Cortex®-M0 core, integrating up to 128KB of FLASH memory and 4KB of SRAM, with a maximum operating frequency of 32MHz. The device provides standard communication interfaces (I2C, SPI, and USART), multi-channel 24-bit high-precision ADC, two 16-bit timers, a buzzer driver, and a display controller. This microcontroller series supports up to 4×20 LCD and up to 7×8 LED control. The operating temperature range is -40℃ to 105℃, and the operating voltage range is 2.2V to 3.6V. The device offers multiple power operating modes to meet various low-power application requirements.

Applications

• Infrared thermometry
• High-precision measurement
• Blood oxygen saturation detection
• Sphygmomanometer
• Data acquisition
• Industrial control

Key features

• 32-bit ARM® Cortex®-M0 CPU core, up to 32MHz operating frequency
• Up to 128K bytes FLASH and 4K bytes SRAM
• Internal 32MHz RC oscillator and 32KHz RC oscillator, supports 32.768KHz low-speed crystal oscillator
• Operating voltage range: VDD and VDDA both 2.2V~3.6V, operating temperature range -40℃~105℃
• Low-power modes: Sleep, Deep Sleep, and Power-down; with POR/PDR and LVD
• 35 general-purpose I/Os, up to 32MHz operating frequency with interrupt vectors
• Integrated 24-bit high-precision Sigma-Delta ADC, up to 8 external input channels, single-ended and differential input
• Selectable gain of 1/2/4/8/16/32/64/128, output data rate range 8Hz~8kHz
• ENOB ≥19.5 bits at 30SPS and 128x gain; ENOB ≥15.4 bits at 8kSPS and 128x gain
• ADC supports hardware auto channel switching, data polling, with interrupt or DMA notification to MCU
• ADC integrated selectable 1.8V/2.35V/2.45V/2.8V internal reference voltage, temperature sensor, and supply voltage detection channel
• Integrated fast-response digital comparator
• Integrated 4 COM × 20 SEG LCD driver with built-in charge pump
• Integrated LED driver supporting up to 7×8 segments
• Integrated single-channel buzzer driver
• Integrated 4× 16-bit advanced control timers (6-channel PWM output with dead-time and complementary control) and 4× 16-bit general-purpose timers (with PWM output)
• Integrated programmable constant current source (8mA, 10mA, 12mA, 20mA) with PWM control
• Integrated OLED color display DMA acceleration module
• Serial single-wire debug interface
• Chip ID
• Available in LQFP48 (7mm×7mm), SSOP24 (8.2mm×5.3mm), and QFN48 (6mm×6mm) packages
