LegendsemiDatasheet (PDF)

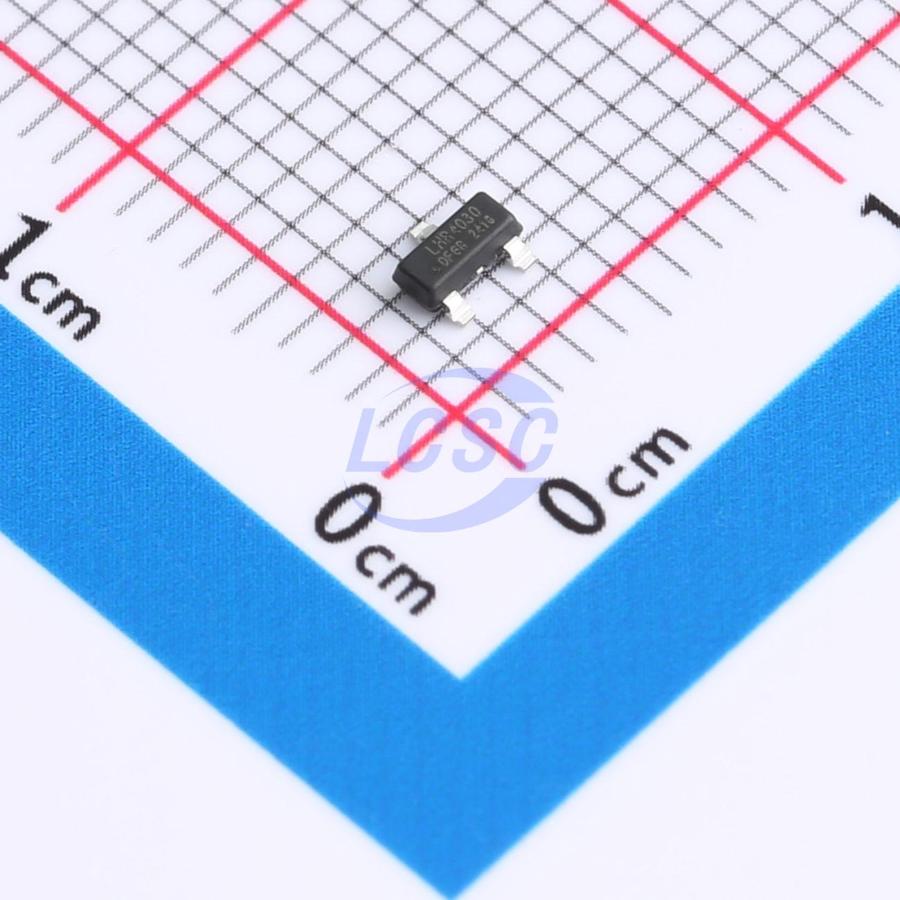

LHR4030DFGR
Series Voltage Reference IC Fixed 3V ±0.1% 10mA SOT-23-3
SOT-23-3RoHSActive
Low-power, low-noise, low-temperature-drift, high-precision voltage reference
- Manufacturer
- Legendsemi
- Manufacturer part #
- LHR4030DFGR
- Store part #
- C42459134
- Package / case
- SOT-23-3
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,273 in stock
#C42459134
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.73 | ₹135.73 |
| 10+ | ₹112.23 | ₹1,122.30 |
| 30+ | ₹99.40 | ₹2,982.00 |
| 100+ | ₹84.83 | ₹8,483.00 |
| 500+ | ₹78.31 | ₹39,155.00 |
| 1,000+ | ₹75.48 | ₹75,480.00 |
1 × ₹135.73
₹135.73
excl. GST
₹160.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LHR4030DFGR
₹135.73 for 1 + GST
Specifications
- Quiescent Current
- 30uA
- Output Voltage
- 3V
- Tolerance
- ±0.1%
- Voltage - Supply
- 3.2V~5.5V
- Reference Type
- Series
- Output Current
- 10mA
- Operating Temperature
- -40℃~+125℃
- Features
- Enable/disable
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.35 g
Overview
LHR40XX is a family of low-power, low-noise, low-drift, high-precision voltage references. These references support both sink and source current, and feature excellent line and load regulation performance. Proprietary design techniques achieve outstanding temperature drift (15ppm/°C) and high accuracy (0.1%). Combined with low noise and low power consumption, the LHR40XX family is an ideal choice for portable devices and high-precision data acquisition systems. The LHR40XX is a family of low-power, low-noise, precision bandgap voltage references designed for excellent initial voltage accuracy and drift performance.
Applications
- Portable devices
- Medical equipment
- Data acquisition systems
- Test equipment
Key features
- Low tempco: 15ppm/℃ (max)
- High accuracy: 0.1% (max)
- Low noise: 10μVₚ₋ₚ/V
- Excellent long-term stability:
- 100ppm (typ) first 1000 hours
- 50ppm (typ) subsequent 1000 hours
- High output current: ±10mA
- Low quiescent current: 30μA (typ)
- Temperature range: -40°C to 125°C
- Output voltage: 2.048V/2.5V/3V/3.3V/4.096V/5V
