LINKOSEMI

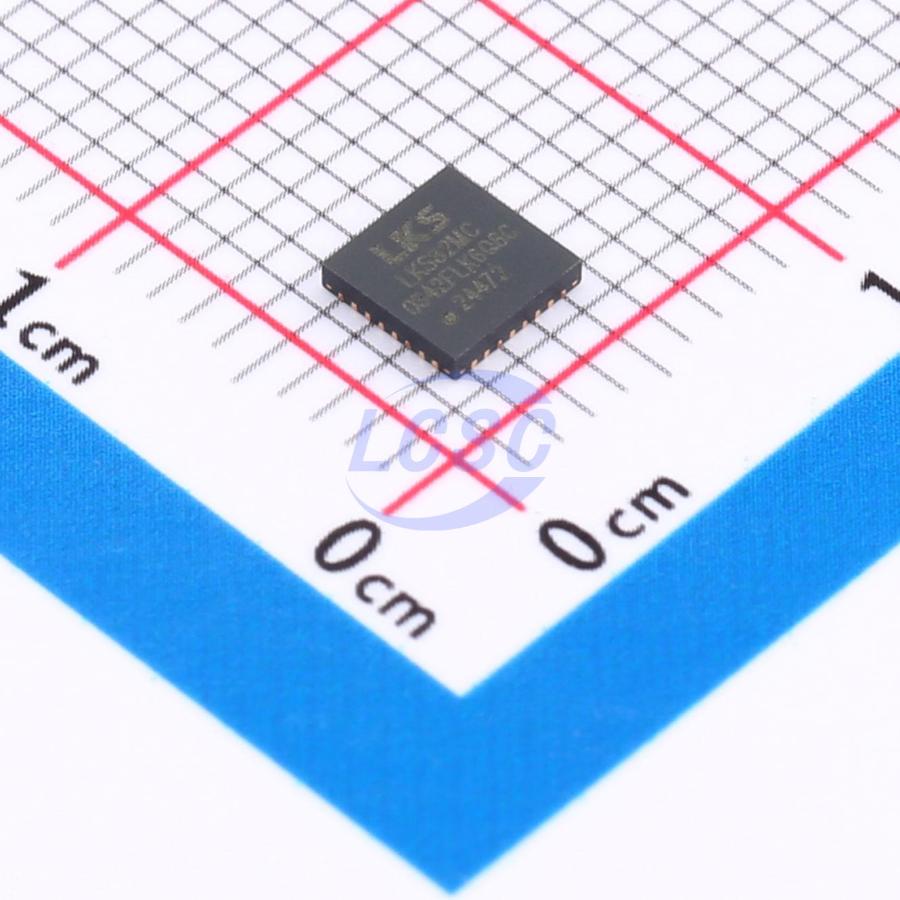

LKS32MC0342FLK6Q8C

ARM Cortex-M0 32 Bit 48MHz QFN-32L-EP(4x4) Microcontrollers RoHS

QFN-32L-EP(4x4)ROHS CompliantActive

32bit Compact MCU for Motor Control

Manufacturer: LINKOSEMI
Manufacturer part #: LKS32MC0342FLK6Q8C
Store part #: C46532108
Package / case: QFN-32L-EP(4x4)
Category: Microcontrollers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,361 in stock

#C46532108

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹171.88	₹171.88
10+	₹142.34	₹1,423.40
30+	₹125.82	₹3,774.60
100+	₹107.35	₹10,735.00
500+	₹99.32	₹49,660.00
1,000+	₹95.61	₹95,610.00

Quantity (min 1)

1 × ₹171.88

₹171.88

excl. GST

₹202.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

LKS32MC0342FLK6Q8C

₹171.88 for 1 + GST

Specifications

DAC (Bit): 8bit
ADC (Bit): 12bit
Operating Temperature: -40℃~+105℃
Voltage - Supply: 2.5V~5.5V
Program Memory Type: FLASH
CPU Core: ARM Cortex-M0
Program Storage Size: 32KB
Core Size: 32 Bit
CPU Maximum Speed: 48MHz

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.359 g

Overview

LKS32MC03x_6N series is a 32-bit compact microcontroller designed for motor control applications, integrating a three-phase full-bridge bootstrap gate driver module capable of directly driving 6 N-type MOSFETs.

Applications

Sensored BLDC motor control
Sensorless BLDC motor control
Sensored FOC motor control
Sensorless FOC motor control
Stepper motor control
PMSM control
Asynchronous motor control
Digital power control system

Key features

48MHz 32-bit Cortex-M0 core with hardware division coprocessor
Low-power sleep mode with MCU sleep current of 30uA
Industrial operating temperature range: -40~105°C
MCU powered by single supply 2.5V~5.5V
Superior ESD and burst immunity
Integrated dual high-speed op-amps supporting single-shunt or dual-shunt current sampling topologies
Op-amp inputs with integrated voltage clamp protection — only two current-limiting resistors required for direct MOSFET RDS(on) current sensing
ADC module with variable-gain technology, works in conjunction with high-speed op-amps to handle wider current dynamic range, ensuring sampling accuracy for both low and high currents
Integrated dual comparators
Strong ESD and noise immunity for stable and reliable operation
High integration, compact footprint, reduced BOM cost
Supports IEC/UL60730 functional safety certification
