LKWICDatasheet (PDF)

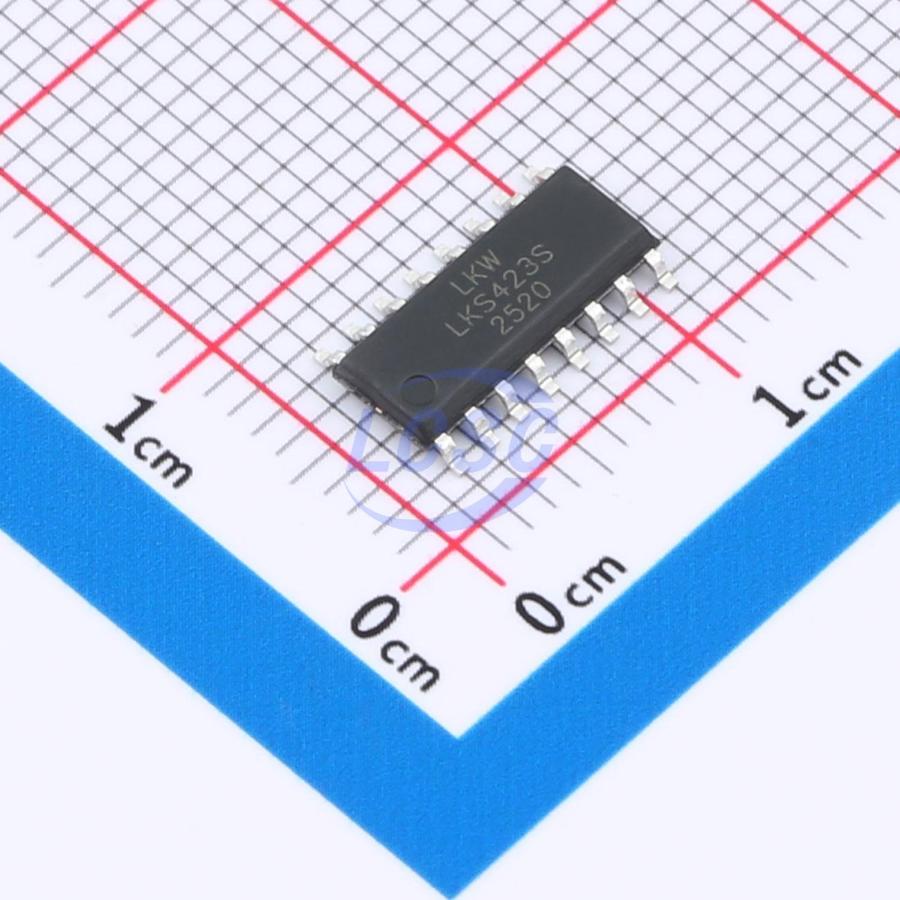

LKS423S
4 6Ω SOP-16 Analog Switches, Multiplexers, Demultiplexers
SOP-16RoHSActive
- Manufacturer
- LKWIC
- Manufacturer part #
- LKS423S
- Store part #
- C49304842
- Package / case
- SOP-16
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,067 in stock
#C49304842
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹624.65 | ₹624.65 |
| 10+ | ₹537.50 | ₹5,375.00 |
| 50+ | ₹485.67 | ₹24,283.50 |
| 100+ | ₹433.20 | ₹43,320.00 |
| 500+ | ₹409.14 | ₹2,04,570.00 |
| 1,000+ | ₹398.08 | ₹3,98,080.00 |
1 × ₹624.65
₹624.65
excl. GST
₹737.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LKS423S
₹624.65 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 4.5V~30V;4.5V~20V;-20V~-4.5V
- Number of Channels
- 4
- Ron
- 6Ω
- Propagation Delay
- 15ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.407 g
Overview
The LKS42xS is a series of 4-channel SPST analog switches. The LKS423S features four normally-closed channels, the LKS424S features four normally-open channels, and the LKS425S contains two normally-closed and two normally-open analog switches. Designed with CMOS technology, the signal handling capability is extended to VSS~VDD, enabling operation over a wide supply voltage range. These devices offer excellent characteristics including low on-resistance, low leakage current, and high switching speed.
Applications
- Audio signal routing
- Automatic test equipment
- Data acquisition systems
- PBX/PABX systems
- Sample-and-hold circuits
Key features
- Wide analog signal range: VSS~VDD
- Single supply voltage: 4.5V~30V
- Dual supply voltage: ±4.5V~±20V
- Low on-resistance: 6Ω (typical)
- Rail-to-rail signal handling
- Operating temperature: -40℃~+85℃
- Package: SOP16 plastic encapsulation
