UMWDatasheet (PDF)

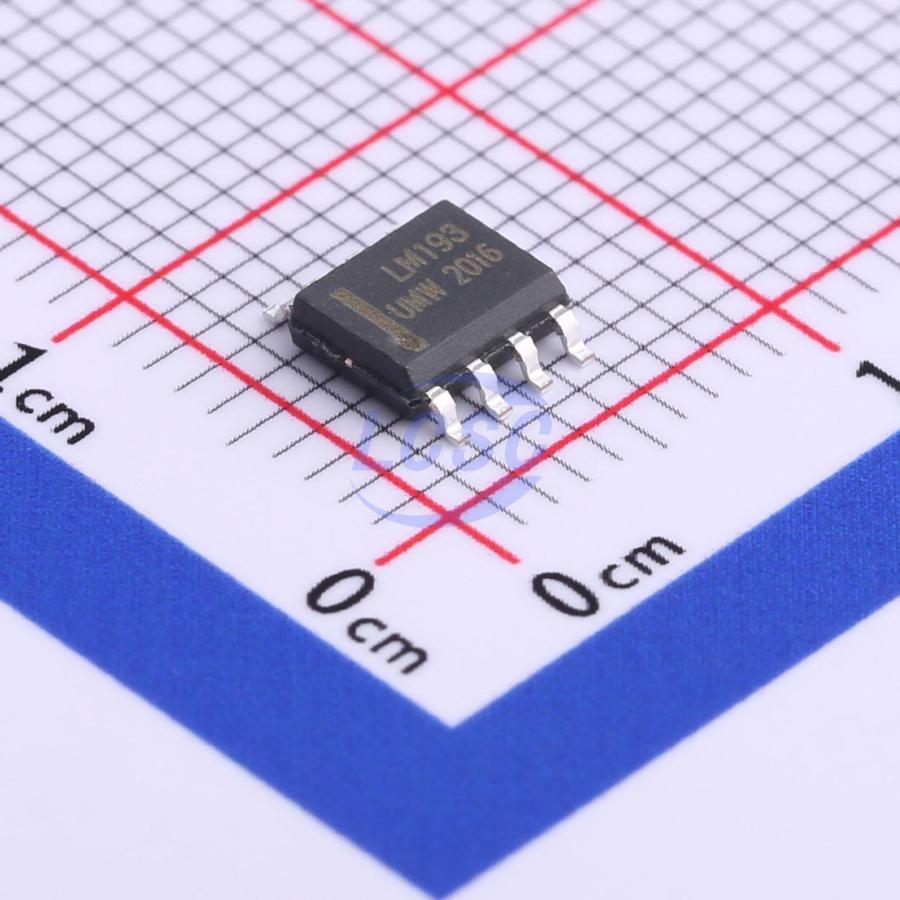

LM193DR
2 400uA 1mV Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Comparators RoHS
SOP-8ROHS3 CompliantActive
Low Power Low Offset Voltage Dual Comparators
- Manufacturer
- UMW
- Manufacturer part #
- LM193DR
- Store part #
- C668212
- Package / case
- SOP-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,235 in stock
#C668212
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.50 | ₹62.50 |
| 50+ | ₹9.79 | ₹489.50 |
| 150+ | ₹8.44 | ₹1,266.00 |
| 500+ | ₹7.42 | ₹3,710.00 |
| 2,500+ | ₹6.60 | ₹16,500.00 |
| 5,000+ | ₹6.19 | ₹30,950.00 |
5 × ₹12.50
₹62.50
excl. GST
₹73.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM193DR
₹62.50 for 5 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL;CMOS
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- 1V~16V;-16V~-1V
- Ib - Input Bias Current
- 25nA
- Propagation Delay(tpd)
- 300ns
- Quiescent Current(Iq)
- 400uA
- Vos - Input Offset Voltage
- 1mV
- Maximum Power Supply Range (Vdd-Vss)
- 32V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Response Time (tr)
- 1.3us
- Single Supply
- 2V~32V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.196 g
Overview
Key features
- Wide single-supply range: 2.0V ~ 32V
- Split-supply range: ±1.0V ~ ±16V
- Ultra-low supply-independent current consumption: 0.4mA
- Low input bias current: 25nA
- Low input offset current: 5.0nA
- Low input offset voltage: 5.0mV (max)
- Input common-mode range extends to ground
- Differential input voltage range equal to supply voltage
