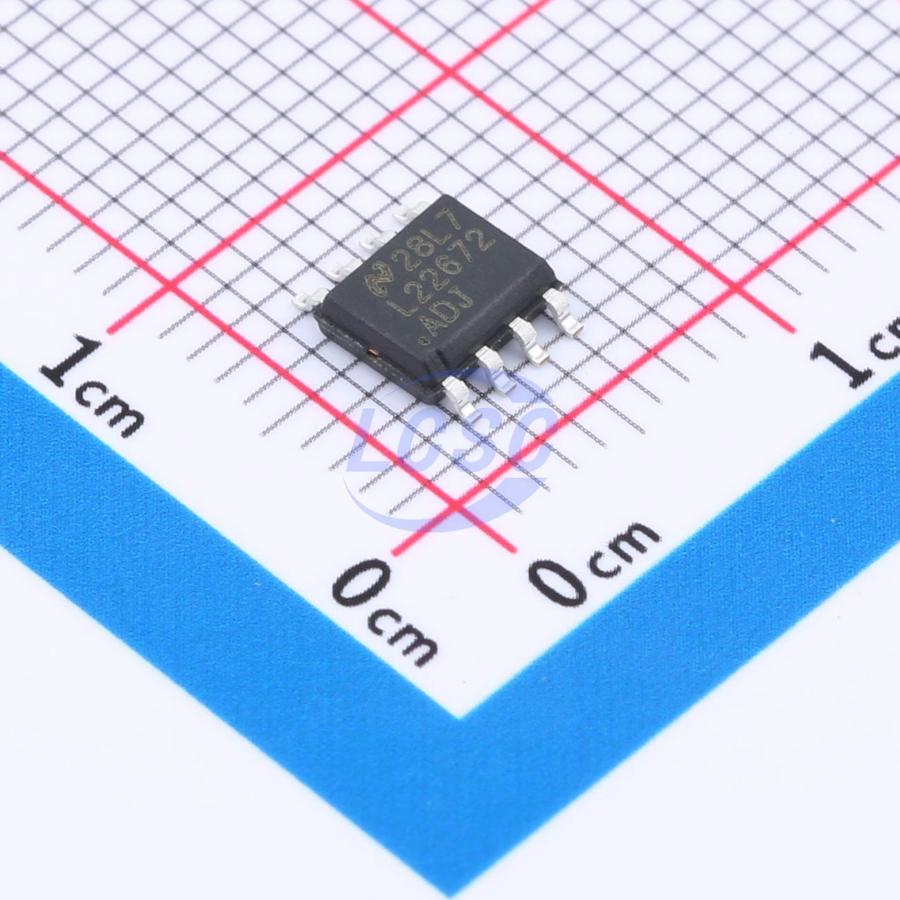

LM22672MRE-ADJ/NOPB

Buck Switching Regulator IC Adjustable 1.285V~37V 1 Output 1A SO-8

SO-8ROHS3 CompliantActive

42V, 1A SIMPLE SWITCHER Buck Regulator

Manufacturer: TI
Manufacturer part #: LM22672MRE-ADJ/NOPB
Store part #: C2070728
Package / case: SO-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5 in stock

#C2070728

Stock & price checked 25 h ago

Quantity	Unit price	Pack price
1+	₹651.25	₹651.25
10+	₹555.20	₹5,552.00
30+	₹498.06	₹14,941.80
250+	₹440.25	₹1,10,062.50
500+	₹413.74	₹2,06,870.00
1,000+	₹401.57	₹4,01,570.00

Quantity (min 1)

1 × ₹651.25

₹651.25

excl. GST

₹768.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 250 per reel

LM22672MRE-ADJ/NOPB

₹651.25 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 500kHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable soft-start;Frequency synchronization
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~42V
Switch tube (built-in/external): Built-in
Output Voltage: 1.285V~37V
Output Current: 1A
Quiescent Current: 3.4mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 250 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.3 g
