HANSCHIP semiconductor

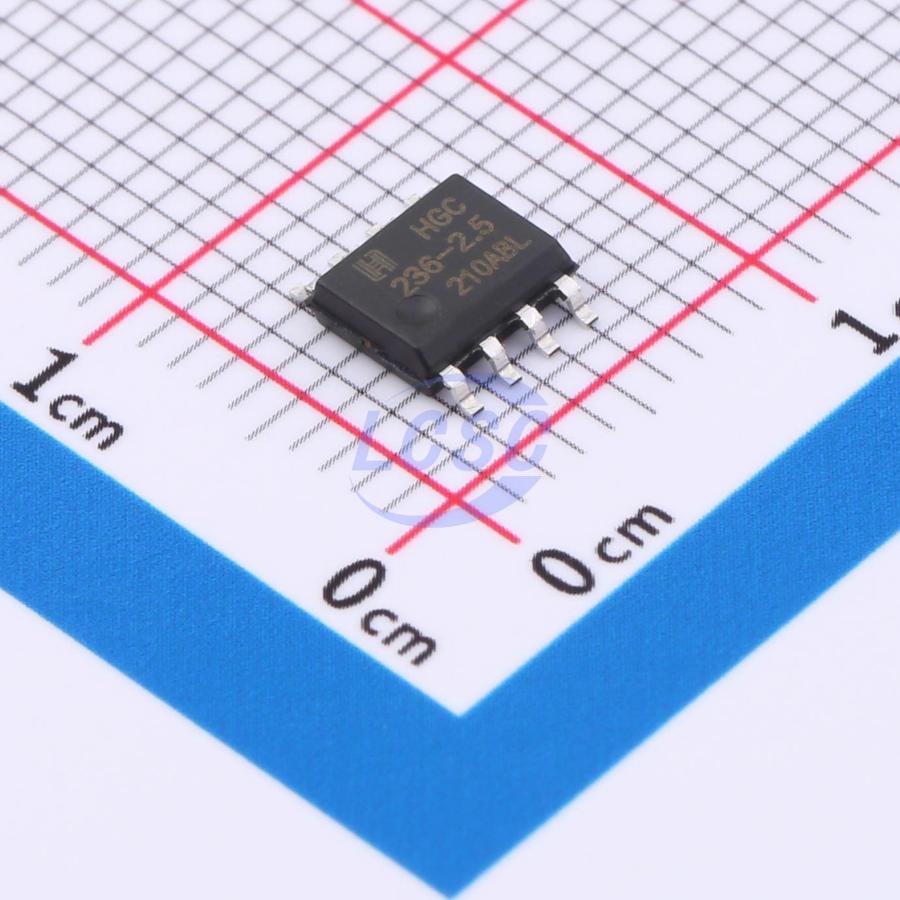

LM236D-2.5RG

Voltage Reference IC 2.5V ±1% SOP-8

SOP-8ROHS CompliantActive

2.5V voltage reference

Manufacturer: HANSCHIP semiconductor
Manufacturer part #: LM236D-2.5RG
Store part #: C5145325
Package / case: SOP-8
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,465 in stock

#C5145325

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹14.61	₹73.05
50+	₹11.63	₹581.50
150+	₹10.13	₹1,519.50
500+	₹9.02	₹4,510.00
2,500+	₹7.75	₹19,375.00
5,000+	₹7.30	₹36,500.00

Quantity (min 5, multiples of 5)

5 × ₹14.61

₹73.05

excl. GST

₹86.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM236D-2.5RG

₹73.05 for 5 + GST

Specifications

Output Voltage: 2.5V
Tolerance: ±1%
Minimum Cathode Current for Regulation: 600uA
Reference Type: Parallel
Output Current: 10mA
Operating Temperature: -40℃~+85℃
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.19 g

Overview

The LM236 and LM336 are precision 2.5V voltage reference diodes. These voltage reference monolithic ICs operate similarly to 2.5V Zener diodes with low temperature coefficient and 0.2Ω dynamic impedance. A third pin is available for adjusting the reference voltage and temperature coefficient.
