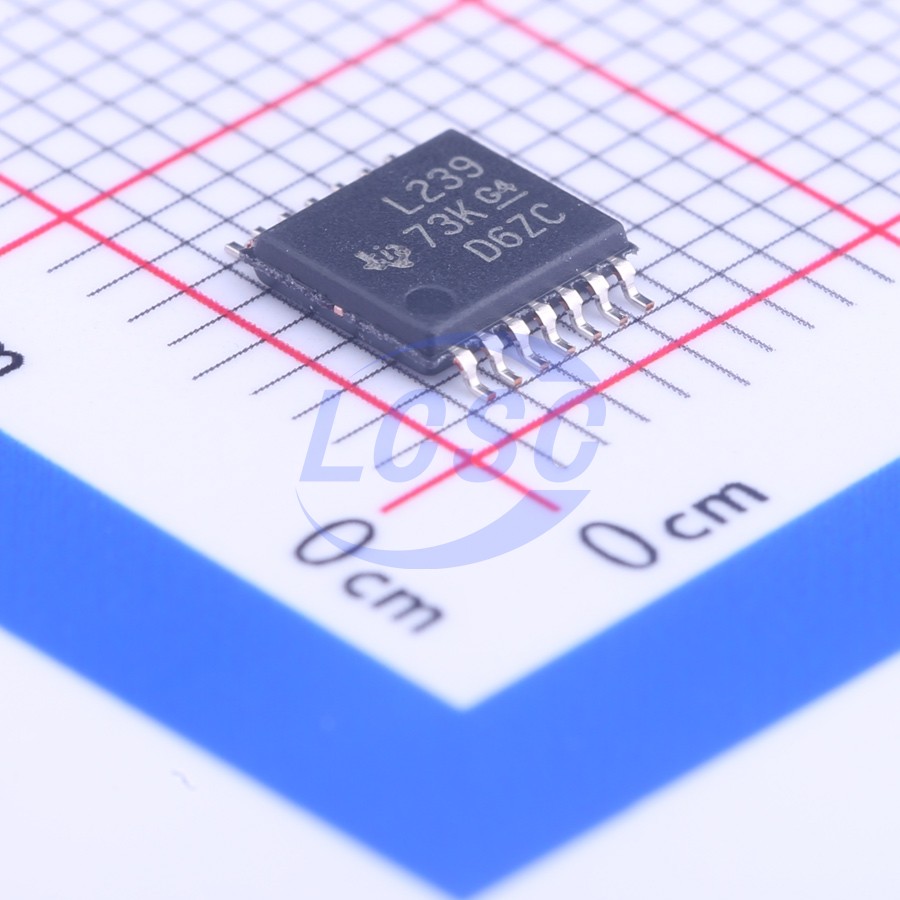

LM239PWR
Four channels 800uA 2mV TSSOP-14 Comparators RoHS
Quad Differential Comparators
- Manufacturer
- TI
- Manufacturer part #
- LM239PWR
- Store part #
- C133250
- Package / case
- TSSOP-14
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,395 in stock
#C133250
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.93 | ₹189.65 |
| 50+ | ₹30.31 | ₹1,515.50 |
| 150+ | ₹27.04 | ₹4,056.00 |
| 500+ | ₹22.97 | ₹11,485.00 |
| 2,000+ | ₹21.15 | ₹42,300.00 |
| 4,000+ | ₹20.06 | ₹80,240.00 |
5 × ₹37.93
₹189.65
excl. GST
₹223.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LM239PWR
₹189.65 for 5 + GST
Specifications
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 3nA
- Output Mode
- TTL;CMOS
- Operating Temperature
- -25℃~+85℃
- Dual Supply
- 1V~18V;-18V~-1V
- Ib - Input Bias Current
- 25nA
- Output Type
- Open Collector
- Quiescent Current(Iq)
- 800uA
- Vos - Input Offset Voltage
- 2mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
The LMx39x and LM2901xx devices contain four independent voltage comparators designed to operate from a single power supply over a wide voltage range. They can also operate from dual power supplies, provided that the difference between the two supplies is between 2V and 36V and that VCC is at least 1.5V higher than the input common-mode voltage. The current consumption is independent of the supply voltage. The outputs can be connected to other open-collector outputs to implement a wired-AND relationship.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM339PWR#C42184TI · TSSOP-14 | TI | TSSOP-14 | 10,200 | ₹26.71 · 10,200 in stock | View |
 | LM2901AVQPWRQ1#C133810TI · TSSOP-14 | TI | TSSOP-14 | 960 | ₹71.71 · 960 in stock | View |
 | LM2901QPWRG4Q1#C2862405TI · TSSOP-14 | TI | TSSOP-14 | 2 | ₹113.78 · 2 in stock | View |
 | LM339APWR#C167117TI · TSSOP-14 | TI | TSSOP-14 | On request | Price on request | Quote |
 | LM2901T14-13#C5665041DIODES · TSSOP-14 | DIODES | TSSOP-14 | On request | Price on request | Quote |
