LM25010SDX/NOPB

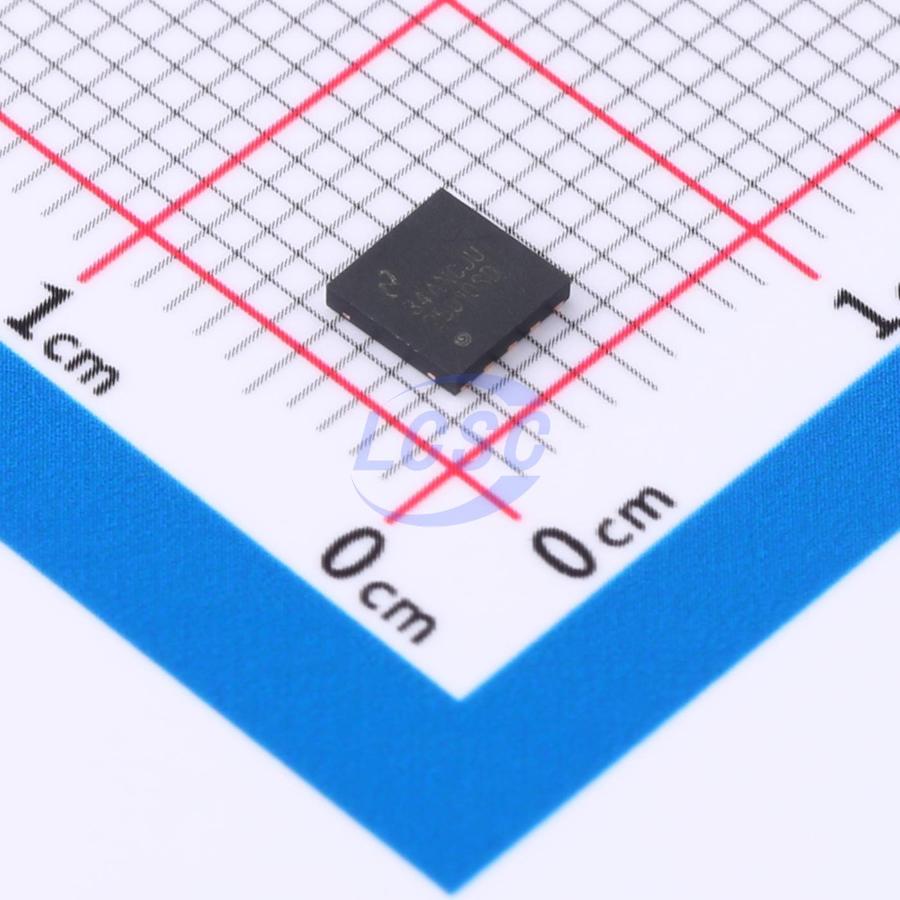

161kHz~203kHz Step-down type Adjustable 2.5V~42V 1A WSON-10-EP(4x4) Voltage Regulators - DC DC Switching Regulators RoHS

WSON-10-EP(4x4)ROHS3 CompliantActive

42-V, 1-A Step-Down Switching Regulator

Manufacturer: TI
Manufacturer part #: LM25010SDX/NOPB
Store part #: C2863716
Package / case: WSON-10-EP(4x4)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

68 in stock

#C2863716

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹312.27	₹312.27
10+	₹262.18	₹2,621.80
30+	₹230.86	₹6,925.80
100+	₹198.90	₹19,890.00
500+	₹184.21	₹92,105.00
1,000+	₹177.96	₹1,77,960.00

Quantity (min 1)

1 × ₹312.27

₹312.27

excl. GST

₹368.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,500 per reel

LM25010SDX/NOPB

₹312.27 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 161kHz~203kHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable current limiting;Adjustable soft-start;Built-in LDO regulator;Built-in current sense resistor;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 9V~42V
Switch tube (built-in/external): Built-in
Output Voltage: 2.5V~42V
Output Current: 1A
Quiescent Current: 920uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.089 g

Overview

The LM25010 features all the functions needed to implement a low-cost, efficient, buck regulator capable of supplying in excess of 1-A load current. This high voltage regulator integrates an N-Channel Buck Switch, and is available in thermally enhanced 10-pin WSON and 14-pin HTSSOP packages. The constant ON-time regulation scheme requires no loop compensation resulting in fast load transient response and simplified circuit implementation. The operating frequency remains constant with line and load variations due to the inverse relationship between the input voltage and the ON-time. The valley current limit detection is set at 1.25 A. Additional features include: VCC undervoltage lockout, thermal shutdown, gate drive undervoltage lockout, and maximum duty cycle limiter.

Applications

Non-Isolated Telecommunications Regulators
Secondary Side Post Regulators
Automotive Electronics

Key features

LM25010-Q1 Qualified for Automotive Applications AEC-Q100 Qualified With the Following Results:
Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range
Device Temperature Grade 0: -40°C to 150°C Ambient Operating Temperature Range
Device HBM ESD Classification Level 2
Device CDM ESD Classification Level C5
Wide 6-V to 42-V Input Voltage Range
Valley Current Limiting at 1.25 A
Programmable Switching Frequency Up To 1 MHz
Integrated N-Channel Buck Switch
Integrated High Voltage Bias Regulator
No Loop Compensation Required
Ultra-Fast Transient Response
Nearly Constant Operating Frequency With Line and Load Variations
Adjustable Output Voltage
2.5V, ±2% Feedback Reference
Programmable Soft Start
Thermal Shutdown
