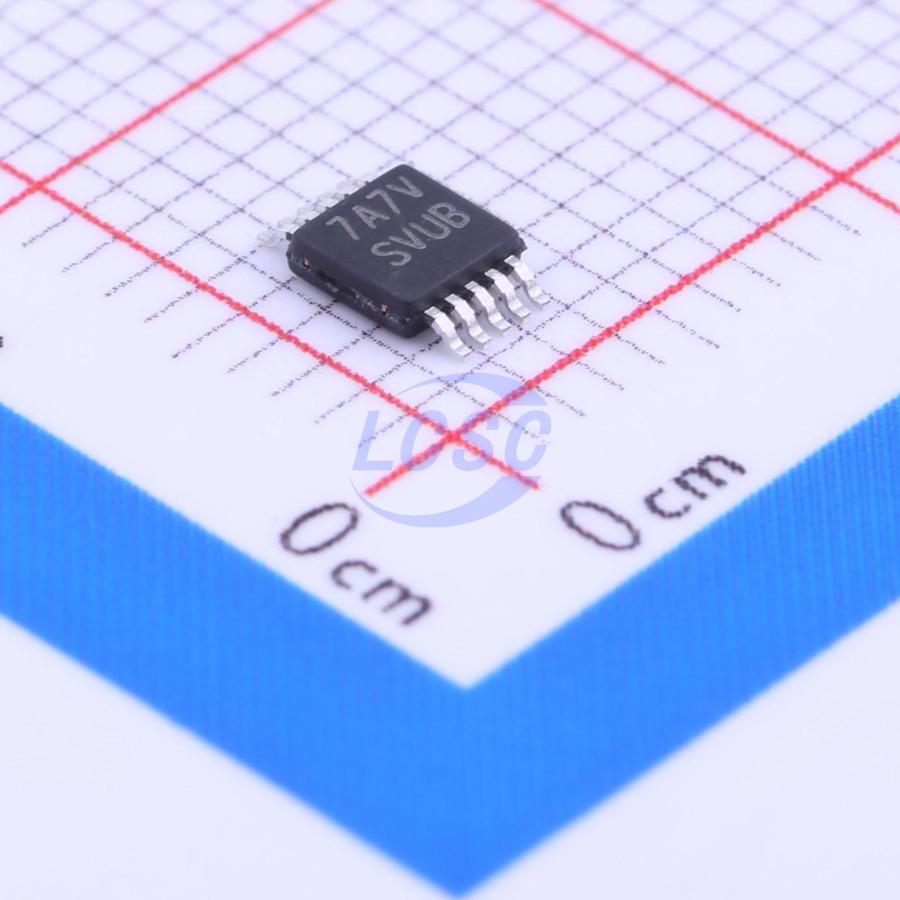

LM25011MYX/NOPB

The LM25011 constant on-time buck switching regulator incorporates all the functions necessary to implement a low-cost, high-efficiency buck bias regulator capable of providing up to 2A of load current. This high-voltage regulator includes an N-channel buck switch, startup regulator, current limit detection, and internal ripple control. The constant on-time regulation principle eliminates the need for loop compensation, provides fast load transient response, and simplifies circuit implementation. Operating frequency remains constant over line and load. Adjustable valley current limit detection provides smooth transition from constant voltage mode to constant current mode when the current limit is reached, without the use of current limit foldback. The PGD output indicates that the output voltage has risen to within 95% of the expected regulated value. Additional features include: low output ripple, VIN undervoltage lockout, adjustable soft-start timing, thermal shutdown, gate drive precharge, gate drive undervoltage lockout, and maximum duty cycle limiting. The LM25011A has a shorter minimum off-time than the LM25011, allowing higher frequency operation at lower input voltages.

Key features

• LM25011Q is an AEC-Q100 Grade 1 automotive-grade product (junction temperature range: -40℃ to 125℃)
• LM25011A enables low dropout operation at high switching frequencies
• Input operating voltage range: 6V to 42V
• Absolute maximum input rating: 45V
• Integrated 2A N-channel buck switch
• Adjustable current limit allows use of smaller inductors
• Adjustable output voltage starting from 2.51V
• Minimum ripple voltage at VOUT
• Power good output
• Switching frequency adjustable up to 2 MHz
• COT topology: switching frequency remains nearly constant over load current and input voltage variations
• Ultra-fast transient response
• No loop compensation required
• Stable operation with ceramic output capacitors
• Allows use of smaller output capacitors and current sense resistors
• Adjustable soft-start time
• Thermal shutdown
• Precision 2% feedback reference
• Package: 10-pin VSSOP
