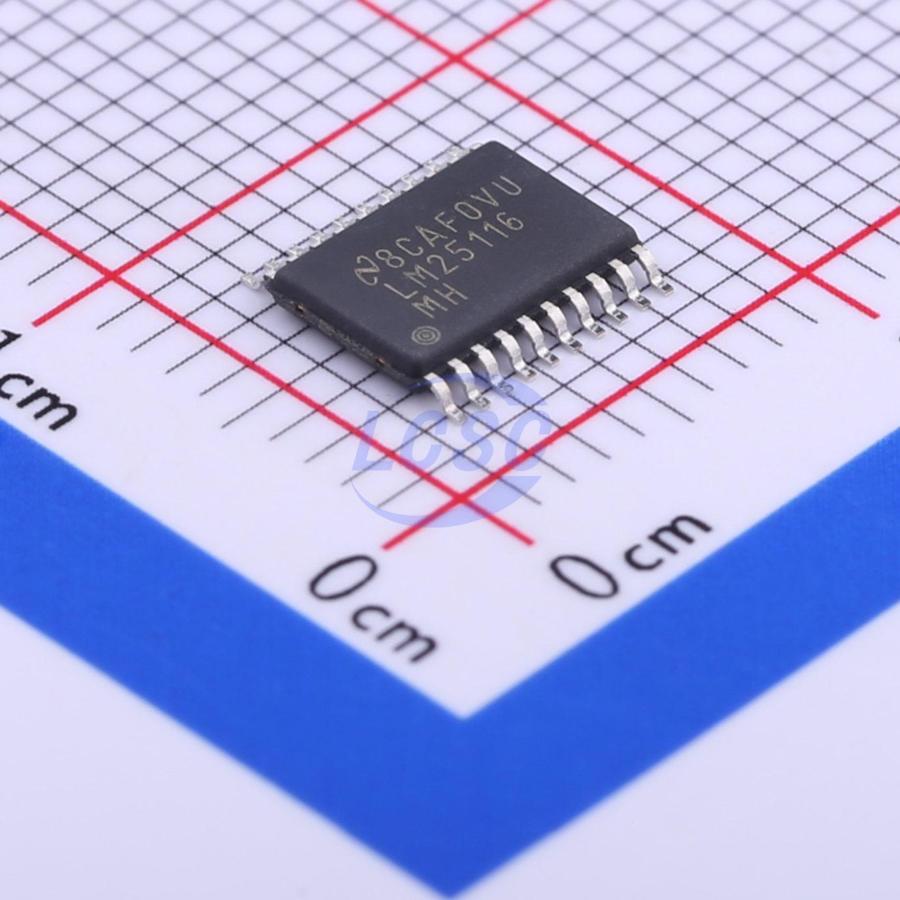

LM25116MHX/NOPB
1 1.215V~36V Adjustable Step-down type HTSSOP-20-EP DC DC Switching Controllers RoHS
Wide-Range Synchronous Buck Controller
- Manufacturer
- TI
- Manufacturer part #
- LM25116MHX/NOPB
- Store part #
- C390951
- Package / case
- HTSSOP-20-EP
- Category
- DC DC Switching Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,769 in stock
#C390951
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹403.58 | ₹403.58 |
| 10+ | ₹344.22 | ₹3,442.20 |
| 30+ | ₹308.99 | ₹9,269.70 |
| 100+ | ₹273.33 | ₹27,333.00 |
| 500+ | ₹256.81 | ₹1,28,405.00 |
| 1,000+ | ₹249.41 | ₹2,49,410.00 |
1 × ₹403.58
₹403.58
excl. GST
₹476.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM25116MHX/NOPB
₹403.58 for 1 + GST
Specifications
- Synchronous Rectifier
- Yes
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Hiccup current limiting;Adjustable soft-start;Frequency synchronization;External compensation;Light load efficient mode
- Number of Channels
- 1
- Topology
- Buck
- Operating Voltage
- 6V~42V
- Switch tube (built-in/external)
- External
- Output Voltage
- 1.215V~36V
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1MHz
- Output Type
- Adjustable
- Function
- Step-down type
- Quiescent Current
- 4.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.189 g
Overview
The LM25116 is a synchronous buck controller intended for step-down regulator applications from a high voltage or widely varying input supply. The control method is based upon current mode control using an emulated current ramp. Current mode control provides inherent line feedforward, cycle-bycycle current limiting and ease of loop compensation. The use of an emulated control ramp reduces noise sensitivity of the pulse-width modulation circuit, allowing reliable control of very small duty cycles necessary in high input voltage applications. The operating frequency is programmable from 50 kHz to 1 MHz. The LM25116 drives external high-side and low-side NMOS power switches with adaptive deadtime control. A user-selectable diode emulation mode enables discontinuous mode operation for improved efficiency at light load conditions. A low quiescent current shutdown disables the controller and consumes less than 10 μA of total input current. Additional features include a high voltage bias regulator, automatic switch-over to external bias for improved efficiency, thermal shutdown, frequency synchronization, cycle-by-cycle current limit and adjustable line undervoltage lockout. The device is available in a power enhanced 20-pin HTSSOP package featuring an exposed die attach pad to aid thermal dissipation.
Applications
- Automotive Infotainment
- Industrial DC-DC Motor Drivers
- Automotive USB Adapters
- Telecom Servers
Key features
- Emulated Peak Current Mode
- Wide Operating Range (Up to 42 V)
- Low I_Q Shutdown (<10 μA)
- Drives Standard or Logic Level MOSFETs
- Robust 3.5-A Peak Gate Drive
- Free-Run or Synchronous Operation to 1 MHz
- Optional Diode Emulation Mode
- Programmable Output From 1.215 V to 36 V
- Precision 1.5% Voltage Reference
- Programmable Current Limit
- Programmable Soft Start
- Programmable Line Undervoltage Lockout
- Automatic Switch to External Bias Supply
- 20-Pin HTSSOP Exposed Pad
- Thermal Shutdown
