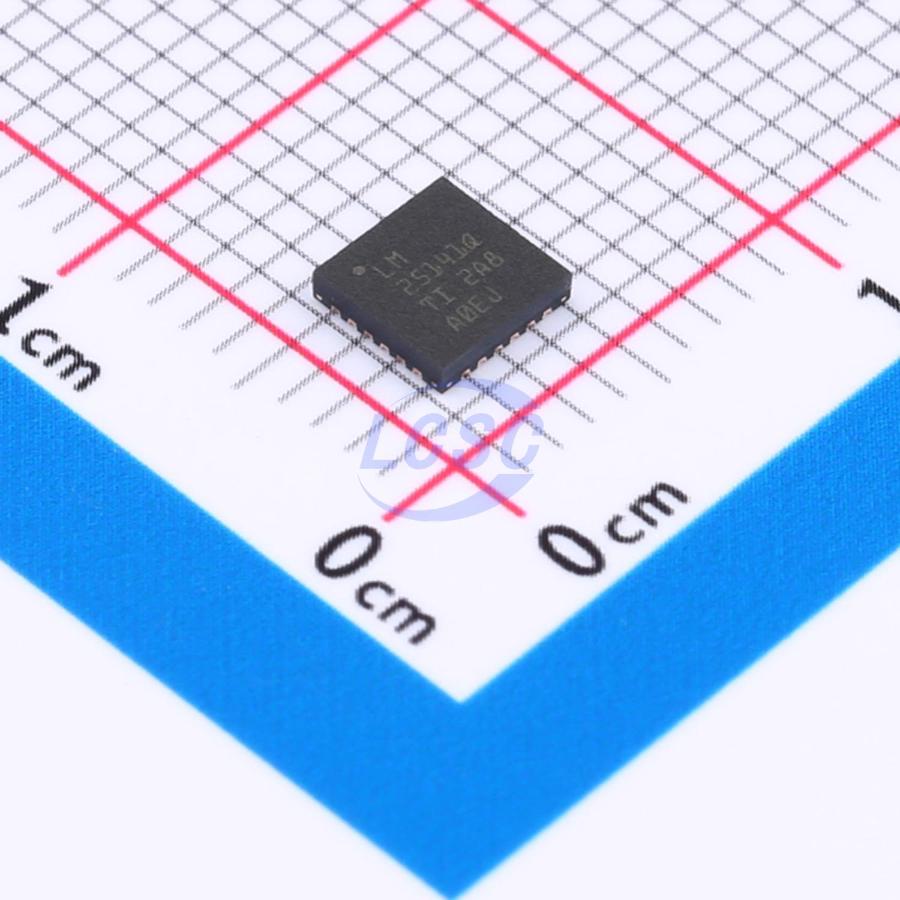

LM25141QRGERQ1
Buck Switching Regulator IC Adjustable 1.5V~15V 1 Output VQFN-24(4x4)
2.2MHz, 42V synchronous buck controller
- Manufacturer
- TI
- Manufacturer part #
- LM25141QRGERQ1
- Store part #
- C3198174
- Package / case
- VQFN-24(4x4)
- Category
- DC DC Switching Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,005 in stock
#C3198174
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹138.81 | ₹138.81 |
| 10+ | ₹124.20 | ₹1,242.00 |
| 30+ | ₹116.25 | ₹3,487.50 |
| 100+ | ₹110.23 | ₹11,023.00 |
| 500+ | ₹106.16 | ₹53,080.00 |
| 1,000+ | ₹104.21 | ₹1,04,210.00 |
1 × ₹138.81
₹138.81
excl. GST
₹163.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM25141QRGERQ1
₹138.81 for 1 + GST
Specifications
- Synchronous Rectifier
- Yes
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Frequency synchronization;EMI optimization (spread spectrum);Light load efficient mode;Operating status indication
- Number of Channels
- 1
- Topology
- Buck
- Operating Voltage
- 3.8V~42V
- Switch tube (built-in/external)
- External
- Output Voltage
- 1.5V~15V
- Operating Temperature
- -40℃~+125℃@(TA)
- Frequency - Switching
- 2.2MHz
- Output Type
- Adjustable
- Function
- Step-down type
- Quiescent Current
- 35uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.166 g
Overview
LM25141-Q1 is a synchronous buck converter designed for high-voltage wide input voltage step-down regulator applications. The control method is peak current mode control, which provides internal line feedforward, cycle-by-cycle current limiting, and simplified loop compensation. LM25141-Q1 features slew rate control to easily meet CISPR and automotive EMI requirements. LM25141-Q1 offers two selectable switching frequencies: 2.2MHz and 440kHz. The gate driver features slew rate control that can be adjusted to reduce EMI. Under light-load or no-load conditions, LM25141-Q1 improves low-power efficiency by operating in pulse-skipping mode. LM25141-Q1 incorporates a high-voltage bias regulator that automatically switches to an external bias supply, reducing IQ current from VIN. Additional features include frequency synchronization, cycle-by-cycle current limiting, hiccup-mode fault protection under sustained overload conditions, and a power-good output.
Applications
- Infotainment systems
- Dashboard
- Advanced Driver Assistance Systems (ADAS)
Key features
- AEC-Q100 qualified for automotive applications
- Device temperature grade 1: ambient operating temperature range –40°C to +125°C
- Device HBM ESD classification level 2
- Device CDM ESD classification level C4B
- VIN 3.8V to 42V (absolute maximum 47V)
- Output: fixed voltage 3.3V, 5V, or adjustable voltage 1.5V to 15V (accuracy ±0.8%)
- Selectable frequency shift via analog voltage or RT resistor
- CISPR 25 / EN 55025 EMI compliant
- 2.2MHz or 440kHz fixed switching frequency, accuracy ±5%
- High-side and low-side gate drivers with slew rate control
- Optional spread spectrum
- Optional synchronization to external clock
- Shutdown mode IQ: 10μA (typical)
- Low-power standby mode IQ: 35μA (typical)
- Current limit threshold 75mV, accuracy ±0.9%
- External resistor or DCR current sensing
- Output enable logic input
- Hiccup mode for sustained overload conditions
- Power good output
- Selectable diode emulation or forced PWM
- VQFN-24 package with wettable flanks
- Create custom designs using LM25141-Q1 with WEBENCH Power Designer
