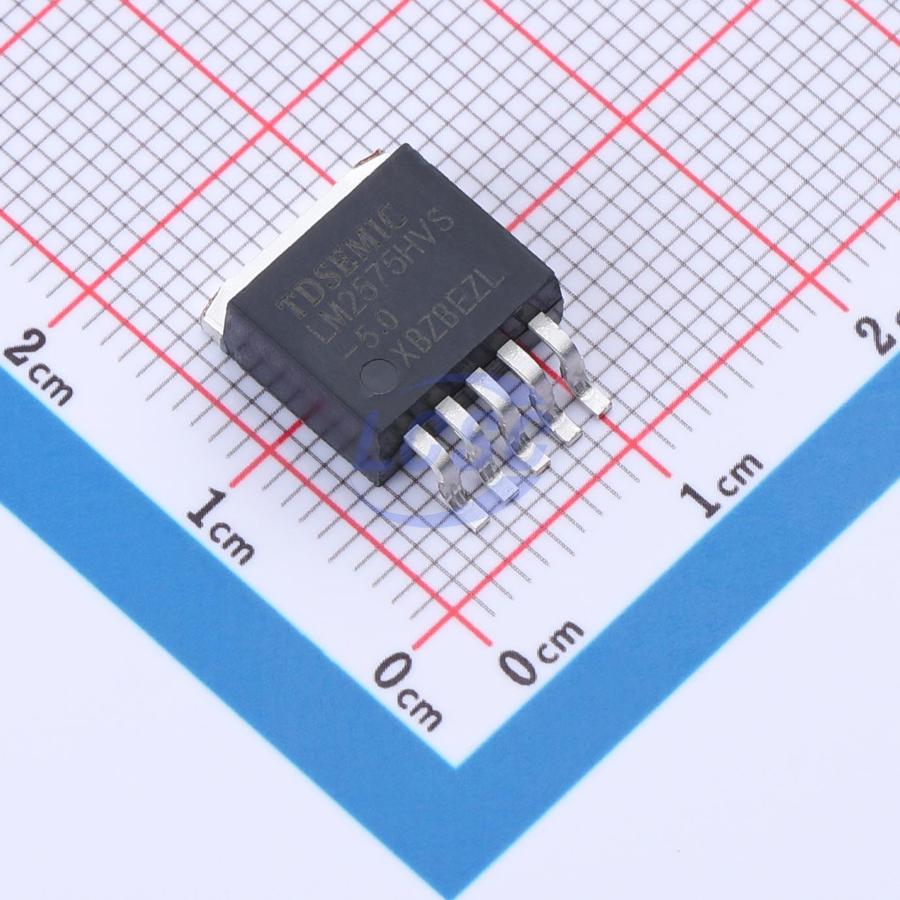

LM2575HVS-5.0-TD

The LM2575HV series regulators are monolithic integrated circuits that provide all active functions required for a step-down switching regulator, capable of driving a 3A load with excellent line and load regulation. The series offers fixed output voltages of 3.3V, 5V, and 12V, as well as an adjustable output version. These regulators require a minimum number of external components, are easy to use, and incorporate internal frequency compensation and a fixed-frequency oscillator. The LM2575HV series serves as a highly efficient replacement for popular three-terminal linear regulators, significantly reducing heatsink size and, in some cases, eliminating the need for a heatsink altogether. A range of standard inductors optimized for the LM2575HV are available from multiple manufacturers, greatly simplifying switching power supply design. Additional features include: output voltage guaranteed within ±4% tolerance under specified input voltage and output load conditions; oscillator frequency guaranteed within ±10% tolerance. The device includes an external shutdown function with a typical standby current of 50μA. The output switch features cycle-by-cycle current limiting and thermal shutdown for full protection under fault conditions. The LM2575HV is available in TO220-5 and TO263-5 packages.

Applications

• High-efficiency, simple step-down regulator
• High-efficiency pre-regulator for linear regulators
• Board-level switching regulator
• Positive-to-negative voltage converter

Key features

• Available in 3.3V, 5V, 12V fixed output and adjustable output versions
• Wide input voltage range, up to 40V to 60V for high-voltage versions
• High efficiency
• 3A rated output current
• 52kHz fixed-frequency internal oscillator
• TTL shutdown capability with low-power standby mode
• Compatible with standard off-the-shelf inductors
• Thermal shutdown and current limiting protection
• Adjustable version output voltage range: 1.23V to 57V, ±4% maximum deviation under specified line and load conditions
