Slkor

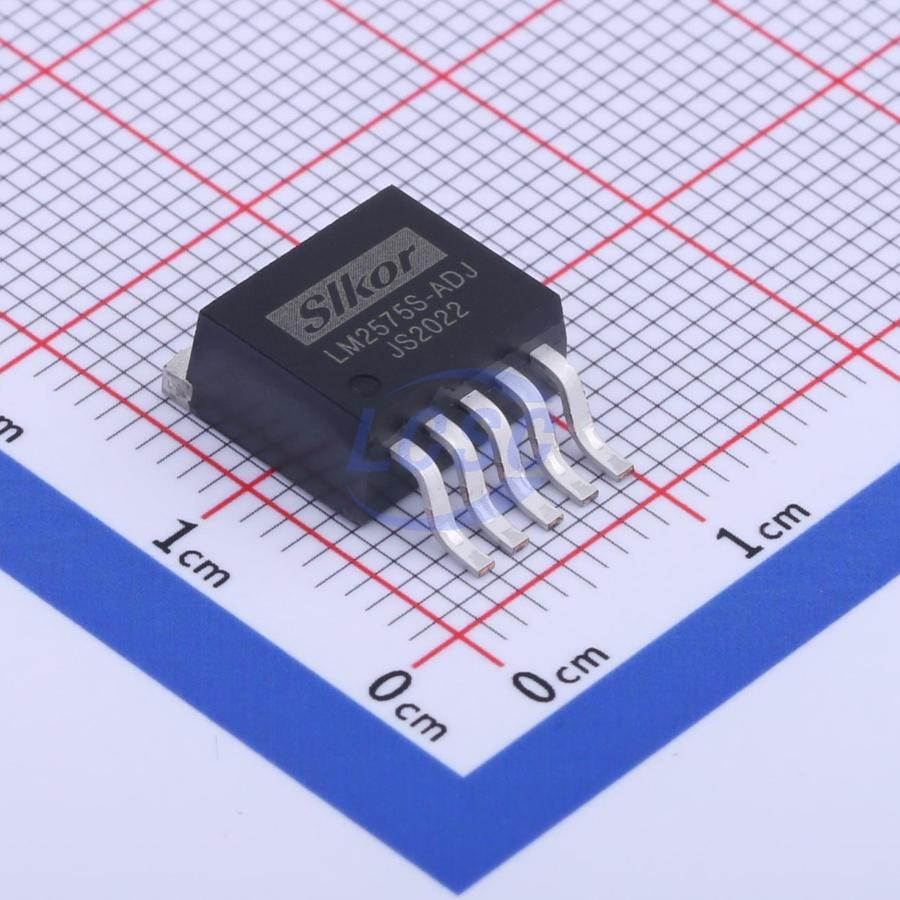

LM2575S-ADJ

52kHz Step-down type Adjustable 1A 1.23V~35V TO-263-5 Voltage Regulators - DC DC Switching Regulators

TO-263-5RoHSActive

1A & 3A Micro Converter Switching Voltage Regulators

Manufacturer: Slkor
Manufacturer part #: LM2575S-ADJ
Store part #: C880734
Package / case: TO-263-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,228 in stock

#C880734

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹82.15	₹82.15
10+	₹67.16	₹671.60
30+	₹59.55	₹1,786.50
100+	₹51.94	₹5,194.00
500+	₹42.81	₹21,405.00
800+	₹40.64	₹32,512.00

Quantity (min 1)

1 × ₹82.15

₹82.15

excl. GST

₹96.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 800 per reel

LM2575S-ADJ

₹82.15 for 1 + GST

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 52kHz
Function: Step-down type
Number of Outputs: 1
Topology: Buck
Output Type: Adjustable
Operating Voltage: 4V~40V
Switch tube (built-in/external): External
Output Current: 1A
Output Voltage: 1.23V~35V
Quiescent Current: 5mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 800 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.849 g

Overview

The LM2575/6 series switching regulators are monolithic integrated circuits designed for use in “buck" or "buck/ boost" regulator applications requiring accurate output voltages over combined variations of line, load and temperature. This unique series greatly simplifies switching power supply design. The LM2575 has a maximum output current of 1A and the LM2576 is rated for3A. The LM2575/6 series miniconverters include a switching regulator and compensation network all within the same package. Just add a choke, catch diode and two capacitors to obtain an efficient DC-to-DC converter. The current limit and thermal shutdown features of the LM2575/6 series fully protect the device against overstress conditions. The LM2575/6 series offers an alternative to popular 3 terminal linear regulators by providing higher efficiency with reduced heatsink size. In many applications a heat sink will not be required.
