HGSEMI

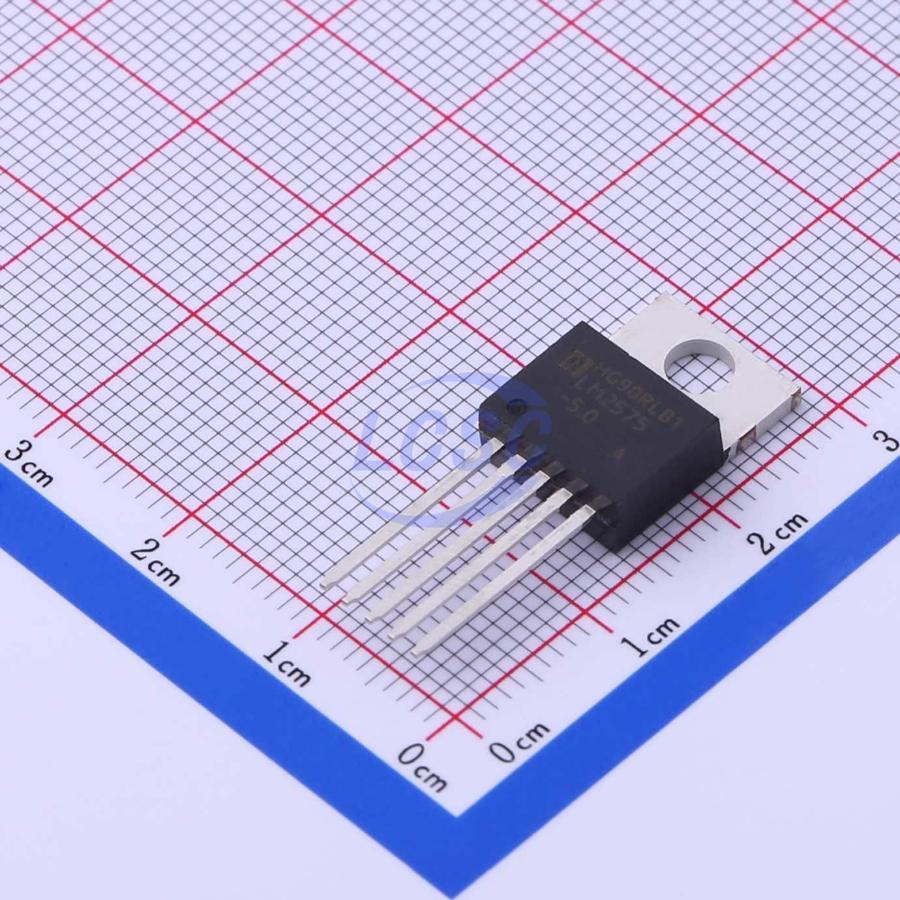

LM2575T-5.0

Step-down type 52kHz Fixed 5V 1A TO-220-5 Voltage Regulators - DC DC Switching Regulators

TO-220-5RoHSActive

STEP-DOWN SWITCHING VOLTAGE REGULATOR

Manufacturer: HGSEMI
Manufacturer part #: LM2575T-5.0
Store part #: C434580
Package / case: TO-220-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,681 in stock

#C434580

Stock & price checked 20 h ago

Quantity	Unit price	Pack price
1+	₹75.77	₹75.77
10+	₹59.92	₹599.20
50+	₹53.20	₹2,660.00
100+	₹44.73	₹4,473.00
500+	₹40.81	₹20,405.00
1,000+	₹38.64	₹38,640.00

Quantity (min 1)

1 × ₹75.77

₹75.77

excl. GST

₹89.41 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

LM2575T-5.0

₹75.77 for 1 + GST

Specifications

Operating Temperature: 0℃~+85℃@(TJ)
Function: Step-down type
Frequency - Switching: 52kHz
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Overcurrent Protection
Topology: Buck
Output Type: Fixed
Operating Voltage: 4.75V~40V
Switch tube (built-in/external): Built-in
Output Voltage: 5V
Output Current: 1A
Quiescent Current: 10mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 2.8 g

Overview

The LM2575 series regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 2A load with excellent line and load regulation. The series offers fixed output voltage options of 3.3V, 5V, 12V, and 15V, as well as an adjustable output version. These regulators include internal frequency compensation and a fixed-frequency oscillator, minimizing external component count for ease of use. Efficiency is significantly higher than that of common three-terminal linear regulators, making them an ideal replacement that typically requires no heatsink or only a small one. A standard inductor series optimized for use with the LM2575 is available from multiple inductor manufacturers, greatly simplifying switching power supply design. Additional features include: guaranteed output voltage within ±4% and oscillator frequency within ±10% under specified input voltage and output load conditions. An external shutdown circuit is also provided, with a typical standby current of 50μA. The output switch incorporates cycle-by-cycle current limiting and thermal shutdown for full protection under fault conditions.

Applications

Simple, high-efficiency buck regulator
High-efficiency pre-regulator for linear regulators
On-board switching regulator
Positive-to-negative voltage converter
Negative boost converter
Battery charger power supply

Key features

Fixed output voltage options: 3.3V, 5V, 12V, 15V; adjustable output voltage versions available
Adjustable output versions: output voltage range 1.23V ~ 37V (57V for high-voltage versions) under specified line and load conditions, maximum error +4%
Guaranteed 2A output current
Wide input voltage range, up to 60V for high-voltage versions
Only 4 external components required
52kHz fixed-frequency internal oscillator
TTL shutdown capability with low-power standby mode
High efficiency
Compatible with off-the-shelf standard inductors
Thermal shutdown and current limiting protection
