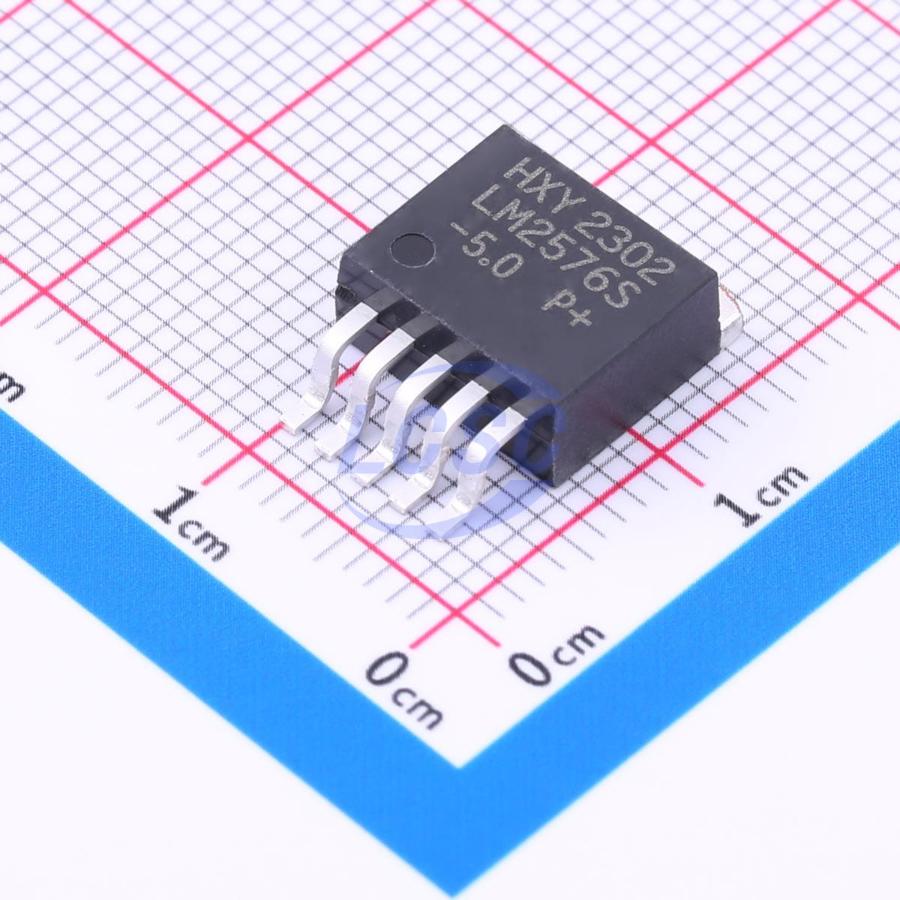

LM2576S-5.0

The LM2576S series are easy-to-use fixed and adjustable step-down switching regulators. The series offers fixed output voltage versions (3.3V, 5V) as well as an adjustable output voltage version. Both versions can drive 2A loads with excellent line and load regulation. Requiring only a minimum of external components, these regulators are simple to use and incorporate internal frequency compensation and a fixed-frequency oscillator. Output voltage is guaranteed to within ±3% tolerance under specified input voltage and output load conditions. Oscillator frequency is guaranteed to within ±15% tolerance. An external shutdown function is included, with a typical standby current of 80μA. Self-protection features include a two-stage frequency-reducing current limit for the output switch, as well as thermal shutdown to provide complete protection under fault conditions.

Applications

• Simple and efficient buck regulator
• On-board switching regulator
• Positive-to-negative converter
• LCD monitors and LCD TVs
• Battery chargers

Key features

• 3.3V, 5V, and adjustable output versions
• Adjustable output range from 1.23V to 37V
• Fixed 120kHz frequency internal oscillator
• Guaranteed 2A output load current
• Input voltage range up to 40V
• Low quiescent current standby mode, IQ typical 80μA
• TTL shutdown capability
• Excellent line and load regulation
• Only 4 external components required
• High efficiency
• Thermal shutdown and current limiting protection
