XBLW

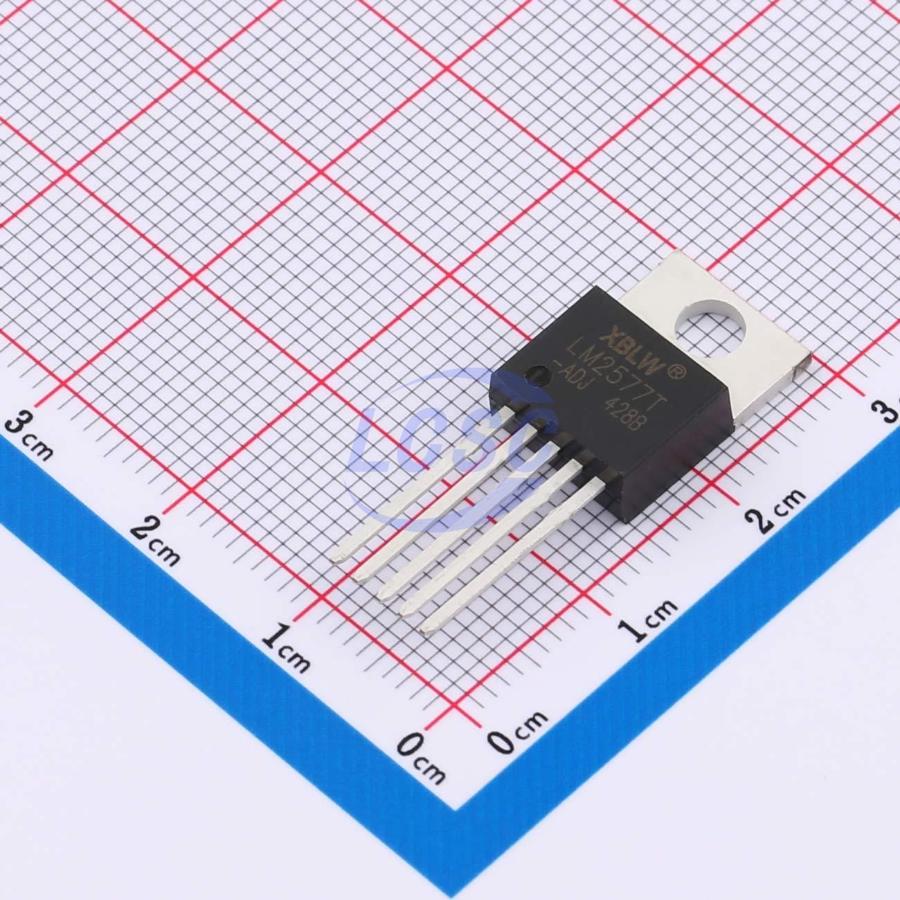

LM2577T-ADJ(XBLW)

52kHz Boost Adjustable 3A TO-220-5 Voltage Regulators - DC DC Switching Regulators RoHS

TO-220-5ROHS CompliantActive

Step-Up Voltage Regulator

Manufacturer: XBLW
Manufacturer part #: LM2577T-ADJ(XBLW)
Store part #: C41361401
Package / case: TO-220-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

978 in stock

#C41361401

Stock & price checked 28 h ago

Quantity	Unit price	Pack price
1+	₹194.67	₹194.67
10+	₹160.96	₹1,609.60
50+	₹142.47	₹7,123.50
100+	₹121.58	₹12,158.00
500+	₹112.23	₹56,115.00
1,000+	₹108.10	₹1,08,100.00

Quantity (min 1)

1 × ₹194.67

₹194.67

excl. GST

₹229.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

LM2577T-ADJ(XBLW)

₹194.67 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Number of Outputs: 1
Frequency - Switching: 52kHz
Function: Boost
Features: Overcurrent Protection
Topology: Boost;Flyback;Forward
Output Type: Adjustable
Operating Voltage: 3.5V~40V
Switch tube (built-in/external): Built-in
Output Current: 3A
Quiescent Current: 7.5mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 2.892 g

Overview

The LM2577 is a monolithic integrated circuit that provide all of the power and control functions for step-up (boost), flyback, and forward converter switching regulators. The device is available in three different output voltage versions: 12V, 15V, and adjustable. Requiring a minimum number of external components, these regulators are cost effective, and simple to use. Included on the chip is a 3.0A NPN switch and its associated protection circuitry, consisting of current and thermal limiting, and undervoltage lockout. Other features include a 52 kHz fixed-frequency oscillator that requires no external components, a soft start mode to reduce in-rush current during start-up, and current mode control for improved rejection of input voltage and output load transients.

Applications

Simple boost regulator
Flyback and forward regulators
Multiple-output regulator

Key features

TO-263-5
Requires few external components
NPN output switches 3.0A, can stand off 65V
Wide input voltage range: 3.5V to 40V
Current-mode operation for improved transient response, line regulation, and current limit
52 kHz internal oscillator
Soft-start function reduces in-rush current during start-up
Output switch protected by current limit, under-voltage lockout, and thermal shutdown
