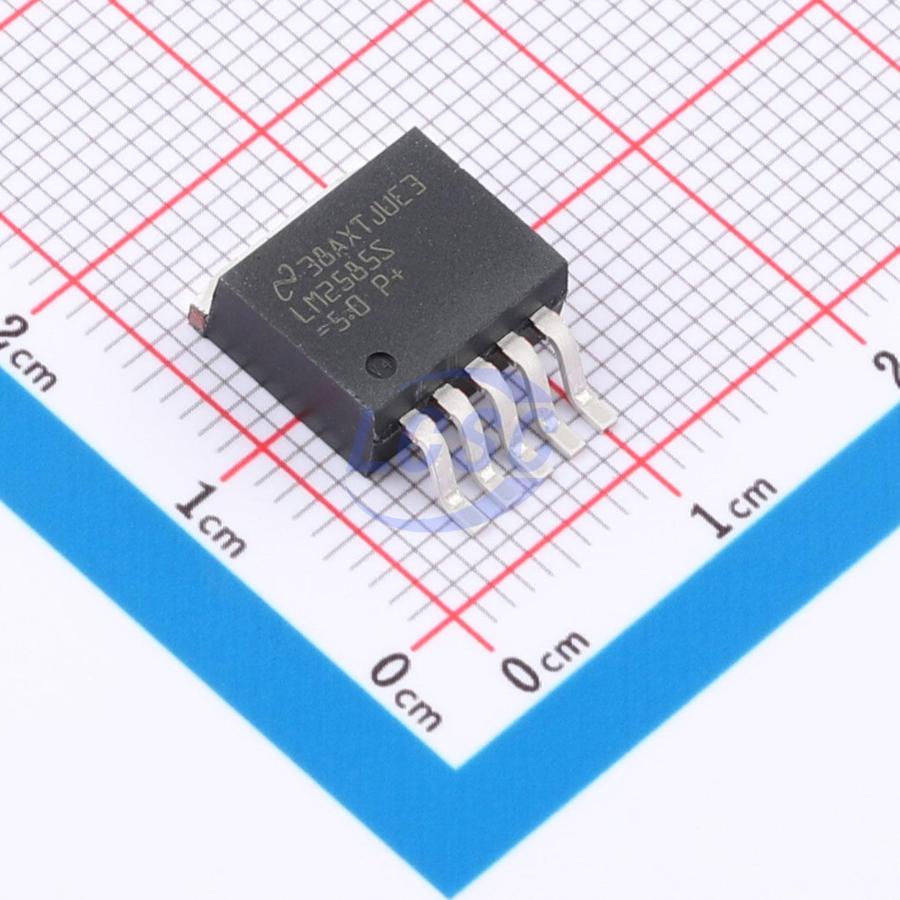

LM2585SX-5.0/NOPB

100kHz Boost Fixed 5V 3A DDPAK(TO-263-5) Voltage Regulators - DC DC Switching Regulators RoHS

DDPAK(TO-263-5)ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: LM2585SX-5.0/NOPB
Store part #: C2071625
Package / case: DDPAK(TO-263-5)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5 in stock

#C2071625

Stock & price checked 14 h ago

Quantity	Unit price	Pack price
1+	₹1,405.44	₹1,405.44
10+	₹1,360.72	₹13,607.20

Quantity (min 1)

1 × ₹1,405.44

₹1,405.44

excl. GST

₹1,658.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 500 per reel

LM2585SX-5.0/NOPB

₹1,405.44 for 1 + GST

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 100kHz
Function: Boost
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Overcurrent Protection
Output Type: Fixed
Topology: Boost;Flyback
Operating Voltage: 4V~40V
Switch tube (built-in/external): Built-in
Output Voltage: 5V
Output Current: 3A
Quiescent Current: 11mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 10.28 g
