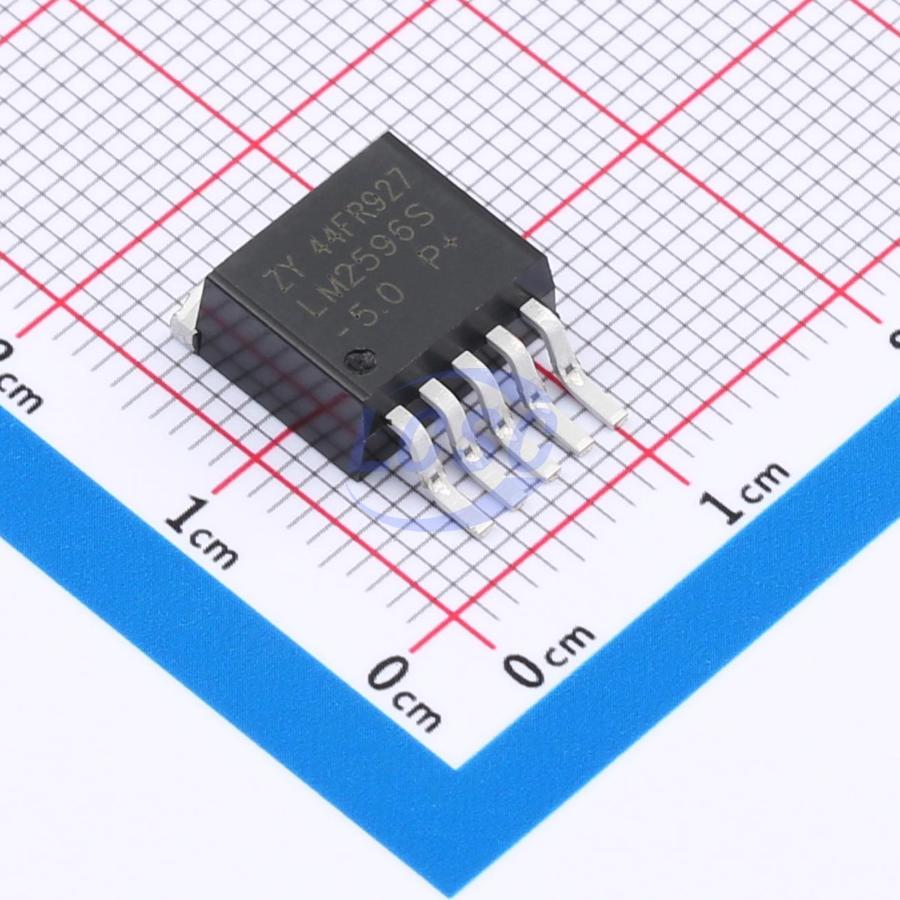

LM2596-5.0FW05ARHQ

The LM2596 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down(buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version. Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation, and a fixed-frequency oscillator. The LM2596 series operates at a switching frequency of 150 kHz, thus allowing smaller sized filter components than what can be required with lower frequency switching regulators.

Key features

• 3.3-V, 5-V, 12-V, and adjustable output versions
• Adjustable version output voltage range: 1.2-V to 37-V +4% maximum over line and load conditions
• 3-A output load current
• Input voltage range up to 40 V
• Requires only four external components
• Excellent line and load regulation specifications
• 150-kHz fixed-frequency internal oscillator
• TTL shutdown capability
• Low power standby mode, typically 80 μA
• High efficiency
• Uses readily available standard inductors
• Thermal shutdown and current-limit protection
