HANSCHIP semiconductor

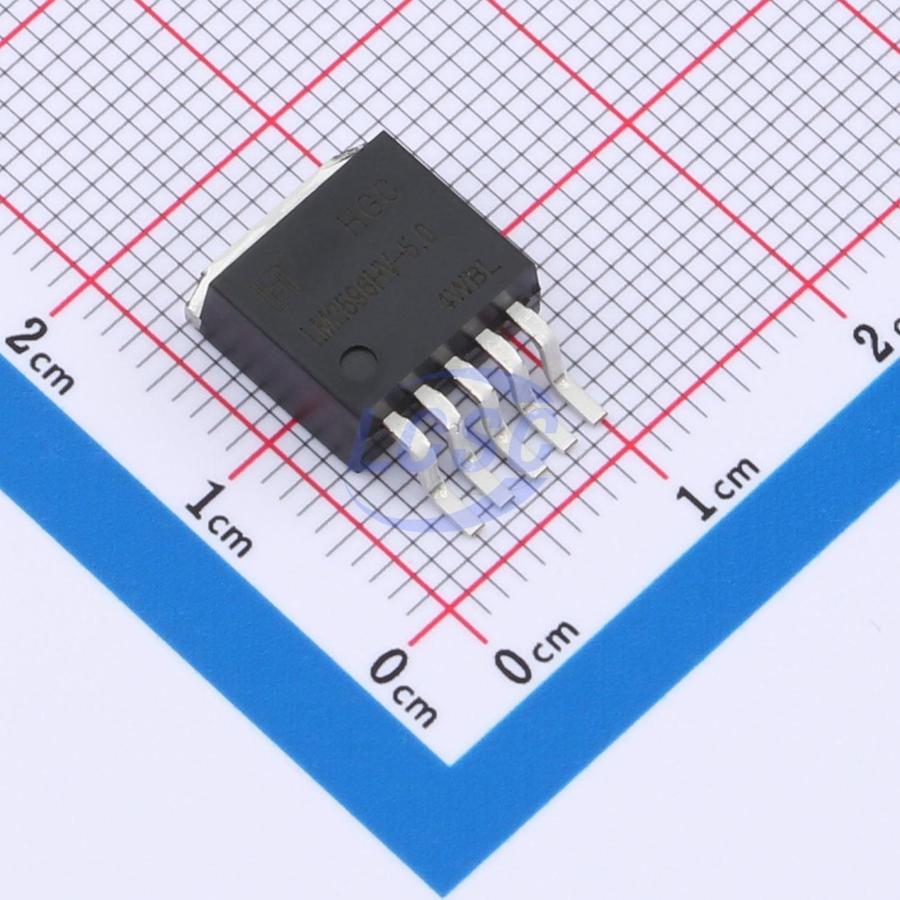

LM2596HVS-5.0RG

Buck Switching Regulator IC Fixed 4.8V~5.2V 1 Output 3A TO-263-5

TO-263-5ROHS CompliantActive

3A 150kHz DC switching voltage regulator circuit

Manufacturer: HANSCHIP semiconductor
Manufacturer part #: LM2596HVS-5.0RG
Store part #: C22439313
Package / case: TO-263-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,262 in stock

#C22439313

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹103.75	₹103.75
10+	₹83.08	₹830.80
30+	₹72.87	₹2,186.10
100+	₹62.43	₹6,243.00
500+	₹56.33	₹28,165.00
1,000+	₹53.29	₹53,290.00

Quantity (min 1)

1 × ₹103.75

₹103.75

excl. GST

₹122.43 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 500 per reel

LM2596HVS-5.0RG

₹103.75 for 1 + GST

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 150kHz
Function: Step-down type
Number of Outputs: 1
Features: Overcurrent Protection
Topology: Buck
Output Type: Fixed
Operating Voltage: 5V~57V
Switch tube (built-in/external): Built-in
Output Voltage: 4.8V~5.2V
Output Current: 3A
Quiescent Current: 2mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 2.512 g

Overview

This is a 150KHz fixed-frequency PWM DC-DC buck converter capable of 3A output current, featuring high efficiency, low ripple, high line regulation, and load regulation. The device operates in PWM mode, enabling linear duty cycle adjustment from 0 to 100%. An on-chip fixed-frequency oscillator and frequency compensation module minimize the required external component count. Additional integrated features include enable control with hysteresis, over-temperature protection, over-current protection, and secondary over-current protection. When secondary over-current protection is triggered, the operating frequency is reduced from 150KHz to 50KHz. The primary function is to convert high-ripple, high-noise, high-voltage DC input into stable, low-ripple, low-noise, low-voltage DC output. The product family is offered in four output voltage versions: fixed 3.3V, 5V, 12V, and an adjustable output voltage version.

Applications

LCD monitors
LCD TVs
Digital photo frames
TV set-top boxes
Modems
Telephone equipment
Network equipment

Key features

Input voltage range: 4.5V~40V (57V for high-voltage models)
Regulated output: 3.3V, 5V, 12V, 15V fixed output and adjustable output (adjustable range: 1.23V~37V, 54V for high-voltage models)
Adjustable duty cycle range: 0~100%
Minimum saturation voltage drop: 1.5V
Fixed operating frequency: 150KHz
Fixed output current capability: 3A
ON-OFF hysteresis switching function
Built-in over-temperature protection and over-current protection
Built-in frequency compensation
High efficiency, high line regulation and load regulation
