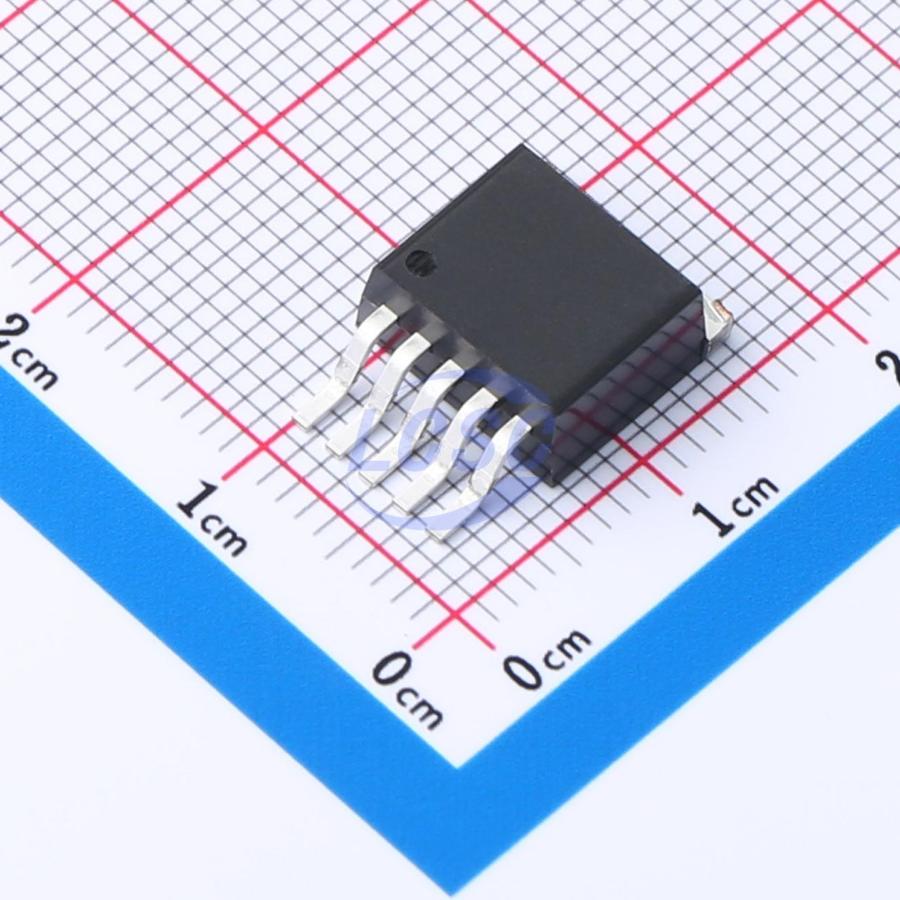

LM2596S-12
Buck Switching Regulator IC Fixed 12V 1 Output 3A TO-263-5L
TO-263-5LRoHSActive
DC-DC switching step-down converter
- Manufacturer
- GR
- Manufacturer part #
- LM2596S-12
- Store part #
- C19631824
- Package / case
- TO-263-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,723 in stock
#C19631824
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.47 | ₹55.47 |
| 10+ | ₹43.51 | ₹435.10 |
| 30+ | ₹38.29 | ₹1,148.70 |
| 100+ | ₹31.98 | ₹3,198.00 |
| 500+ | ₹29.16 | ₹14,580.00 |
| 800+ | ₹27.41 | ₹21,928.00 |
1 × ₹55.47
₹55.47
excl. GST
₹65.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 800 per reel
LM2596S-12
₹55.47 for 1 + GST
Specifications
- Operating Temperature
- -20℃~+70℃
- Frequency - Switching
- 170kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Topology
- Buck
- Output Type
- Fixed
- Operating Voltage
- 4.5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 12V
- Output Current
- 3A
- Quiescent Current
- 2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.154 g
Overview
The LM2596-xx series is a DC/DC step-down switching converter controlled by a fixed-frequency 170kHz PWM. It mainly consists of internal frequency compensation, fixed-frequency oscillator, built-in overcurrent protection, and power switch control circuits. Capable of driving 3A loads, it offers high efficiency, low ripple, and excellent line and load regulation. Only a minimal number of external components are required to implement DC/DC step-down voltage regulation, making it simple and practical. The PWM control circuit can linearly adjust the duty cycle from 0 to 100%. It supports external enable control. When overcurrent occurs, a built-in secondary overcurrent protection module activates, reducing the PWM frequency from 170kHz to 50kHz.
Applications
- LCD monitors and LCD TVs
- ADSL modems
- LED lighting fixtures, LED backlights
- Digital photo frames
- Telecommunications/networking equipment
Key features
- Built-in thermal shutdown protection
- Built-in overcurrent protection
- Built-in secondary overcurrent protection
- Excellent line and load regulation
- ON/OFF pin with hysteresis
- TTL-compatible shutdown capability
- Integrated high-efficiency power switch
- High efficiency
- Minimal external components
- Wide input voltage range: 4.5V~40V
- Fixed output voltage: 3.3V, 5V, 12V, etc.
- Adjustable output voltage range: 1.3V~37V (adjustable)
- High output accuracy: ±24%
- Fixed switching frequency: 170kHz
- Maximum duty cycle: 100%
- Maximum output current: 3A
- Minimum dropout voltage: 1.5V
- Package: TO220-5L, TO263-5L
