GREENMICRODatasheet (PDF)

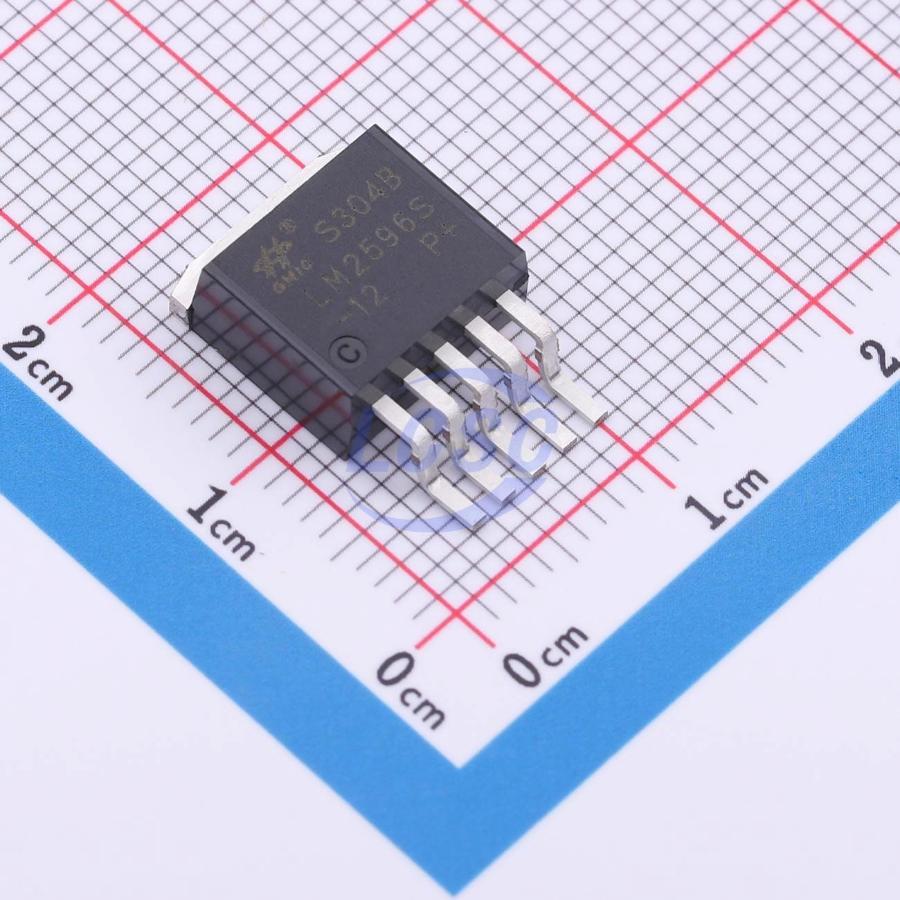

LM2596S-12TN
Step-down type 52kHz Fixed 12V 3A TO-263-5 Voltage Regulators - DC DC Switching Regulators
TO-263-5RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- LM2596S-12TN
- Store part #
- C51820308
- Package / case
- TO-263-5
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,095 in stock
#C51820308
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.84 | ₹219.20 |
| 50+ | ₹34.64 | ₹1,732.00 |
| 150+ | ₹30.69 | ₹4,603.50 |
| 500+ | ₹25.77 | ₹12,885.00 |
| 2,000+ | ₹23.58 | ₹47,160.00 |
| 5,000+ | ₹22.27 | ₹1,11,350.00 |
5 × ₹43.84
₹219.20
excl. GST
₹258.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM2596S-12TN
₹219.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 52kHz
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Fixed
- Topology
- Buck
- Operating Voltage
- 4.5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 12V
- Output Current
- 3A
- Quiescent Current
- 2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.311 g
Overview
This product is a high-efficiency step-down DC-DC converter featuring a fixed 52KHz switching frequency, capable of delivering up to 3A output current with low ripple, excellent line regulation, and load regulation characteristics. It integrates a fixed-frequency oscillator and frequency compensation circuitry to simplify circuit design. The PWM control loop enables linear duty cycle adjustment from 0% to 100%. The device incorporates a built-in enable function and output overcurrent protection. An internal compensation module helps reduce the external component count.
Applications
- LCD TVs and displays
- Digital photo frames
- Set-top boxes
- Routers
- Communication equipment power supply
Key features
- Wide input voltage range: 4.5V to 40V
- Output voltage adjustable from 1.23V to 37V
- Minimum dropout voltage: 1.5V
- Maximum switch current: 3A
- High efficiency
- TTL shutdown via EN pin
- Built-in thermal shutdown
- Fixed 5V, 12V, and adjustable (ADJ) output versions available
- Maximum duty cycle: 100%
- Fixed 52KHz switching frequency
- Integrated power transistor
- Excellent line and load regulation
- EN pin with hysteresis
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM2576S-12TN#C51820306GREENMICRO · TO-263-5 | GREENMICRO | TO-263-5 | 670 | ₹41.93 · 670 in stock | View |
 | LM2576S-12TO#C51820305GREENMICRO · TO-263-5 | GREENMICRO | TO-263-5 | 440 | ₹39.12 · 440 in stock | View |
