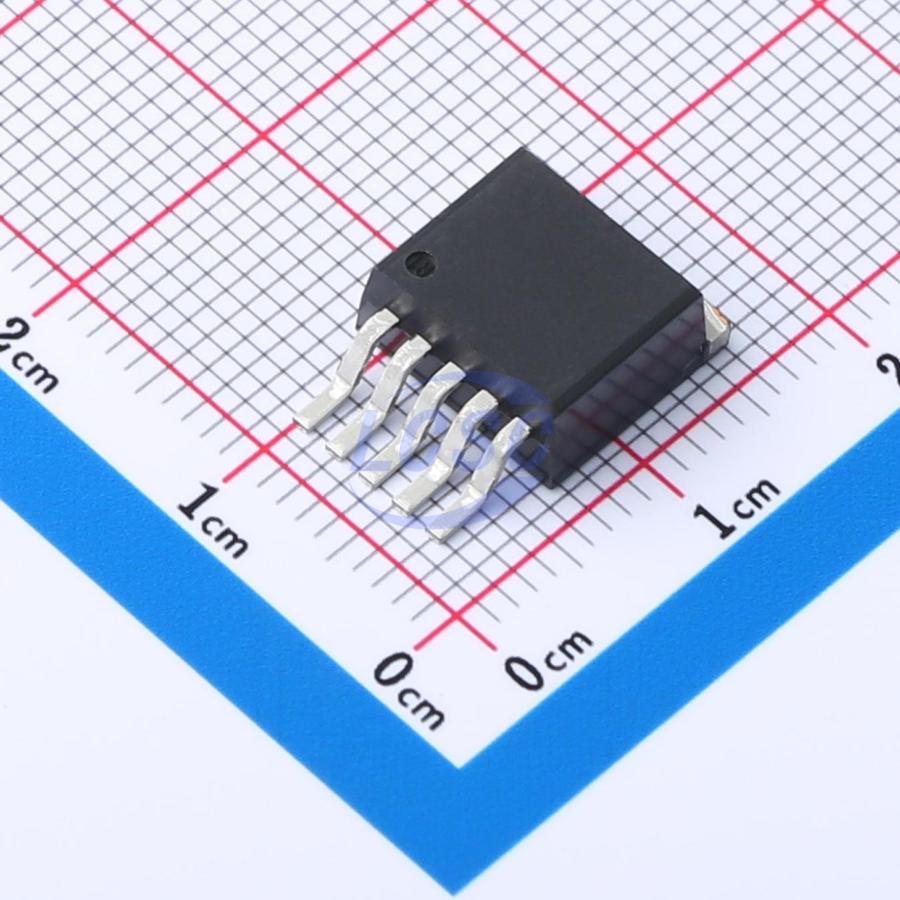

LM2596S-3.3

The LM2596-xx series is a DC/DC step-down switching converter controlled by a fixed-frequency 170kHz PWM. It mainly consists of internal frequency compensation, fixed-frequency oscillator, built-in overcurrent protection, and power switch control circuits. Capable of driving 3A loads, it offers high efficiency, low ripple, and excellent line and load regulation. Only a minimal number of external components are required to implement DC/DC step-down voltage regulation, making it simple and practical. The PWM control circuit can linearly adjust the duty cycle from 0 to 100%. It supports external enable control. When overcurrent occurs, a built-in secondary overcurrent protection module activates, reducing the PWM frequency from 170kHz to 50kHz.

Applications

• LCD monitors and LCD TVs
• ADSL modems
• LED lighting fixtures, LED backlights
• Digital photo frames
• Telecommunications/networking equipment

Key features

• Built-in thermal shutdown protection
• Built-in overcurrent protection
• Built-in secondary overcurrent protection
• Excellent line and load regulation
• ON/OFF pin with hysteresis
• TTL-compatible shutdown capability
• Integrated high-efficiency power switch
• High efficiency
• Minimal external components
• Wide input voltage range: 4.5V~40V
• Fixed output voltage: 3.3V, 5V, 12V, etc.
• Adjustable output voltage range: 1.3V~37V (adjustable)
• High output accuracy: ±24%
• Fixed switching frequency: 170kHz
• Maximum duty cycle: 100%
• Maximum output current: 3A
• Minimum dropout voltage: 1.5V
• Package: TO220-5L, TO263-5L
