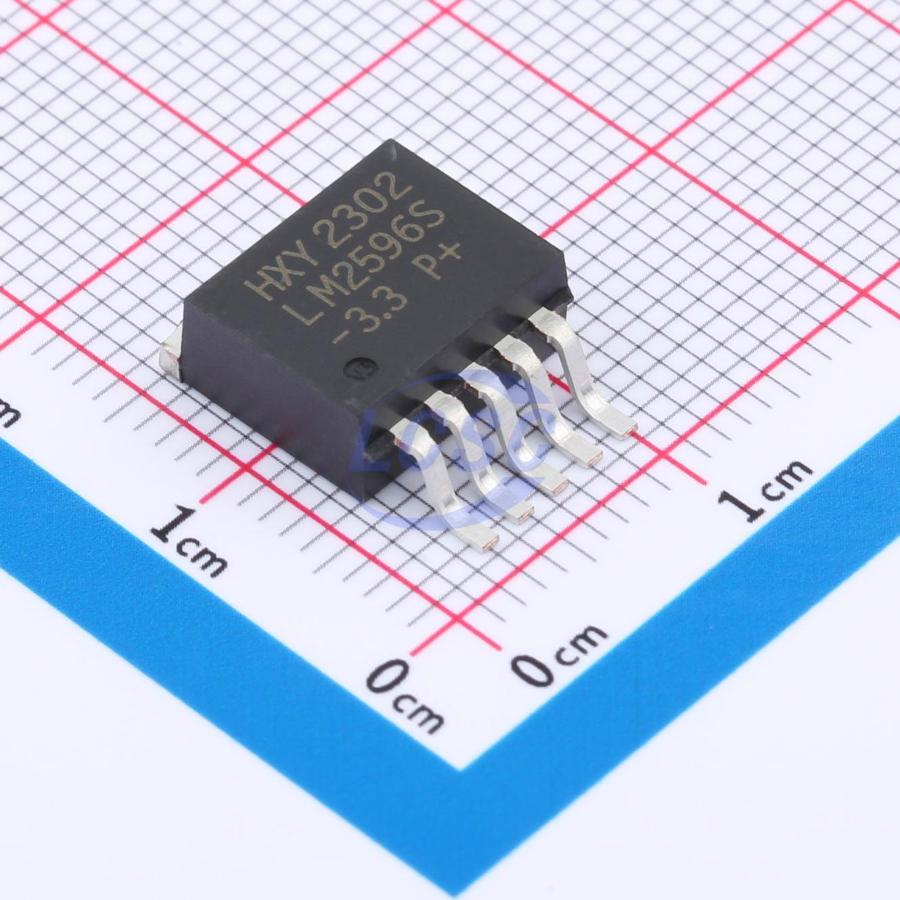

LM2596S-3.3-HXY

The LM2596S series are easy-to-use fixed and adjustable step-down switching regulators. The devices are available in 3.3V, 5V, 12V fixed output voltage versions and an adjustable output version. Both versions can drive 3.5A loads with excellent line and load regulation. These regulators require minimal external components, are simple to use, and incorporate internal frequency compensation and a fixed-frequency oscillator. Output voltage is guaranteed to within ±3% tolerance under specified input voltage and output load conditions. Oscillator frequency is guaranteed to within ±15%. The devices include an external shutdown function with a typical standby current of 80 μA. Self-protection features include two-stage frequency-reducing current limiting for the output switch and over-temperature shutdown, providing comprehensive protection under fault conditions.

Applications

• Simple and efficient step-down regulator
• Board-level switching regulator
• Positive-to-negative voltage converter
• LCD monitors and LCD TVs
• DVD recorders and PDP TVs

Key features

• Available in 3.3V, 5V, 12V fixed output voltage and adjustable output versions
• Output voltage adjustable from 1.23V to 37V
• Internal oscillator fixed frequency: 150KHz
• Guaranteed 3.5A output load current capability
• Input voltage range up to 45V
• Low-power standby mode with typical quiescent current IQ of 80μA
• TTL-level shutdown support
• Excellent line and load regulation
• Only 4 external components required
• High efficiency
• Thermal shutdown and current limiting protection
