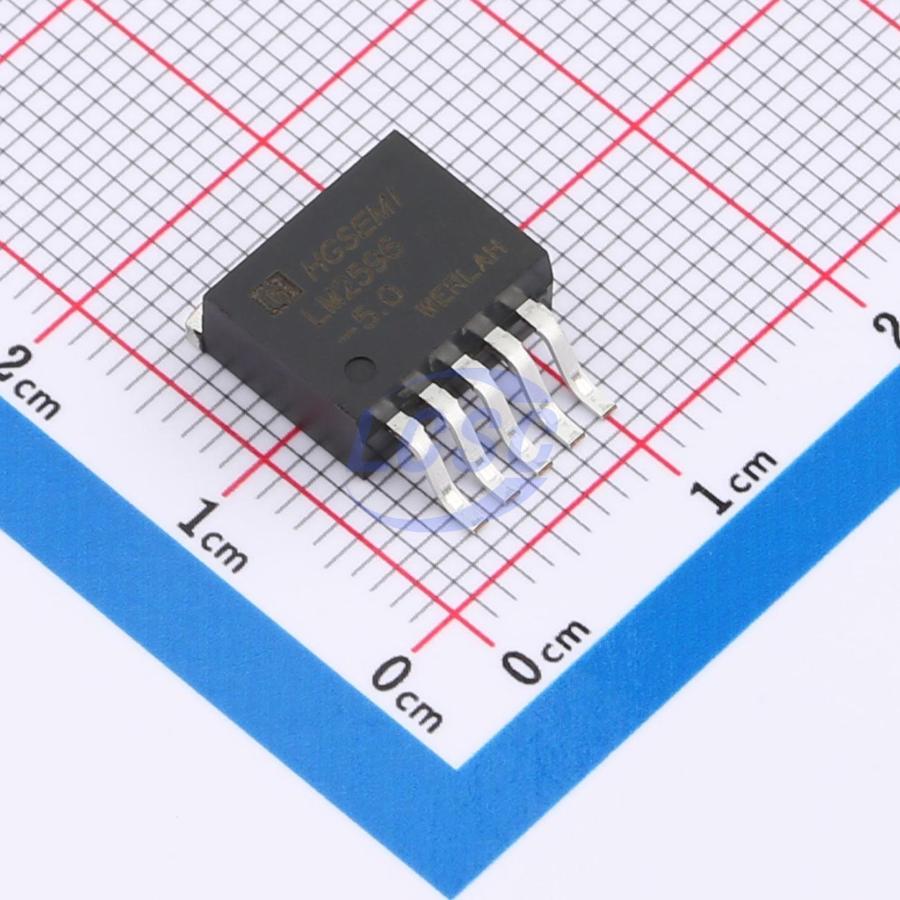

LM2596S-5.0/TR HGSEMI

LM2596S-5.0/TR

Buck Switching Regulator IC Fixed 5V 1 Output 3A TO-263-5

TO-263-5RoHSActive

3A 150kHz DC switching voltage regulator circuit

Manufacturer: HGSEMI
Manufacturer part #: LM2596S-5.0/TR
Store part #: C194349
Package / case: TO-263-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

30,135 in stock

#C194349

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹74.15	₹74.15
10+	₹63.07	₹630.70
30+	₹55.46	₹1,663.80
100+	₹48.94	₹4,894.00
500+	₹45.23	₹22,615.00
1,000+	₹43.92	₹43,920.00

Quantity (min 1)

1 × ₹74.15

₹74.15

excl. GST

₹87.50 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 500 per reel

LM2596S-5.0/TR

₹74.15 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 150kHz
Function: Step-down type
Number of Outputs: 1
Features: Overcurrent Protection
Output Type: Fixed
Topology: Buck
Operating Voltage: 5V~40V
Switch tube (built-in/external): Built-in
Output Voltage: 5V
Output Current: 3A
Quiescent Current: 5mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 2.728 g

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	LM2595S-5.0/TR#C316687HGSEMI · TO-263-5	HGSEMI	TO-263-5	500	₹93.18 · 500 in stock	View
	HG1501S-5.0/TR#C316690HGSEMI · TO-263-5	HGSEMI	TO-263-5	512	₹84.18 · 512 in stock	View
	LM2596S-5.0(HG)#C53433730HGSEMI · TO-263-5	HGSEMI	TO-263-5	269	₹59.63 · 269 in stock	View
	AP1501-5.0/TR#C356718HGSEMI · TO-263-5	HGSEMI	TO-263-5	610	₹80.49 · 610 in stock	View
	AP1501S-5.0/TR#C7432201HGSEMI · TO-263-5	HGSEMI	TO-263-5	On request	₹74.66 · 0 in stock	View
