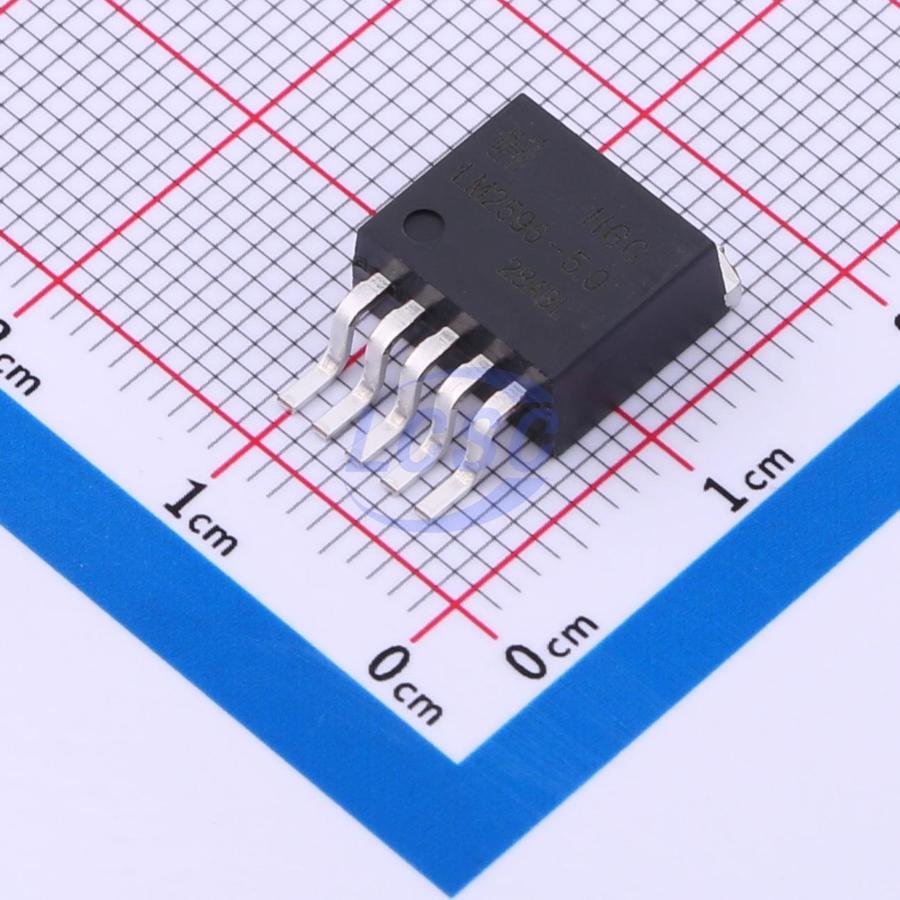

LM2596S-5.0RG

This is a 150KHz fixed-frequency PWM DC-DC buck converter capable of 3A output current, featuring high efficiency, low ripple, high line regulation, and load regulation. The device operates in PWM mode, enabling linear duty cycle adjustment from 0 to 100%. An on-chip fixed-frequency oscillator and frequency compensation module minimize the required external component count. Additional integrated features include enable control with hysteresis, over-temperature protection, over-current protection, and secondary over-current protection. When secondary over-current protection is triggered, the operating frequency is reduced from 150KHz to 50KHz. The primary function is to convert high-ripple, high-noise, high-voltage DC input into stable, low-ripple, low-noise, low-voltage DC output. The product family is offered in four output voltage versions: fixed 3.3V, 5V, 12V, and an adjustable output voltage version.

Applications

• LCD monitors
• LCD TVs
• Digital photo frames
• TV set-top boxes
• Modems
• Telephone equipment
• Network equipment

Key features

• Input voltage range: 4.5V~40V (57V for high-voltage models)
• Regulated output: 3.3V, 5V, 12V, 15V fixed output and adjustable output (adjustable range: 1.23V~37V, 54V for high-voltage models)
• Adjustable duty cycle range: 0~100%
• Minimum saturation voltage drop: 1.5V
• Fixed operating frequency: 150KHz
• Fixed output current capability: 3A
• ON-OFF hysteresis switching function
• Built-in over-temperature protection and over-current protection
• Built-in frequency compensation
• High efficiency, high line regulation and load regulation
