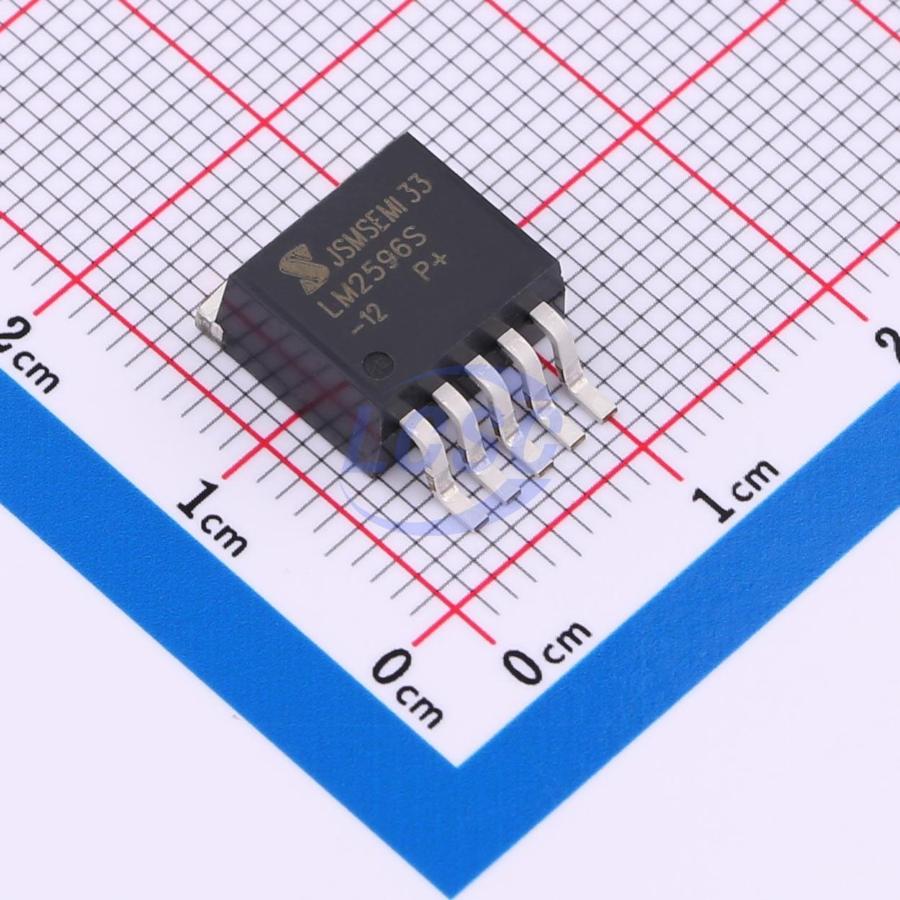

LM2596SX-12-JSM
Buck Switching Regulator IC Fixed 12V 1 Output 3A TO-263-5
TO-263-5ROHS CompliantActive
3A 150KHz DC regulated power supply converter
- Manufacturer
- JSMSEMI
- Manufacturer part #
- LM2596SX-12-JSM
- Store part #
- C22470414
- Package / case
- TO-263-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,340 in stock
#C22470414
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.30 | ₹186.50 |
| 50+ | ₹29.09 | ₹1,454.50 |
| 150+ | ₹25.59 | ₹3,838.50 |
| 1,000+ | ₹22.00 | ₹22,000.00 |
| 2,000+ | ₹20.04 | ₹40,080.00 |
| 5,000+ | ₹18.88 | ₹94,400.00 |
5 × ₹37.30
₹186.50
excl. GST
₹220.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LM2596SX-12-JSM
₹186.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Number of Outputs
- 1
- Frequency - Switching
- 127kHz~173kHz
- Function
- Step-down type
- Features
- Overcurrent Protection
- Topology
- Buck
- Output Type
- Fixed
- Operating Voltage
- 5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 12V
- Output Current
- 3A
- Quiescent Current
- 2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.582 g
Overview
The LM2596SX/LM2596HV is a 150KHz fixed-frequency PWM DC-DC switching voltage regulator featuring 3A output current drive capability, high efficiency, low ripple, and excellent line and load regulation. The device operates in PWM modulation mode with a linearly adjustable duty cycle range of 0~100%. The LM2596SX/LM2596HV integrates a fixed-frequency oscillator and frequency compensation module, requiring minimal external components for a simple implementation. Additional features include enable with hysteresis, over-temperature protection, overcurrent protection, and hiccup overcurrent protection. When secondary overcurrent protection is triggered, the built-in frequency reduction function decreases the switching frequency from 150KHz to 50KHz.
Applications
- LCD monitors, LCD TVs
- Digital photo frames
- TV set-top boxes
- Modems
- Various telephony and networking equipment
Key features
- Input voltage range 4.5V to 40V, 60V for HV models
- Regulated output options: 3.3V, 5V, 12V, and adjustable output version with adjustment range 1.23V to 37V, 57V for HV models
- Duty cycle adjustable range 0~100%
- Minimum saturation voltage drop 1.5V
- 150KHz fixed operating frequency
- 3A fixed current output capability
- ON_OFF hysteresis switching function
- Built-in over-temperature protection and overcurrent protection
- Built-in frequency compensation
- High efficiency, line regulation, and load regulation
