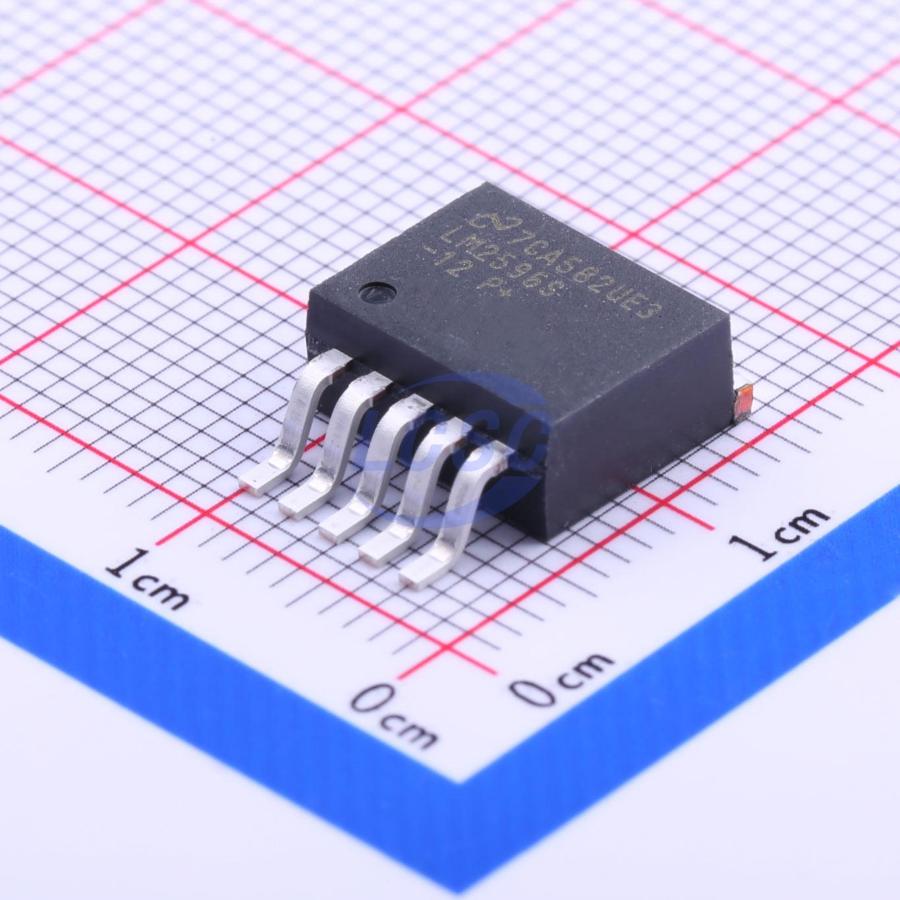

LM2596SX-12/NOPB

The LM2596 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 3A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5V, 12V, and an adjustable output version. Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation, and a fixed-frequency oscillator. The LM2596 series operates at a switching frequency of 150 kHz thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators. Available in a standard 5-lead TO-220 package with several different lead bend options, and a 5-lead TO-263 surface mount package. A standard series of inductors are available from several different manufacturers optimized for use with the LM2596 series. This feature greatly simplifies the design of switch-mode power supplies. Other features include a ensured ±4% tolerance on output voltage under specified input voltage and output load conditions, and ±15% on the oscillator frequency. External shutdown is included, featuring typically 80 μA standby current. Self protection features include a two stage frequency reducing current limit for the output switch and an over temperature shutdown for complete protection under fault conditions.

Applications

• Simple High-Efficiency Step-Down (Buck) Regulator
• On-Card Switching Regulators
• Positive to Negative Converter

Key features

• 3.3V, 5V, 12V, and Adjustable Output Versions
• Adjustable Version Output Voltage Range, 1.2V to 37V ±4% Max Over Line and Load Conditions
• Available in TO-220 and TO-263 Packages
• Ensured 3A Output Load Current
• Input Voltage Range Up to 40V
• Requires Only 4 External Components
• Excellent Line and Load Regulation Specifications
• 150 kHz Fixed Frequency Internal Oscillator
• TTL Shutdown Capability
• Low Power Standby Mode, I₀ Typically 80 μA
• High Efficiency
• Uses Readily Available Standard Inductors
• Thermal Shutdown and Current Limit Protection
