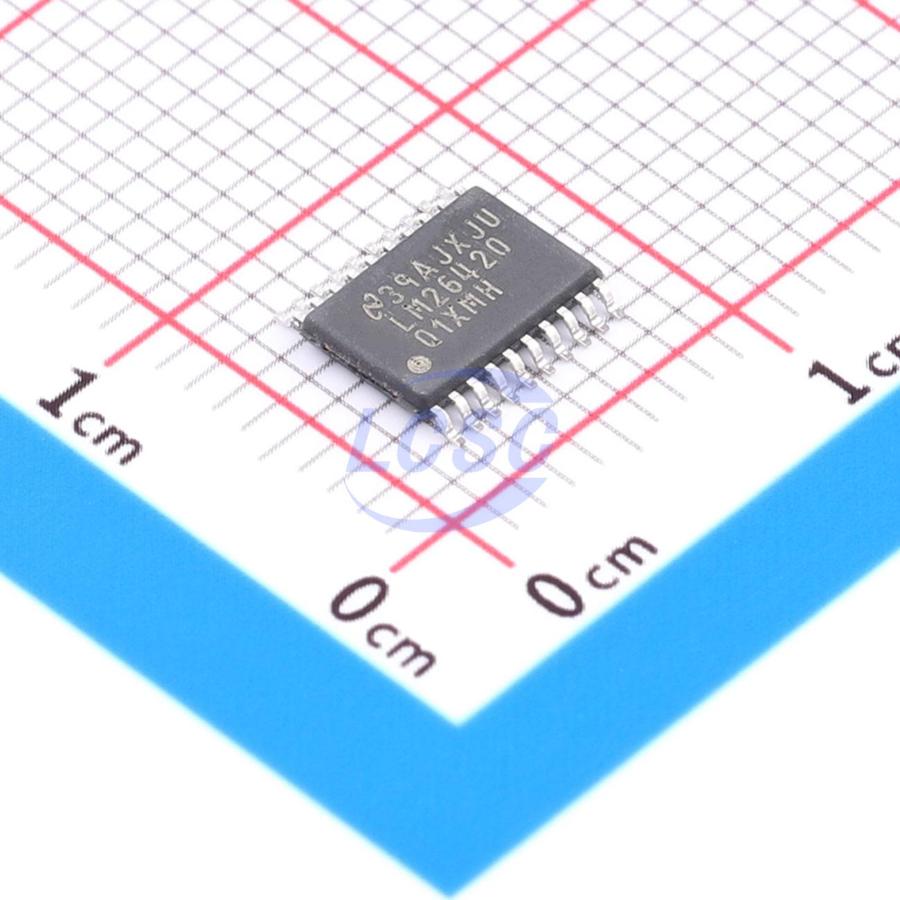

LM26420Q1XMHX/NOPB

The LM26420-Q1 regulator is a monolithic high-efficiency dual PWM step-down DC/DC converter. Using best-in-class BiCMOS technology with internal 75mΩ PMOS high-side switches and internal 50mΩ NMOS low-side switches to drive two 2A loads, the device achieves optimal power density. World-class control circuitry enables on-times as low as 30ns, supporting excellent high-frequency conversion with minimum output voltages as low as 0.8V across the entire 3V to 5.5V input operating range. Despite operating at high frequencies, efficiencies up to 93% are easily achieved. External shutdown capability provides ultra-low standby current. The LM26420-Q1 leverages current-mode control and internal compensation to deliver high-performance regulation across a wide range of operating conditions. With a guaranteed switching frequency greater than 2MHz, the LM26420-Q1 is suitable for automotive applications without causing interference in the AM band.

Applications

• Automotive head units and instrument clusters
• ADAS camera systems
• Automotive radar systems
• Highly integrated POL power supplies

Key features

• Meets automotive application requirements with the following AEC Q100 qualified results:
• Device temperature grade 0 (Q0): -40°C to +150°C ambient operating temperature range
• Device temperature grade 1 (Q1): -40°C to +125°C ambient operating temperature range
• Meets CISPR25 Class 5 conducted emissions standard
• Input voltage range: 3V to 5.5V
• Output voltage range: 0.8V to 4.5V
• 2A output current per regulator
• 2.2MHz fixed switching frequency
• 0.8V, 1.5% internal voltage reference
• Internal soft-start
• Independent power-good and precision enable functions for each output
• Current mode, PWM operation
• Thermal shutdown
• Overvoltage protection
• Startup into pre-biased output
• Load regulators 180° out of phase
• Use LM26420-Q1 with WEBENCH Power Designer to create a custom design
