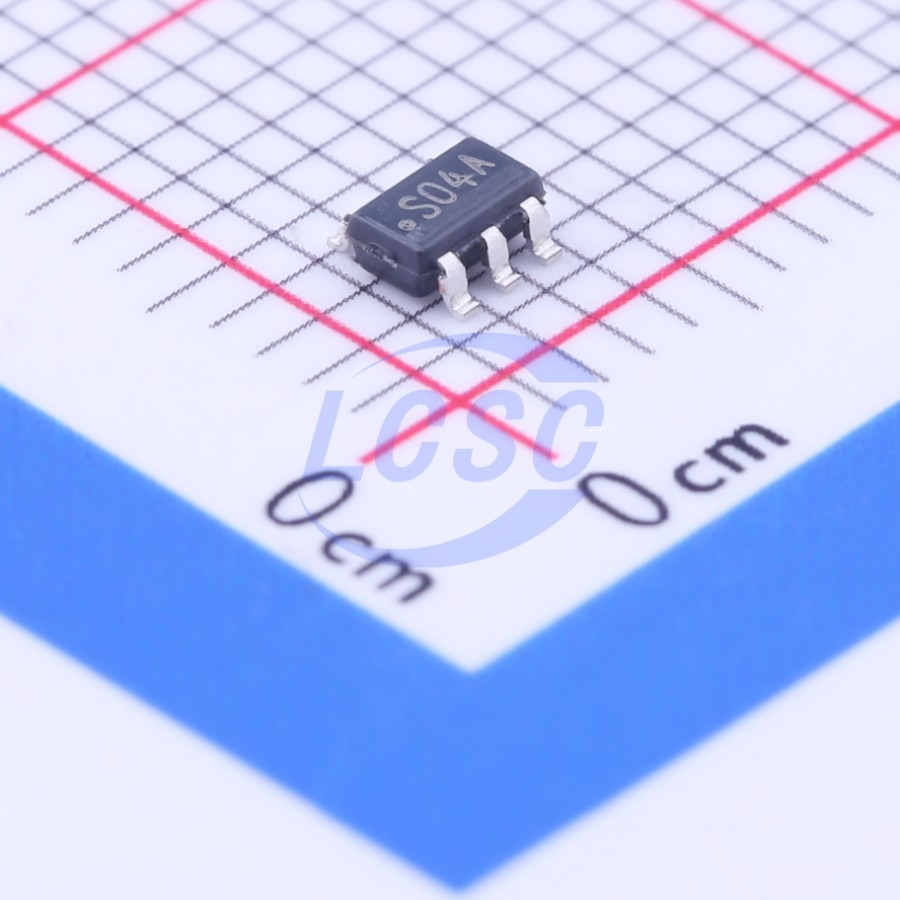

LM2665M6X/NOPB

80kHz 40mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-6ROHS3 CompliantActive

Switched Capacitor Voltage Converter

Manufacturer: TI
Manufacturer part #: LM2665M6X/NOPB
Store part #: C201725
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,775 in stock

#C201725

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹50.91	₹50.91
10+	₹39.81	₹398.10
30+	₹35.03	₹1,050.90
100+	₹29.16	₹2,916.00
500+	₹26.33	₹13,165.00
1,000+	₹24.81	₹24,810.00

Quantity (min 1)

1 × ₹50.91

₹50.91

excl. GST

₹60.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LM2665M6X/NOPB

₹50.91 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 80kHz
Function: boost converter;Step-down
Features: Cascade support;Low-power standby
Operating Voltage: 2.5V~5.5V
Output Current: 40mA
Energy Efficiency: 90%
Quiescent Current: 1.25mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.057 g

Overview

The LM2665 CMOS charge-pump voltage converter operates as a voltage doubler for an input voltage in the range of 2.5 V to 5.5 V. Two low-cost capacitors and a diode (needed during start-up) are used in this circuit to provide up to 40 mA of output current. The LM2665 can also work as a voltage divider to split a voltage in the range of 1.8 V to 11 V in half. The LM2665 operates at 160 kHz oscillator frequency to reduce output resistance and voltage ripple. With an operating current of only 650 μA (operating efficiency greater than 90% with most loads) and 1-μA typical shutdown current, the LM2665 provides ideal performance for battery powered systems.
